ZVW50R-AHXEBQ (2015)
Toyota Prius
Production
Nov 2015
-
Dec 2018
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

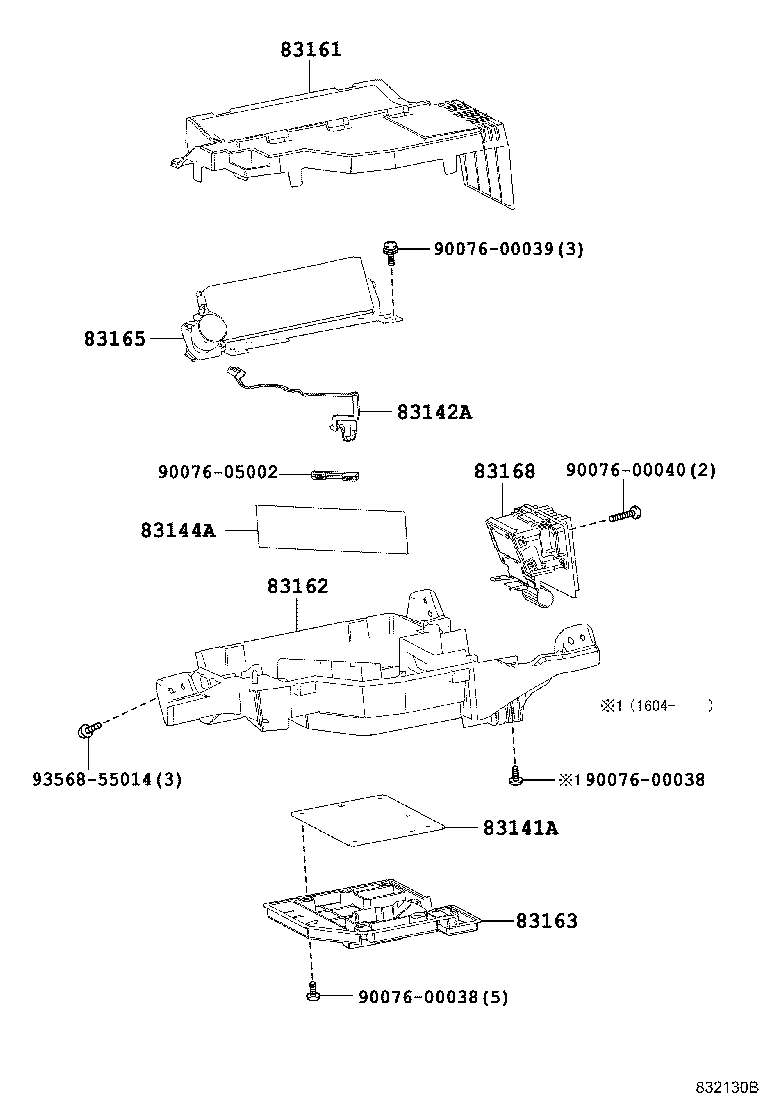

ILLUST NO. 2 OF 2(1511- )ARL
Click highlighted areas on diagram
HEAD-UP DISPLAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83141A - COMPUTER, COMBINATION METER MIRROR | ||||
| 83141-47080 |
ZVW50..ARL HEAD UP DISPLAY-WITH |
1 | ||
| 83141-47180 |
ZVW50..ARL HEAD UP DISPLAY-WITH |
1 | ||
| 83141-47081 |
ZVW50..ARL HEAD UP DISPLAY-WITH |
1 | ||
| 83142A - WIRE, COMBINATION METER | ||||
| 83142-47080 |
ZVW50..ARL HEAD UP DISPLAY-WITH |
1 | ||
| 83144A - MIRROR, COMBINATION METER | ||||
| 83144-47070 |
ZVW50 HEAD UP DISPLAY-WITH |
1 | ||
| 83161 - CASE, COMBINATION METER MIRROR, NO.1 | ||||
| 83161-47080 |
ZVW50..ARL HEAD UP DISPLAY-WITH |
1 | ||
| 83161-47081 |
ZVW50..ARL HEAD UP DISPLAY-WITH |
1 | ||
| 83162 - CASE, COMBINATION METER MIRROR, NO.2 | ||||
| 83162-47080 |
ZVW50..ARL HEAD UP DISPLAY-WITH |
1 | ||
| 83163 - PLATE, COMBINATION METER MIRROR, NO.1 | ||||
| 83164-47080 |
ZVW50..ARL HEAD UP DISPLAY-WITH |
1 | ||
| 83165 - MIRROR, COMBINATION METER, NO.2 | ||||
| 83165-47080 |
ZVW50..ARL HEAD UP DISPLAY-WITH |
1 | ||
| 83168 - DISPLAY, COMBINATION | ||||
| 83168-47070 |
ZVW50 HEAD UP DISPLAY-WITH |
1 | ||
| Common parts | ||||
| 90076-00038 | ||||
| 90076-00039 | ||||
| 90076-00040 | ||||
| 90076-05002 | ||||
| 93568-55014 | ||||

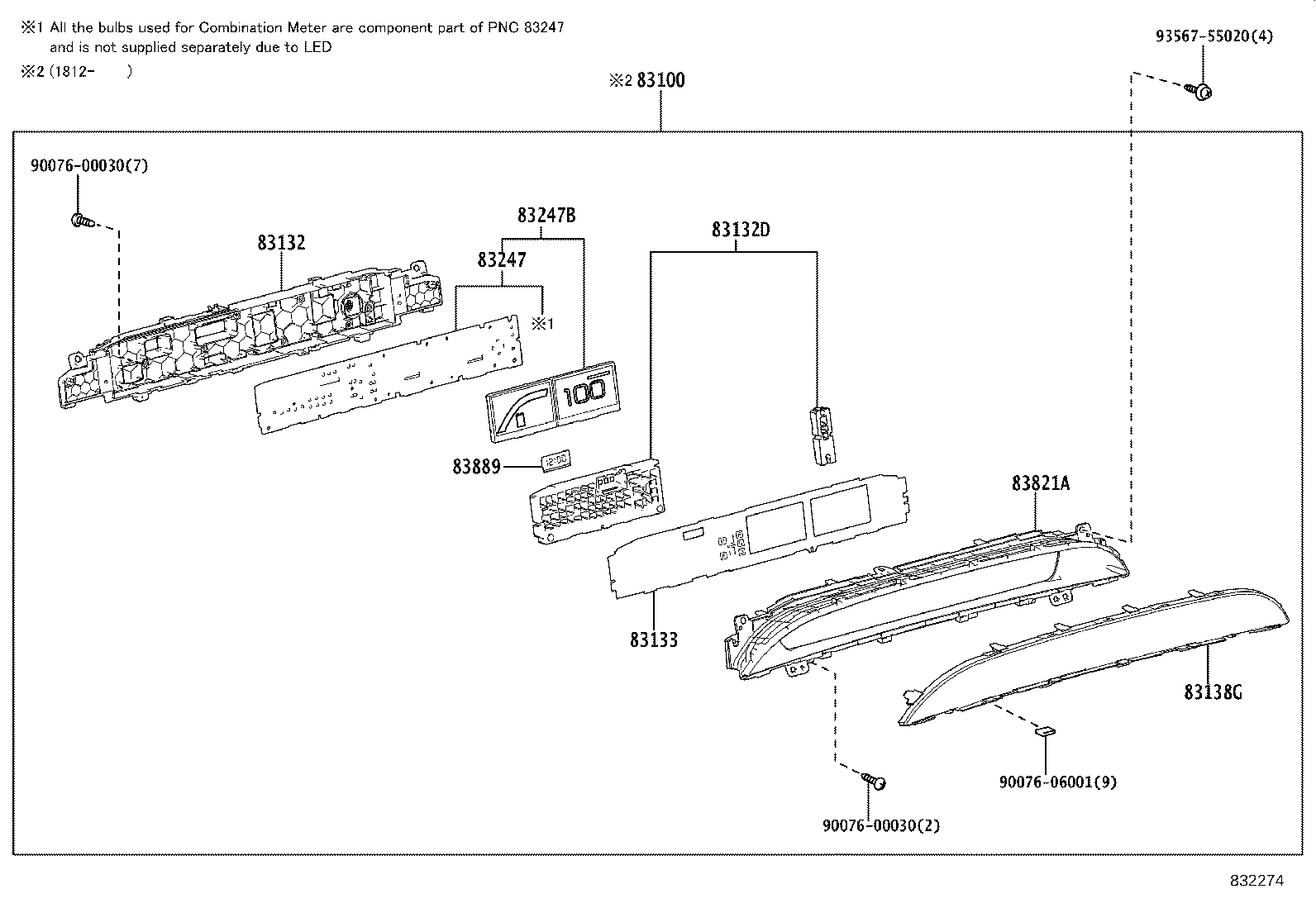

ILLUST NO. 1 OF 2(1511- )ARL
Click highlighted areas on diagram
COMBINATION METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83841-47L00 |
ZVW50..ARL |
1 | ||
| 83132D - CASE, COMBINATION METER, NO.2 | ||||
| 83842-47L00 |
ZVW50..ARL |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-47S00 |
ZVW50..ARL |
1 | ||
| 83811-47L90 |
ZVW50..ARL |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-47L70 |
ZVW50 |
1 | ||
| 83852-47L00 |
ZVW50 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-47Q40 |
ZVW50..ARL |
1 | ||
| 83861-47L90 |
ZVW50..ARL |
1 | ||
| 83861-47L91 |
ZVW50..ARL |
1 | ||
| 83861-47S00 |
ZVW50..ARL |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83862-47Q40 |
ZVW50..ARL |
1 | ||
| 83862-47L90 |
ZVW50..ARL |
1 | ||
| 83862-47S00 |
ZVW50..ARL |
1 | ||
| 83862-47L91 |
ZVW50..ARL |
1 | ||
| 83821A - COVER, COMBINATION METER, NO.1 | ||||
| 83821-47L00 |
ZVW50..ARL |
1 | ||
| 83889 - MULTI-DISPLAY, COMBINATION METER | ||||
| 83889-62010 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90076-00030 | ||||
| 90076-06001 | ||||
| 93567-55020 | ||||
