ZVW50R-AHXEBQ (2015)
Toyota Prius
Production
Nov 2015
-
Dec 2018
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1511-1812)

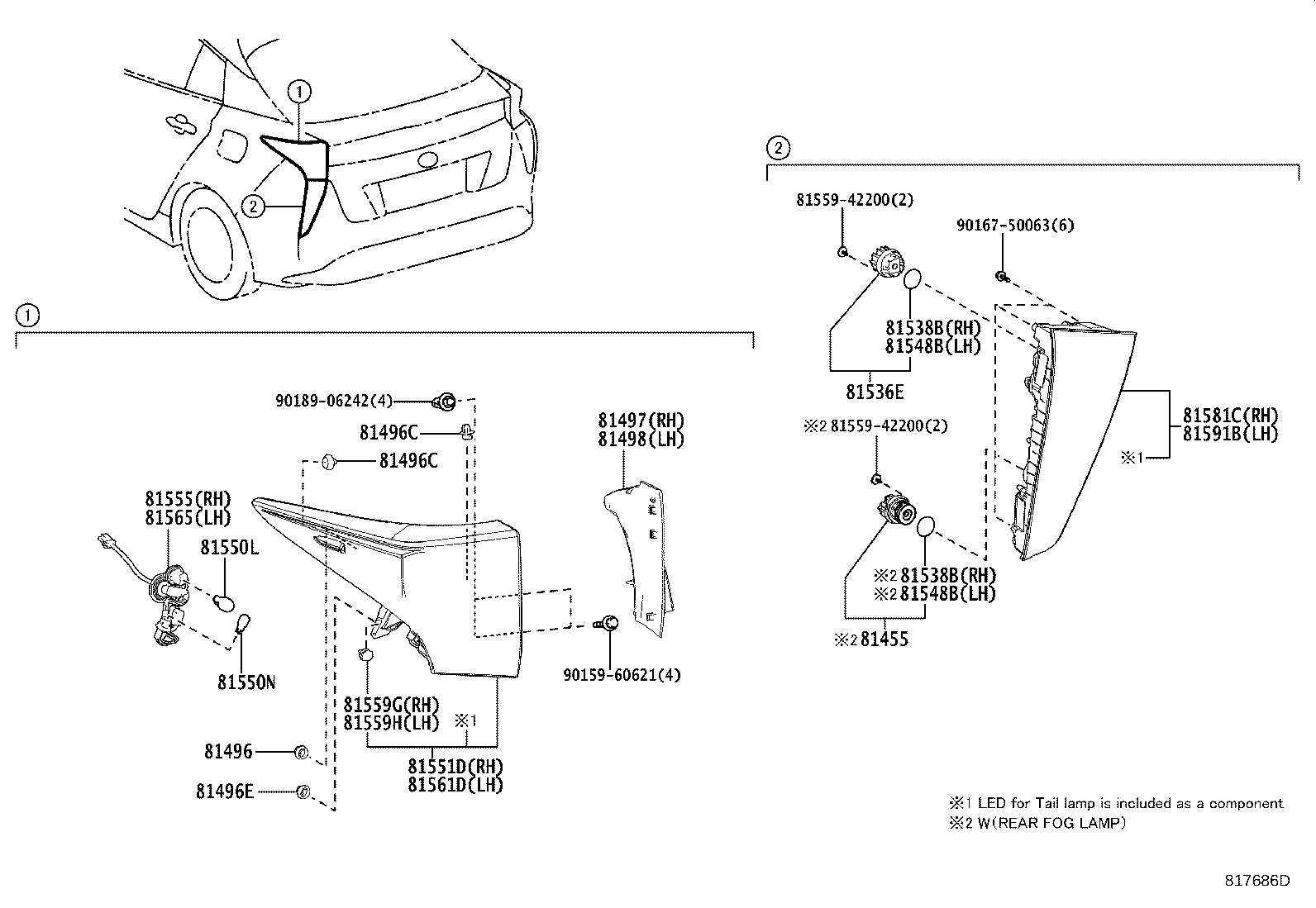

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
ZVW50 |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-60010 |
ZVW50 WHITE |
4 | ||
| 81496-48010 |
ZVW50 YELLOW |
4 | ||
| 81496-60010 |
ZVW50 |
4 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-60010 |
ZVW50 WHITE |
4 | ||
| 81496-48010 |
ZVW50 YELLOW |
4 | ||
| 81496-60010 |
ZVW50 |
4 | ||
| 81496E - GUIDE, REAR COMBINATION LAMP, NO.3 | ||||
| 76817-26040 |
ZVW50 |
2 | ||
| 81496-52020 |
ZVW50 |
2 | ||
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-47020 |
ZVW50 |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81498-47020 |
ZVW50 |
1 | ||
| 81536E - LED, STOP LAMP | ||||
| 81536-42200 |
ZVW50 |
2 | ||
| 81538B - GASKET, REAR COMBINATION LAMP, NO.3 RH | ||||
| 81538-42200 |
ZVW50..ARL |
1 | ||
| 81538B - GASKET, REAR COMBINATION LAMP, NO.3 RH | ||||
| 81538-42200 |
ZVW50..ARL |
1 | ||
| 81548B - GASKET, REAR COMBINATION LAMP, NO.3 LH | ||||
| 81538-42200 |
ZVW50 |
2 | ||
| 81548B - GASKET, REAR COMBINATION LAMP, NO.3 LH | ||||
| 81538-42200 |
ZVW50 |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
ZVW50 12V 21W,AMBER |
2 | ||
| 90981-15011 |
ZVW50 12V 21W,AMBER |
2 | ||
| 90981-15011 |
ZVW50 12V 21W,AMBER |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
ZVW50 12V 16W |
2 | ||
| 90981-11059 |
ZVW50 12V 16W |
2 | ||
| 90981-11059 |
ZVW50 12V 16W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-47281 |
ZVW50 |
1 | ||
| 81551-47283 |
ZVW50 |
1 | ||
| 81551-47280 |
ZVW50 |
1 | ||
| 81551-47282 |
ZVW50 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-47290 |
ZVW50 |
1 | ||
| 81559G - CLIP, RR COMBINATION LAMP, RH | ||||
| 81559-47291 |
ZVW50 |
1 | ||
| 81559-47290 |
ZVW50 |
1 | ||
| 81559H - CLIP, RR COMBINATION LAMP, LH | ||||
| 81559-47291 |
ZVW50 |
1 | ||
| 81559-47290 |
ZVW50 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-47152 |
ZVW50 |
1 | ||
| 81561-47151 |
ZVW50 |
1 | ||
| 81561-47153 |
ZVW50 |
1 | ||
| 81561-47150 |
ZVW50 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-47290 |
ZVW50 |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-47020 |
ZVW50..ARL |
1 | ||
| 81581-47021 |
ZVW50..ARL |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-47020 |
ZVW50..ARL |
1 | ||
| 81591-47021 |
ZVW50..ARL |
1 | ||
| Common parts | ||||
| 81559-42200 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90189-06242 | ||||
