ZVW50R-AHXEBQ (2015)
Toyota Prius
Production
Nov 2015
-
Dec 2018
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1511-1812)

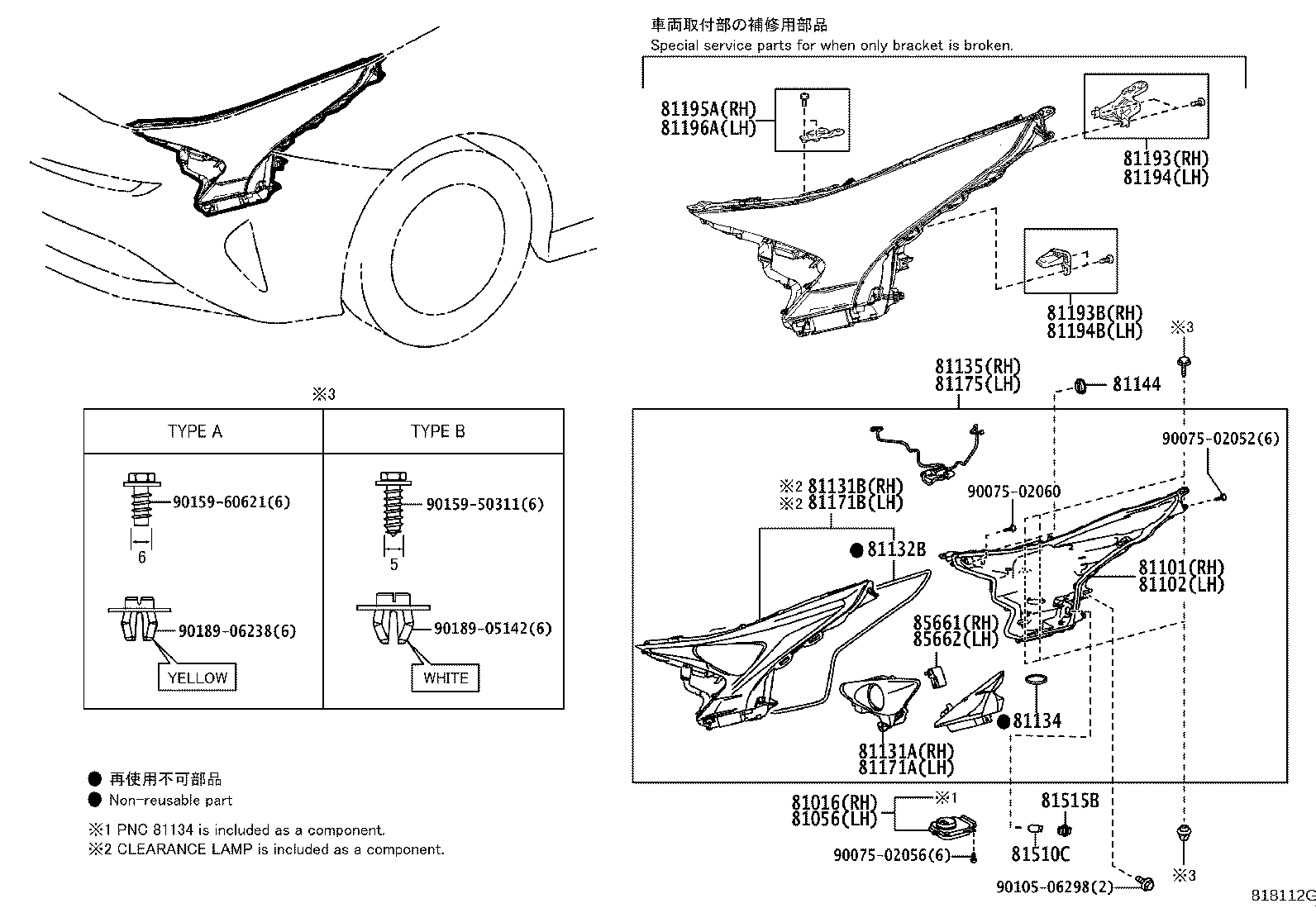

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81016 - COMPUTER SUB-ASSY, HEADLAMP, RH NO.1 | ||||
| 81016-47690 |
ZVW50 |
1 | ||
| 81056 - COMPUTER SUB-ASSY, HEADLAMP, LH NO.1 | ||||
| 81056-47690 |
ZVW50 |
1 | ||
| 81101 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 8111B-47690 |
ZVW50..ARL |
1 | ||
| 81102 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 8115B-47690 |
ZVW50..ARL |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-47690 |
ZVW50..ARL |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-47690 |
ZVW50..ARL |
1 | ||
| 81131-47691 |
ZVW50..ARL |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-48C30 |
ZVW50 |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
ZVW50 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-47690 |
ZVW50..ARL |
1 | ||
| 81145-47691 |
ZVW50..ARL |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81135-22B70 |
ZVW50 |
2 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-47690 |
ZVW50..ARL |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-47691 |
ZVW50..ARL |
1 | ||
| 81171-47690 |
ZVW50..ARL |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-47690 |
ZVW50..ARL |
1 | ||
| 81185-47691 |
ZVW50..ARL |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-47110 |
ZVW50 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-47120 |
ZVW50 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-47110 |
ZVW50 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-47120 |
ZVW50 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-47140 |
ZVW50 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-47130 |
ZVW50 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ZVW50 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ZVW50 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-48050 |
ZVW50 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-48050 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90075-02052 | ||||
| 90075-02056 | ||||
| 90075-02060 | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90159-60621 | ||||
| 90189-05142 | ||||
| 90189-06238 | ||||
