ZVW50R-AHXEBQ (2015)
Toyota Prius
Production
Nov 2015
-
Dec 2018
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

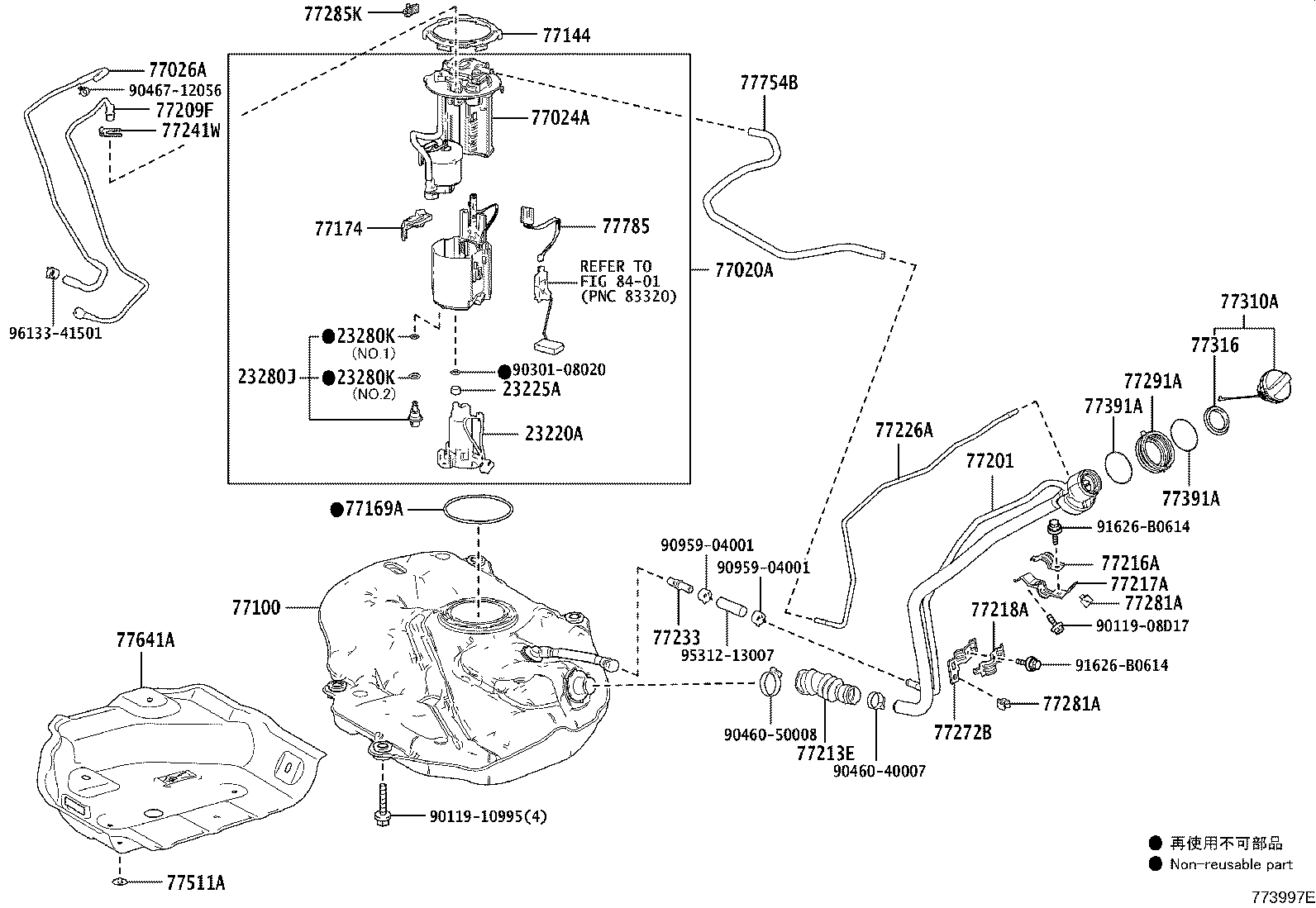

ILLUST NO. 1 OF 3(1511-1812)
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-21211 |
2ZRFXE..ZVW50 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2ZRFXE..ZVW50 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ZRFXE..ZVW50 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
2ZRFXE..ZVW50 NO.2:REFER ILLUST. |
1 | ||
| 90301-04013 |
2ZRFXE..ZVW50 NO.1:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
2ZRFXE..ZVW50 NO.2:REFER ILLUST. |
1 | ||
| 90301-04013 |
2ZRFXE..ZVW50 NO.1:REFER ILLUST. |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-47140 |
ZVW50 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-47080 |
ZVW50 |
1 | ||
| 77024-47080 |
ZVW50 |
1 | ||
| 77024-10030 |
ZVW50 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-47040 |
ZVW50 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-47220 |
ZVW50 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
ZVW50 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
ZVW50 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-75010 |
ZVW50 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-47190 |
ZVW50 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-47100 |
ZVW50 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-47120 |
ZVW50 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-47090 |
ZVW50 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-47110 |
ZVW50 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-47080 |
ZVW50 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-47120 |
ZVW50 |
1 | ||
| 77233 - JOINT, FUEL HOSE | ||||
| 77233-60020 |
ZVW50 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZVW50 |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-47050 |
ZVW50 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-30110 |
ZVW50 |
2 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-30110 |
ZVW50 |
2 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
ZVW50 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-47040 |
ZVW50 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
ZVW50 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ZVW50 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ZVW50 |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ZVW50 |
2 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
ZVW50 |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-47070 |
ZVW50 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-47090 |
ZVW50 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12010 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90119-10995 | ||||
| 90301-08020 | ||||
| 90460-40007 | ||||
| 90460-50008 | ||||
| 90467-12056 | ||||
| 90959-04001 | ||||
| 91626-B0614 | ||||
| 95312-13007 | ||||
| 96133-41501 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(1511- )
Click highlighted areas on diagram
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-47040 |
ZVW50 |
1 | ||
| 77030-47041 |
ZVW50 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-47050 |
ZVW50 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
ZVW50 |
1 | ||
| 77366-47020 |
ZVW50 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-33040 |
ZVW50 |
1 | ||
| 77377-78010 |
ZVW50 |
1 | ||
| 77379 - SPACER, FUEL INLET BOX COVER, NO.2 | ||||
| 77379-47010 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90269-06017 | ||||
| 90541-06070 | ||||
ILLUST NO. 2 OF 3(1511- )
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-47110 |
ZVW50 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-47120 |
ZVW50 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-78040 |
ZVW50 |
2 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-78040 |
ZVW50 |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-78040 |
ZVW50 |
3 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-78050 |
ZVW50 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-47020 |
ZVW50..ARL |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
