ZVW50R-AHXEBQ (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511-1812)

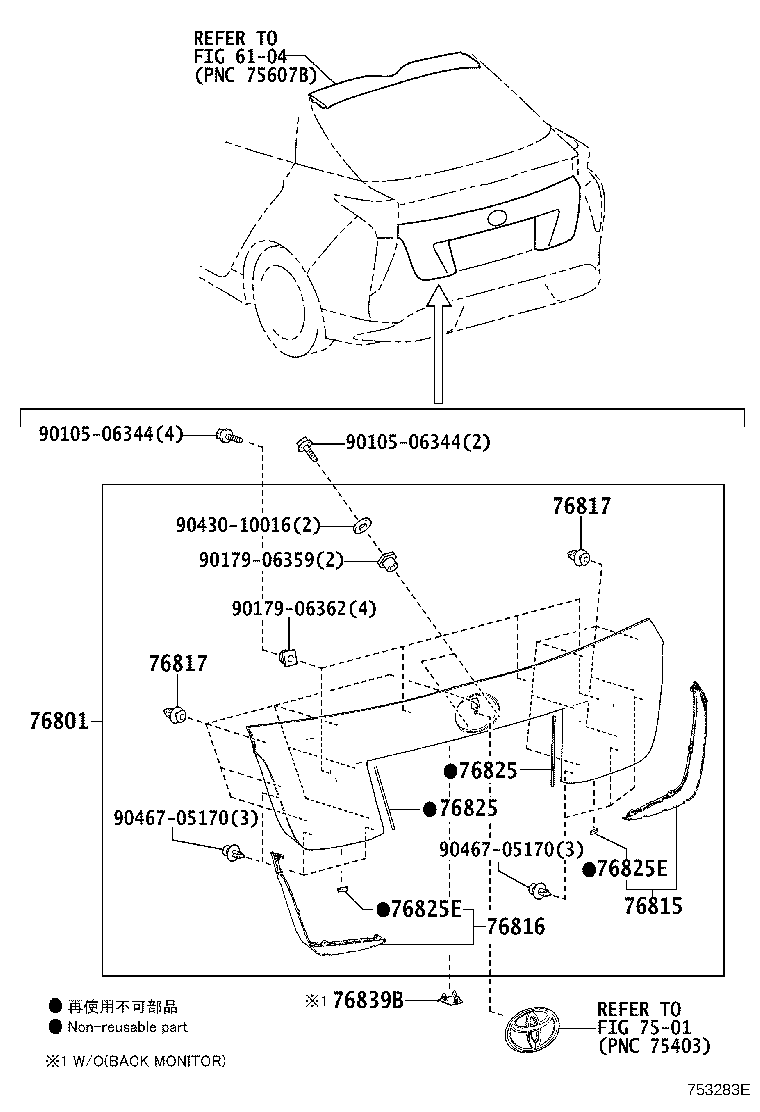

Click highlighted areas on diagram

diagram 6104 7501 76801 76815 76816 76817 76817 76825 76825 76825E 76825E 76839B 9010506344 9010506344 9017906359 9017906362 9043010016 9046705170 9046705170
Part # Description Qty Price
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-47110A1

ZVW50..ARL

WHITE PEARL CS.,070

 1
76801-47110A0

ZVW50..ARL

BACK MONITOR-WITH(GUIDE),SUPER WHITE 2,040

 1
76801-47110D0

ZVW50..ARL

EMOTIONAL RED,3T7

 1
76801-47110A0

ZVW50..ARL

SUPER WHITE 2,040

 1
76801-47110C0

ZVW50..ARL

ATTITUDE BLACK MC.,218

 1
76801-47110C0

ZVW50..ARL

BACK MONITOR-WITH(GUIDE),ATTITUDE BLACK MC.,218

 1
76801-47110A1

ZVW50..ARL

BACK MONITOR-WITH(GUIDE),WHITE PEARL CS.,070

 1
76801-47110B1

ZVW50..ARL

GRAY ME.,1G3

 1
76801-47110B0

ZVW50..ARL

SILVER ME.,1F7

 1
76801-47110B1

ZVW50..ARL

BACK MONITOR-WITH(GUIDE),GRAY ME.,1G3

 1
76801-47110G0

ZVW50..ARL

THERMO-TECT LIME GREEN,6W7

 1
76801-47110D0

ZVW50..ARL

BACK MONITOR-WITH(GUIDE),EMOTIONAL RED,3T7

 1
76801-47110G0

ZVW50..ARL

BACK MONITOR-WITH(GUIDE),THERMO-TECT LIME GREEN,6W7

 1
76801-47110E0

ZVW50..ARL

BACK MONITOR-WITH(GUIDE),STEEL BLONDE,4X1

 1
76801-47110H0

ZVW50..ARL

BACK MONITOR-WITH(GUIDE),FROSTY GREEN MC.,781

 1
76801-47110J0

ZVW50..ARL

DK.BLUE M.M.,8W7

 1
76801-47110J0

ZVW50..ARL

BACK MONITOR-WITH(GUIDE),DK.BLUE M.M.,8W7

 1
76801-47110E0

ZVW50..ARL

STEEL BLONDE,4X1

 1
76801-47110B0

ZVW50..ARL

BACK MONITOR-WITH(GUIDE),SILVER ME.,1F7

 1
76815 - MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER RH
76815-47010

ZVW50

 1
76816 - MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER LH
76816-47010

ZVW50

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
75867-33040

ZVW50

 13
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
75867-33040

ZVW50

 13
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-47010

ZVW50

 2
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825-47010

ZVW50

 2
76825E - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2
76822-47011

ZVW50

 2
76822-47010

ZVW50

 2
76825E - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2
76822-47011

ZVW50

 2
76822-47010

ZVW50

 2
76839B - COVER, BACK DOOR GARNISH
76839-47010

ZVW50..ARL

 1
Common parts
90105-06344
90179-06359
90179-06362
90430-10016
90467-05170
Linked diagrams
6104
7501
