ZVW50R-AHXEBQ (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

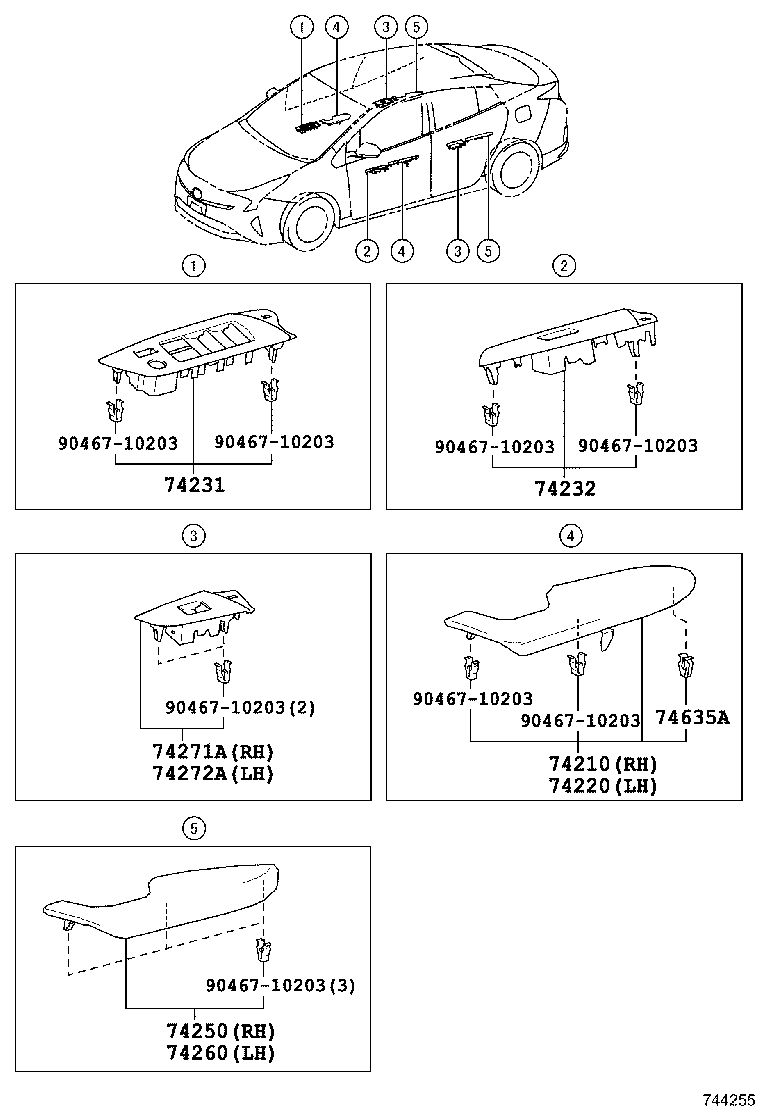

ILLUST NO. 1 OF 2(1511- )ARL

Click highlighted areas on diagram

ARMREST

diagram 74210 74220 74231 74232 74250 74260 74271A 74272A 74635A 9046710203 9046710203 9046710203 9046710203 9046710203 9046710203 9046710203 9046710203
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-47010C0

ZVW50

BLACK,TRIM1#,2#

 1
74220 - ARMREST ASSY, FRONT, LH
74220-47010C0

ZVW50

BLACK,TRIM1#,2#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-47220

ZVW50..ARL

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-47180

ZVW50..ARL

 1
74250 - ARMREST ASSY, REAR RH
74250-47010C0

ZVW50

BLACK,TRIM1#,2#

 1
74260 - ARMREST ASSY, REAR LH
74260-47010C0

ZVW50

BLACK,TRIM1#,2#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-47120

ZVW50

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-47120

ZVW50

 1
74635A - CLIP
90467-08227

ZVW50

 2
Common parts
90467-10203

ILLUST NO. 2 OF 2(1511- )

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74325 74348B 74348C 74610A 74610A 74612 74612 74612 74612 74612 74612 74612 74612 74620C 74630E 74811B 9322915020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-47340B0

ZVW50..ARL

COOL GRAY,TRIM1#,2#

 1
74320 - VISOR ASSY, LH
74320-47340B0

ZVW50..ARL

COOL GRAY,TRIM1#,2#

 1
74325 - COVER, VISOR BRACKET
74317-60020B3

ZVW50

COOL GRAY,TRIM1#,2#

 2
74348B - HOLDER, VISOR, RH
74348-47010B0

ZVW50

COOL GRAY,TRIM1#,2#

 1
74348C - HOLDER, VISOR, LH
74348-47010B0

ZVW50

COOL GRAY,TRIM1#,2#

 1
74610A - GRIP SUB-ASSY, ASSIST
74610-47040B0

ZVW50

COOL GRAY,TRIM1#,2#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-47040B0

ZVW50

COOL GRAY,TRIM1#,2#

 2
74612 - COVER, ASSIST GRIP
74612-47070B0

ZVW50

COOL GRAY,TRIM1#,2#

 8
74612 - COVER, ASSIST GRIP
74612-47070B0

ZVW50

COOL GRAY,TRIM1#,2#

 8
74612 - COVER, ASSIST GRIP
74612-47070B0

ZVW50

COOL GRAY,TRIM1#,2#

 8
74612 - COVER, ASSIST GRIP
74612-47070B0

ZVW50

COOL GRAY,TRIM1#,2#

 8
74612 - COVER, ASSIST GRIP
74612-47070B0

ZVW50

COOL GRAY,TRIM1#,2#

 8
74612 - COVER, ASSIST GRIP
74612-47070B0

ZVW50

COOL GRAY,TRIM1#,2#

 8
74612 - COVER, ASSIST GRIP
74612-47070B0

ZVW50

COOL GRAY,TRIM1#,2#

 8
74612 - COVER, ASSIST GRIP
74612-47070B0

ZVW50

COOL GRAY,TRIM1#,2#

 8
74620C - GRIP ASSY, ASSIST, REAR RH
74610-47050B0

ZVW50

COOL GRAY,TRIM1#,2#

 1
74630E - GRIP ASSY, ASSIST, REAR LH
74610-47060B0

ZVW50

COOL GRAY,TRIM1#,2#

 1
74811B - HANDLE, DOOR PULL
74811-47020C0

ZVW50

BLACK,TRIM1#,2#

 1
Common parts
93229-15020
