ZVW50R-AHXEBQ (2015)
Toyota Prius
(1511- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

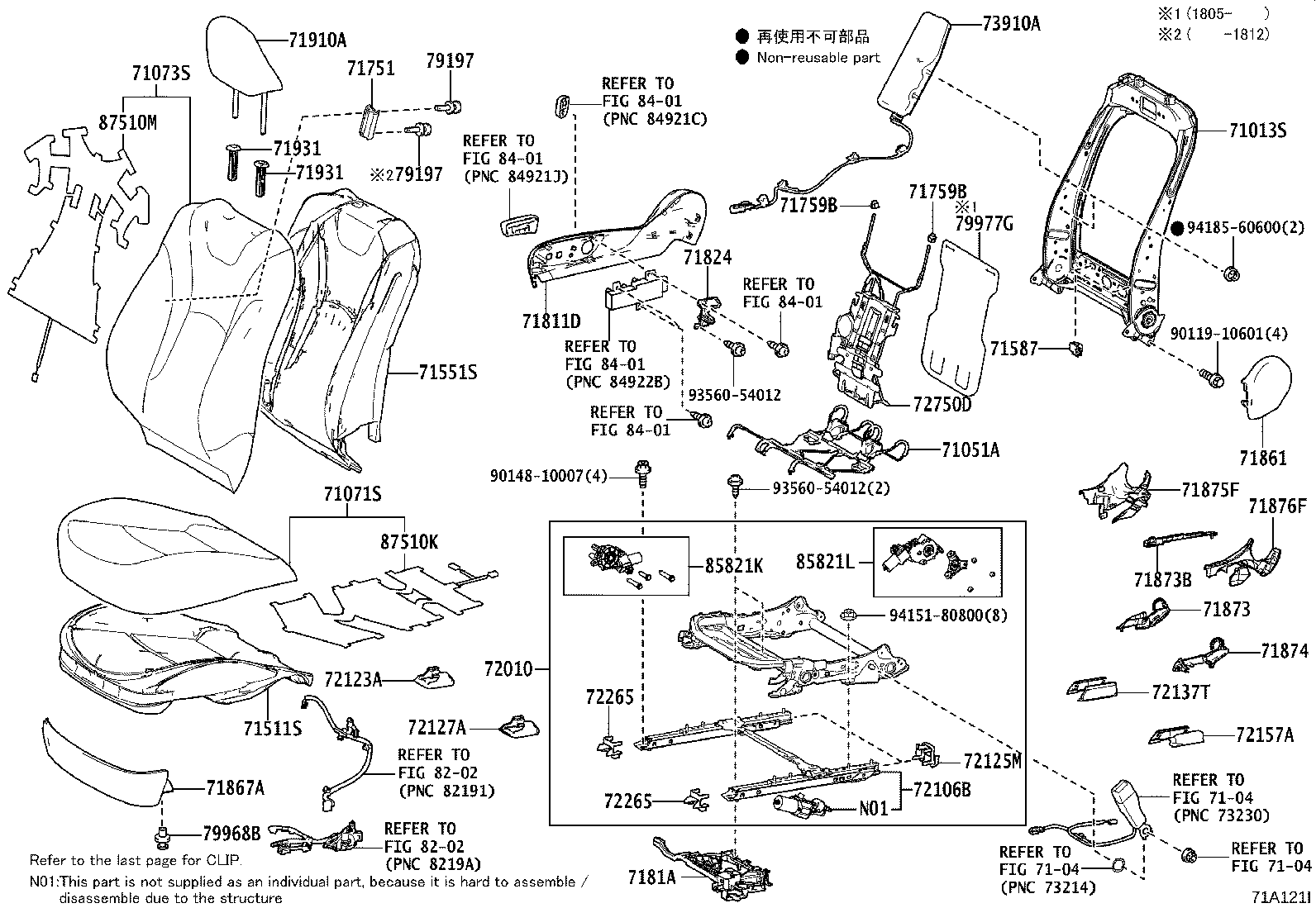

(1511- )ARL
RH, POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-47130 |
ZVW50 |
1 | ||
| 71013-47150 |
ZVW50 |
1 | ||
| 71013-47160 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 71013-47140 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
ZVW50 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-47A41C3 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM2# |
1 | ||
| 71071-47A40B2 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY,TRIM1# |
1 | ||
| 71071-47A41B2 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY,TRIM1# |
1 | ||
| 71071-47A40C3 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM2# |
1 | ||
| 71071-47A60C3 |
ZVW50..ARL BLACK,TRIM2# |
1 | ||
| 71071-47A60B3 |
ZVW50..ARL COOL GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-47880C4 |
ZVW50 BLACK,TRIM2# |
1 | ||
| 71073-47880B4 |
ZVW50 COOL GRAY,TRIM1# |
1 | ||
| 71073-47760B9 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY/TURQUOISE,TRIM1# |
1 | ||
| 71073-47760P3 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY/TURQUIOSE,TRIM1# |
1 | ||
| 71073-47760C8 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71073-4776022 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-47250 |
ZVW50..ARL |
1 | ||
| 71511-47180 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-47250 |
ZVW50 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ZVW50 |
4 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-47050 |
ZVW50 |
2 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
ZVW50 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
ZVW50 |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-47160C0 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
1 | ||
| 71811-47170C0 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71811-47160C1 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
1 | ||
| 71811-47170C1 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-33010 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 7181A-47020 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 7181A-47010 |
ZVW50 |
1 | ||
| 71824 - BRACKET, FRONT SEAT SIDE, NO.1 RH | ||||
| 72713-47010 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070C0 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71861-47070C1 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-47010C0 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
1 | ||
| 71867-47010C1 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47070 |
ZVW50..ARL |
1 | ||
| 71873B - SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1 | ||||
| 71873-47090 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-47080 |
ZVW50..ARL |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47040C1 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71875-47040C0 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-47070C0 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71875-47070C1 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47440B1 |
ZVW50 COOL GRAY,TRIM1# |
2 | ||
| 71910-47460B1 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY,TRIM1# |
2 | ||
| 71910-47460C1 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM2# |
2 | ||
| 71910-47440C1 |
ZVW50 BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71930-47050B0 |
ZVW50 W(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71930-47050C0 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030C0 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030B0 |
ZVW50 W/O(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71931-47030C4 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71930-47050B0 |
ZVW50 W(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71930-47050C0 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030C0 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030B0 |
ZVW50 W/O(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71931-47030C4 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-47400 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 72010-47360 |
ZVW50..ARL |
1 | ||
| 72010-33640 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-47060 |
ZVW50 |
1 | ||
| 72125M - COVER, SEAT TRACK, UPPER NO.3 | ||||
| 72125-47010 |
ZVW50 |
2 | ||
| 72125-47020 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
2 | ||
| 72125-47020 |
ZVW50 OUTER |
1 | ||
| 72125-47010 |
ZVW50 INNER |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-47060 |
ZVW50 |
1 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
ZVW50 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-47080 |
ZVW50 |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
2 | ||
| 72265-47010 |
ZVW50 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
2 | ||
| 72265-47010 |
ZVW50 |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-47020 |
ZVW50..ARL |
1 | ||
| 72750-11020 |
ZVW50..ARL |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-47080 |
ZVW50 |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-47010 |
ZVW50 |
4 | ||
| 79197-47010 |
ZVW50 |
4 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-47010 |
ZVW50 |
4 | ||
| 79197-47010 |
ZVW50 |
4 | ||
| 79968B - CLIP | ||||
| 90467-07215 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 79977G - FELT, FRONT SEAT BACK, RH | ||||
| 79977-33030 |
ZVW50..ARL |
1 | ||
| 85821K - MOTOR ASSY, POWER SEAT TILT, RH | ||||
| 85801-47020 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 85821L - MOTOR ASSY, POWER SEAT LIFTER, RH | ||||
| 85801-47010 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-47170 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-47040 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 93560-54012 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

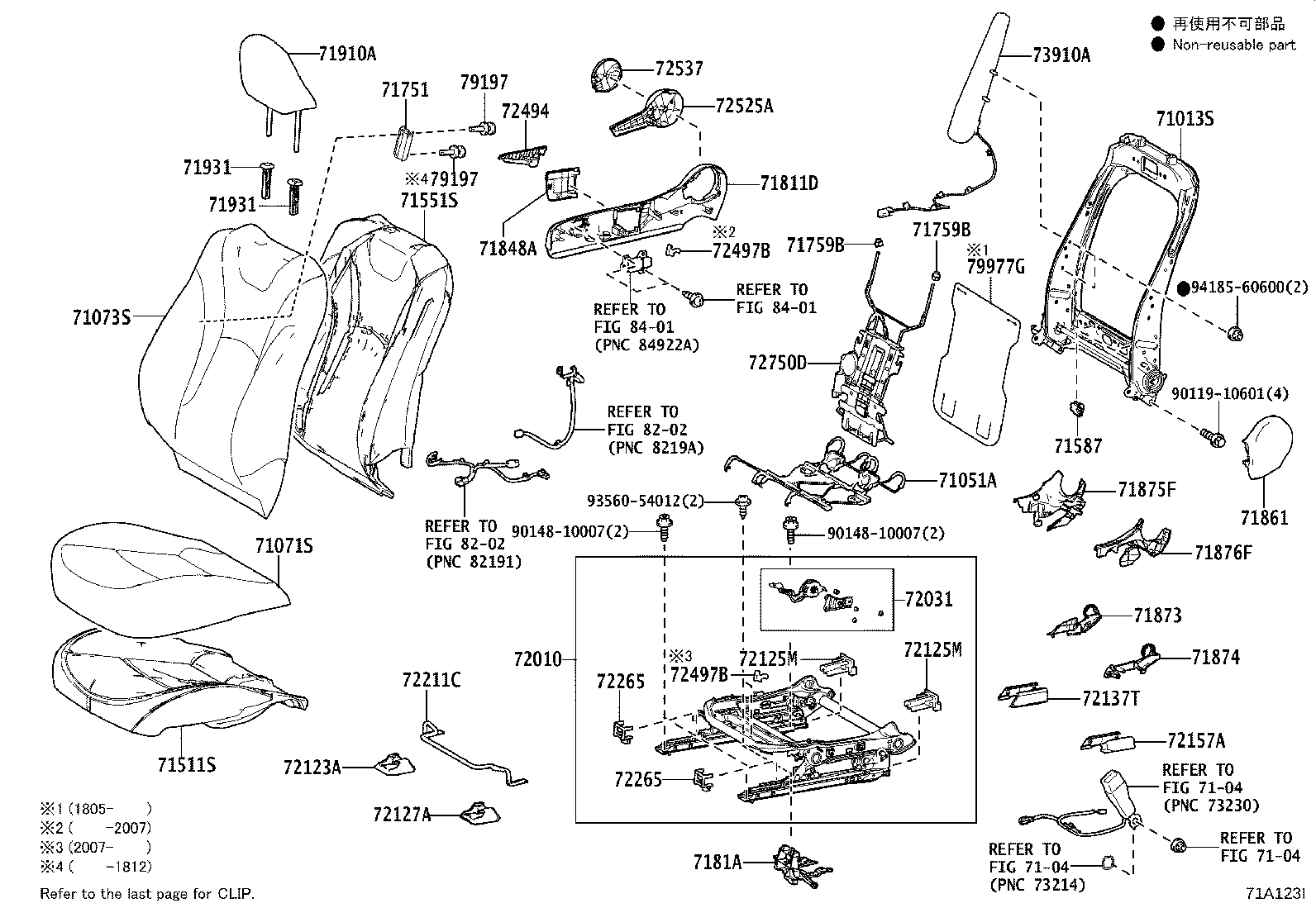

(1511- )ARL
RH, MANUAL 6-WAY SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-47130 |
ZVW50 |
1 | ||
| 71013-47150 |
ZVW50 |
1 | ||
| 71013-47160 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 71013-47140 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
ZVW50 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-47A41C3 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM2# |
1 | ||
| 71071-47A40B2 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY,TRIM1# |
1 | ||
| 71071-47A41B2 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY,TRIM1# |
1 | ||
| 71071-47A40C3 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM2# |
1 | ||
| 71071-47A60C3 |
ZVW50..ARL BLACK,TRIM2# |
1 | ||
| 71071-47A60B3 |
ZVW50..ARL COOL GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-47880C4 |
ZVW50 BLACK,TRIM2# |
1 | ||
| 71073-47880B4 |
ZVW50 COOL GRAY,TRIM1# |
1 | ||
| 71073-47760B9 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY/TURQUOISE,TRIM1# |
1 | ||
| 71073-47760P3 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY/TURQUIOSE,TRIM1# |
1 | ||
| 71073-47760C8 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71073-4776022 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-47250 |
ZVW50..ARL |
1 | ||
| 71511-47180 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-47250 |
ZVW50 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ZVW50 |
4 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-47050 |
ZVW50 |
2 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
ZVW50 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
ZVW50 |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-47160C0 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
1 | ||
| 71811-47170C0 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71811-47160C1 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
1 | ||
| 71811-47170C1 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-33010 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 7181A-47020 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 7181A-47010 |
ZVW50 |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47040C0 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71848-47040C1 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070C0 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71861-47070C1 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47070 |
ZVW50..ARL |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-47080 |
ZVW50..ARL |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47040C1 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71875-47040C0 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-47070C0 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71875-47070C1 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47440B1 |
ZVW50 COOL GRAY,TRIM1# |
2 | ||
| 71910-47460B1 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY,TRIM1# |
2 | ||
| 71910-47460C1 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM2# |
2 | ||
| 71910-47440C1 |
ZVW50 BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71930-47050B0 |
ZVW50 W(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71930-47050C0 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030C0 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030B0 |
ZVW50 W/O(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71931-47030C4 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71930-47050B0 |
ZVW50 W(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71930-47050C0 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030C0 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030B0 |
ZVW50 W/O(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71931-47030C4 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-47400 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 72010-47360 |
ZVW50..ARL |
1 | ||
| 72010-33640 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL | ||||
| 72443-47010 |
ZVW50..ARL |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-47060 |
ZVW50 |
1 | ||
| 72125M - COVER, SEAT TRACK, UPPER NO.3 | ||||
| 72125-47010 |
ZVW50 |
2 | ||
| 72125-47020 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
2 | ||
| 72125-47020 |
ZVW50 OUTER |
1 | ||
| 72125-47010 |
ZVW50 INNER |
1 | ||
| 72125M - COVER, SEAT TRACK, UPPER NO.3 | ||||
| 72125-47010 |
ZVW50 |
2 | ||
| 72125-47020 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
2 | ||
| 72125-47020 |
ZVW50 OUTER |
1 | ||
| 72125-47010 |
ZVW50 INNER |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-47060 |
ZVW50 |
1 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
ZVW50 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-47080 |
ZVW50 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47050 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 72211-47050 |
ZVW50 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
2 | ||
| 72265-47010 |
ZVW50 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
2 | ||
| 72265-47010 |
ZVW50 |
2 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-47030C0 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 72494-47030C1 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72498-47010 |
ZVW50..ARL |
1 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72498-47010 |
ZVW50..ARL |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47040C1 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 72525-47040C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 72551-47030C1 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 72551-47030C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-47020 |
ZVW50..ARL |
1 | ||
| 72750-11020 |
ZVW50..ARL |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-47080 |
ZVW50 |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-47010 |
ZVW50 |
4 | ||
| 79197-47010 |
ZVW50 |
4 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-47010 |
ZVW50 |
4 | ||
| 79197-47010 |
ZVW50 |
4 | ||
| 79977G - FELT, FRONT SEAT BACK, RH | ||||
| 79977-33030 |
ZVW50..ARL |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

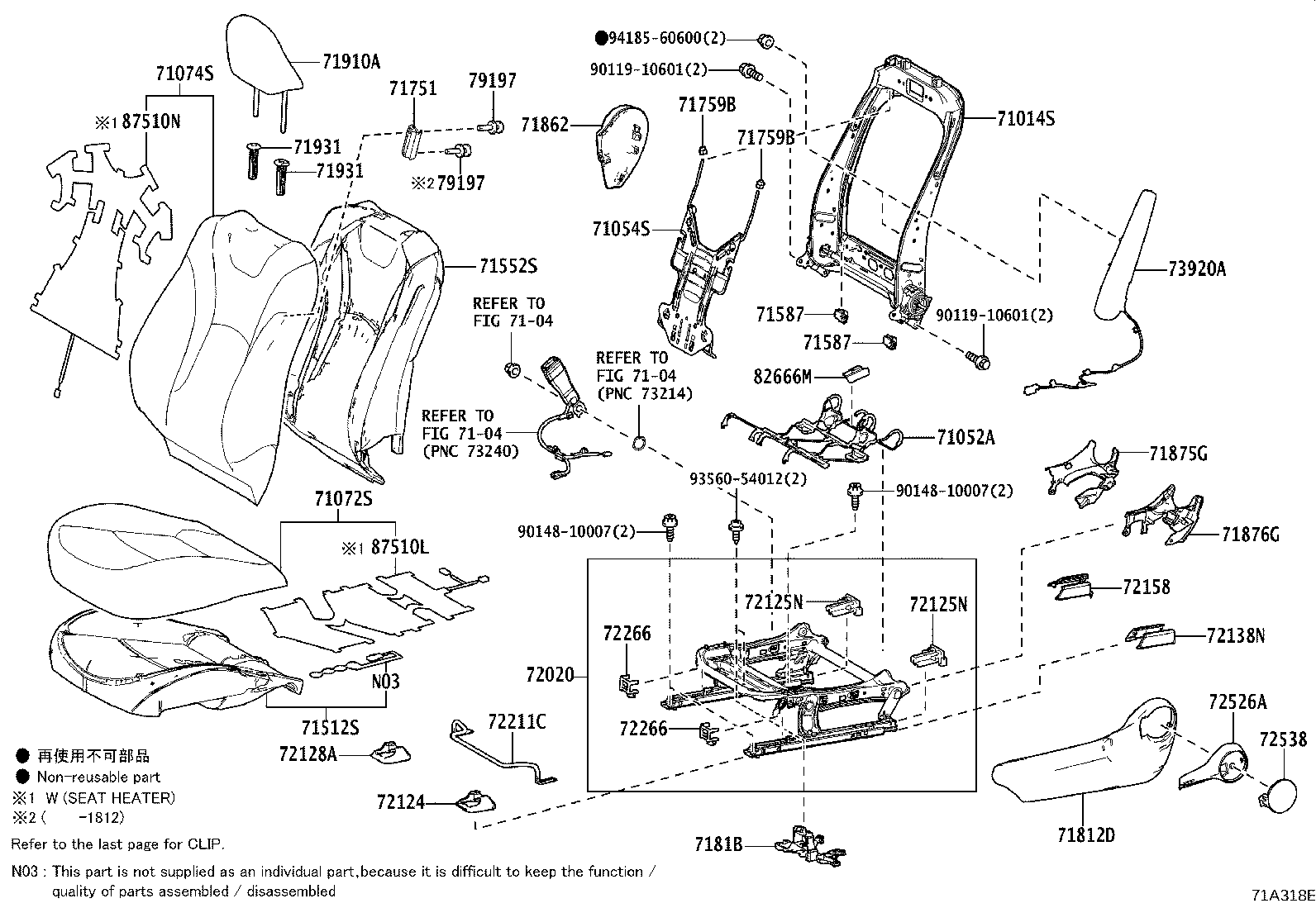

(1511- )ARL
LH, MANUAL 4-WAY SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-47150 |
ZVW50 |
1 | ||
| 71014-47130 |
ZVW50 |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
ZVW50 |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-47050 |
ZVW50..ARL |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-47860C3 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM2# |
1 | ||
| 71072-47A30C3 |
ZVW50..ARL BLACK,TRIM2# |
1 | ||
| 71072-47860B2 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY,TRIM1# |
1 | ||
| 71072-47A30B3 |
ZVW50..ARL COOL GRAY,TRIM1# |
1 | ||
| 71072-47861B2 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY,TRIM1# |
1 | ||
| 71072-47861C3 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-47630C8 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71074-4763022 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71074-47760C4 |
ZVW50 BLACK,TRIM2# |
1 | ||
| 71074-47630B9 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY/TURQUOISE,TRIM1# |
1 | ||
| 71074-47760B4 |
ZVW50 COOL GRAY,TRIM1# |
1 | ||
| 71074-47630P3 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY/TURQUIOSE,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-47040 |
ZVW50..ARL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-47220 |
ZVW50 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ZVW50 |
4 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
ZVW50 |
4 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-47050 |
ZVW50 |
2 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
ZVW50 |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-50040 |
ZVW50 |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-47140C0 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71812-47140C1 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-47010 |
ZVW50 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47100C1 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71862-47100C0 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-47090C0 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71876-47090C1 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-47070C0 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71876-47070C1 |
ZVW50..ARL BLACK,TRIM1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-47440B1 |
ZVW50 COOL GRAY,TRIM1# |
2 | ||
| 71910-47460B1 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY,TRIM1# |
2 | ||
| 71910-47460C1 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM2# |
2 | ||
| 71910-47440C1 |
ZVW50 BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71930-47050B0 |
ZVW50 W(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71930-47050C0 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030C0 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030B0 |
ZVW50 W/O(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71931-47030C4 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71930-47050B0 |
ZVW50 W(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71930-47050C0 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030C0 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030B0 |
ZVW50 W/O(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71931-47030C4 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-47380 |
ZVW50..ARL |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-47060 |
ZVW50 |
1 | ||
| 72125N - COVER, SEAT TRACK, UPPER NO.4 | ||||
| 72125-47010 |
ZVW50 |
2 | ||
| 72125-47010 |
ZVW50 INNER |
1 | ||
| 72125-47020 |
ZVW50 OUTER |
1 | ||
| 72125N - COVER, SEAT TRACK, UPPER NO.4 | ||||
| 72125-47010 |
ZVW50 |
2 | ||
| 72125-47010 |
ZVW50 INNER |
1 | ||
| 72125-47020 |
ZVW50 OUTER |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-47060 |
ZVW50 |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-47060 |
ZVW50 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-47080 |
ZVW50 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47050 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 72211-47050 |
ZVW50 |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47010 |
ZVW50 |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47010 |
ZVW50 |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47040C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 72526-47040C1 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 72551-47030C1 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 72551-47030C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-47110 |
ZVW50 |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-47010 |
ZVW50 |
4 | ||
| 79197-47010 |
ZVW50 |
4 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-47010 |
ZVW50 |
4 | ||
| 79197-47010 |
ZVW50 |
4 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-47630 |
ZVW50 |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-47190 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-47040 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
