ZVW50R-AHXEBQ (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )ARL

Click highlighted areas on diagram

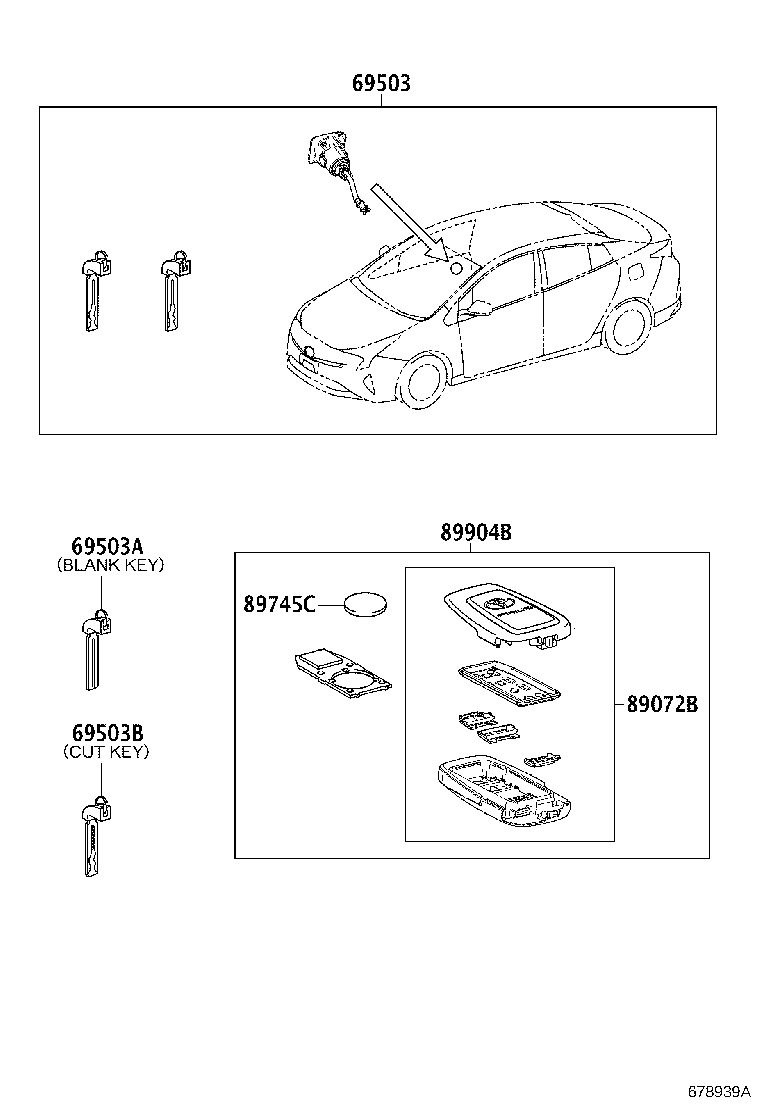

diagram 69503 69503A 69503B 89072B 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-47240

ZVW50..ARL

 1
69503A - KEY, BLANK
69515-47030

ZVW50

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-47020

ZVW50

MASTER KEY,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-47190

ZVW50..ARL

 2
89745C - BATTERY, TRANSMITTER
89745-45010

ZVW50..ARL

CR2032

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-47530

ZVW50..ARL

 2
