ZVW50R-AHXEBQ (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511-1812)ARL

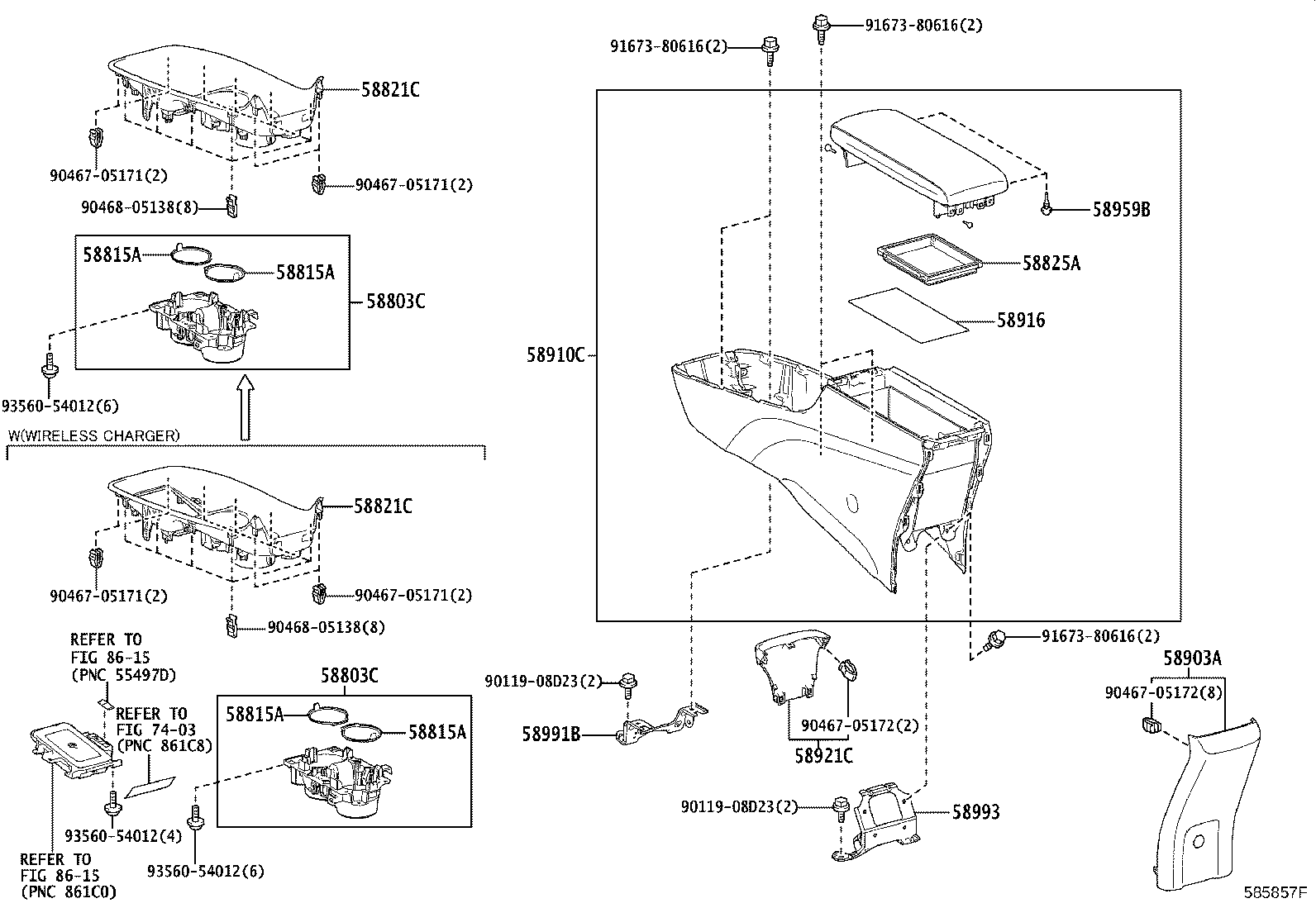

Click highlighted areas on diagram

diagram 58803C 58803C 58815A 58815A 58815A 58815A 58821C 58821C 58825A 58903A 58910C 58916 58921C 58959B 58991B 58993 7403 8615 8615 9011908D23 9011908D23 9046705171 9046705171 9046705171 9046705171 9046705172 9046705172 9046805138 9046805138 9167380616 9167380616 9167380616 9356054012 9356054012 9356054012
Part # Description Qty Price
58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER
58803-47010

ZVW50

 1
58803-47011A0

ZVW50..ARL

WHITE,TRIM1#

 1
58803-47011C0

ZVW50..ARL

BLACK METALLC,TRIM2#

 1
58803-47011A0

ZVW50

WHITE

 1
58803-47010

ZVW50

WIRELESS CHARGER-WITH

 1
58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER
58803-47010

ZVW50

 1
58803-47011A0

ZVW50..ARL

WHITE,TRIM1#

 1
58803-47011C0

ZVW50..ARL

BLACK METALLC,TRIM2#

 1
58803-47011A0

ZVW50

WHITE

 1
58803-47010

ZVW50

WIRELESS CHARGER-WITH

 1
58815A - CARPET, CONSOLE BOX
58815-47080

ZVW50

 2
58815A - CARPET, CONSOLE BOX
58815-47080

ZVW50

 2
58815A - CARPET, CONSOLE BOX
58815-47080

ZVW50

 2
58815A - CARPET, CONSOLE BOX
58815-47080

ZVW50

 2
58821C - PANEL, CONSOLE, UPPER
58821-47041A0

ZVW50..ARL

WIRELESS CHARGER-WITH,WHITE,TRIM1#

 1
58821-47040

ZVW50

WIRELESS CHARGER-WITH

 1
58821-47041A0

ZVW50

WIRELESS CHARGER-WITH,WHITE

 1
58821-47050

ZVW50

 1
58821-47051A0

ZVW50

WHITE

 1
58821-47051C0

ZVW50..ARL

BLACK METALLC,TRIM2#

 1
58821-47051A0

ZVW50..ARL

WHITE,TRIM1#

 1
58821-47041C0

ZVW50..ARL

WIRELESS CHARGER-WITH,BLACK METALLC,TRIM2#

 1
58821C - PANEL, CONSOLE, UPPER
58821-47041A0

ZVW50..ARL

WIRELESS CHARGER-WITH,WHITE,TRIM1#

 1
58821-47040

ZVW50

WIRELESS CHARGER-WITH

 1
58821-47041A0

ZVW50

WIRELESS CHARGER-WITH,WHITE

 1
58821-47050

ZVW50

 1
58821-47051A0

ZVW50

WHITE

 1
58821-47051C0

ZVW50..ARL

BLACK METALLC,TRIM2#

 1
58821-47051A0

ZVW50..ARL

WHITE,TRIM1#

 1
58821-47041C0

ZVW50..ARL

WIRELESS CHARGER-WITH,BLACK METALLC,TRIM2#

 1
58825A - POCKET, CONSOLE BOX
58825-47060

ZVW50

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-47050C0

ZVW50

BLACK,TRIM1#,2#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-47030C2

ZVW50..ARL

SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2#

 1
58910-47040C2

ZVW50..ARL

BLACK,TRIM1#,2#

 1
58916 - MAT, BOX BOTTOM
58916-47020

ZVW50

 1
58921C - PLATE, BOX, UPPER NO.1
58921-47020

ZVW50

 1
58921-47021A0

ZVW50..ARL

WHITE,TRIM1#

 1
58921-47021C0

ZVW50..ARL

BLACK METALLC,TRIM2#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-03078

ZVW50

 2
58991B - BRACKET, CONSOLE BOX MOUNTING, FRONT
58991-47020

ZVW50

 1
58993 - BRACKET, CONSOLE BOX MOUNTING, REAR
58996-47030

ZVW50

 1
Common parts
90119-08D23
90467-05171
90467-05172
90468-05138
91673-80616
93560-54012
Linked diagrams
7403
8615
