ZVW50R-AHXEBQ (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )ARL

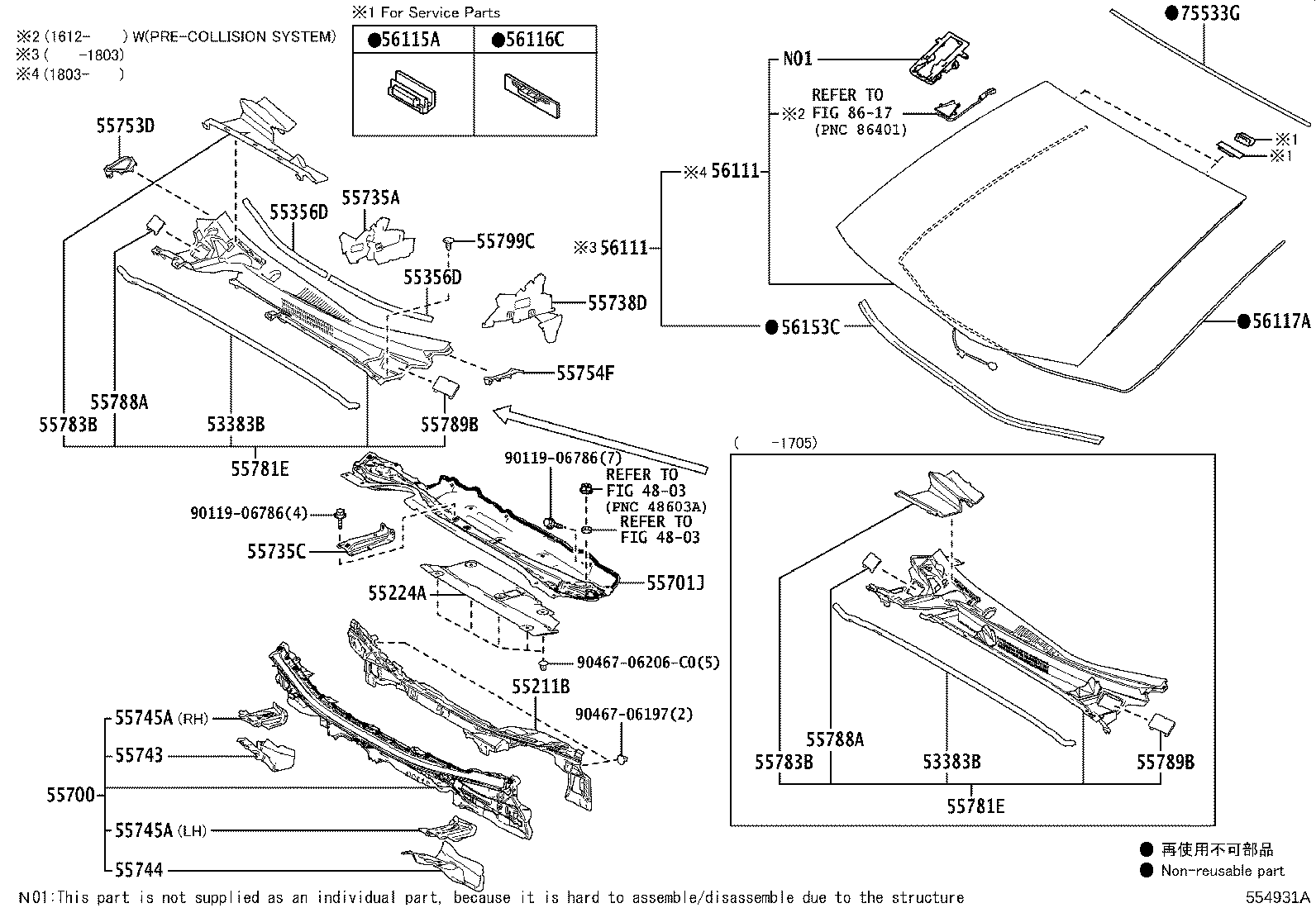

Click highlighted areas on diagram

diagram 4803 4803 53383B 53383B 55211B 55224A 55356D 55356D 55700 55701J 55735A 55735C 55738D 55743 55744 55745A 55745A 55753D 55754F 55781E 55781E 55783B 55783B 55788A 55788A 55789B 55789B 55799C 56111 56111 56115A 56116C 56117A 56153C 75533G 8617 9011906786 9011906786 9046706197 9046706206C0
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-47150

ZVW50

 1
53383B - SEAL, HOOD TO COWL TOP
53383-47150

ZVW50

 1
55211B - SILENCER, FRONT PANEL
55211-47090

ZVW50..ARL

 1
55224A - INSULATOR, DASH PANEL, OUTER NO.2
55224-47040

ZVW50..ARL

 1
55356D - CUSHION, INSTRUMENT PANEL, NO.2
55356-47110

ZVW50

 2
55356D - CUSHION, INSTRUMENT PANEL, NO.2
55356-47110

ZVW50

 2
55700 - PANEL ASSY, FRONT
55700-47240

ZVW50..ARL

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-47070

ZVW50..ARL

 1
55735A - PLATE, WATER GUARD, LH
55734-47090

ZVW50..ARL

 1
55735C - REINFORCEMENT, COWL BODY MOUNTING, RH
55735-47030

ZVW50..ARL

 1
55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55738-47030

ZVW50..ARL

 1
55743 - PANEL, COWL TOP OUTSIDE CORNER, RH
55743-47030

ZVW50..ARL

 1
55744 - PANEL, COWL TOP OUTSIDE CORNER, LH
55744-47020

ZVW50..ARL

 1
55745A - REINFORCEMENT, COWL TOP, INNER
55745-47030

ZVW50

RH

 1
55746-47030

ZVW50

LH

 1
55745A - REINFORCEMENT, COWL TOP, INNER
55745-47030

ZVW50

RH

 1
55746-47030

ZVW50

LH

 1
55753D - SHIELD, COWL WATER EXTRACT, RH
55753-47090

ZVW50

 1
55754F - SHIELD, COWL WATER EXTRACT, LH
55754-47070

ZVW50

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-47230

ZVW50..ARL

 1
55708-47260

ZVW50..ARL

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-47230

ZVW50..ARL

 1
55708-47260

ZVW50..ARL

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-47130

ZVW50..ARL

 1
55783-47140

ZVW50..ARL

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-47130

ZVW50..ARL

 1
55783-47140

ZVW50..ARL

 1
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-47150

ZVW50..ARL

 1
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-47150

ZVW50..ARL

 1
55789B - PROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2
55789-47070

ZVW50..ARL

 1
55789B - PROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2
55789-47070

ZVW50..ARL

 1
55799C - CLIP, COWL TOP VENTILATOR LOUVER
90467-09242

ZVW50

 2
56111 - GLASS, WINDSHIELD
56101-4F973

ZVW50..ARL

 1
56101-4E957

ZVW50..ARL

 1
56101-4E994

ZVW50..ARL

PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH

 1
56101-4E960

ZVW50..ARL

PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH

 1
56101-4F976

ZVW50..ARL

PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH

 1
56111 - GLASS, WINDSHIELD
56101-4F973

ZVW50..ARL

 1
56101-4E957

ZVW50..ARL

 1
56101-4E994

ZVW50..ARL

PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH

 1
56101-4E960

ZVW50..ARL

PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH

 1
56101-4F976

ZVW50..ARL

PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

ZVW50

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

ZVW50

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-64010

ZVW50..ARL

*D,L=2947,PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH

 1
56117-64010

ZVW50

*D,L=2947

 1
56153C - MOULDING, FRONT WINDOW, INNER CENTER
56153-47020

ZVW50..ARL

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75533-47070

ZVW50

 1
Common parts
90119-06786
90467-06197
90467-06206C0
Linked diagrams
4803
8617
