ZVW50R-AHXEBQ (2015)
Toyota Prius
Production
Nov 2015
-
Dec 2018
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1511- )ARL

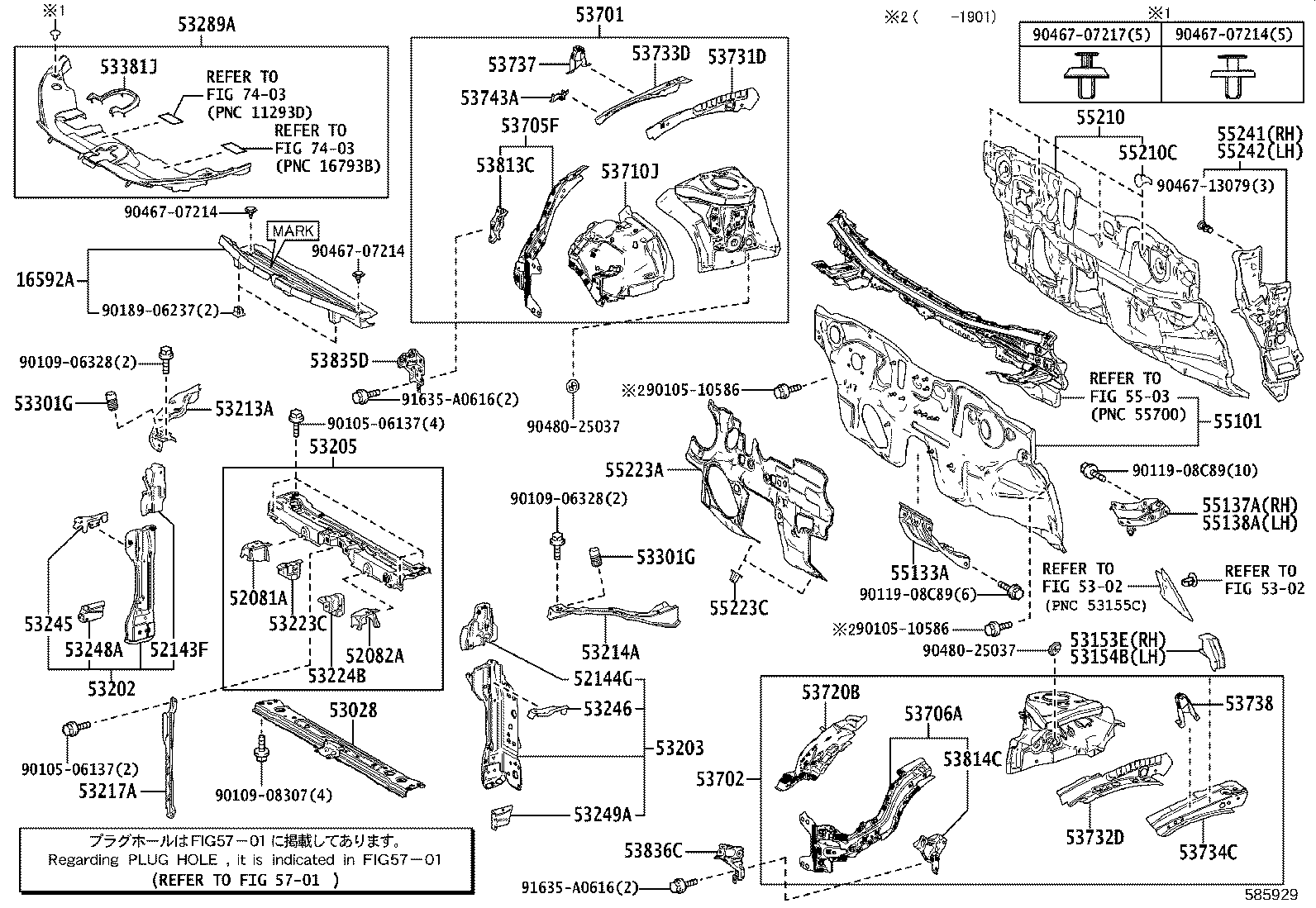

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-37020 |
2ZRFXE..ZVW50..ARL MARK 16592-37020 |
1 | ||
| 16592-37120 |
2ZRFXE..ZVW50..ARL MARK 16592-37120 |
1 | ||
| 52081A - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52137-47010 |
ZVW50 |
1 | ||
| 52082A - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52138-47010 |
ZVW50 |
1 | ||
| 52143F - BRACKET, FRONT BUMPER SIDE, RH | ||||
| 52143-47030 |
ZVW50 |
1 | ||
| 52144G - BRACKET, FRONT BUMPER SIDE, LH | ||||
| 52144-47050 |
ZVW50 |
1 | ||
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-47010 |
ZVW50 |
1 | ||
| 53028-12050 |
ZVW50 |
1 | ||
| 53153E - GUIDE, FRONT SIDE AIR | ||||
| 53153-47010 |
ZVW50 |
1 | ||
| 53154B - GUIDE, FRONT SIDE AIR, NO.2 | ||||
| 53154-47010 |
ZVW50 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-47901 |
ZVW50 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-47901 |
ZVW50 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-47900 |
ZVW50 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-47050 |
ZVW50 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-47050 |
ZVW50 |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-47030 |
ZVW50 |
1 | ||
| 53217-47031 |
ZVW50 |
1 | ||
| 53223C - BRACKET, RADIATOR GRILLE MOUNTING, RH | ||||
| 53223-47020 |
ZVW50 |
1 | ||
| 53224B - BRACKET, RADIATOR GRILLE MOUNTING, LH | ||||
| 53224-47010 |
ZVW50 |
1 | ||
| 53245 - BRACKET, HEADLAMP, RH | ||||
| 53245-47010 |
ZVW50 |
1 | ||
| 53246 - BRACKET, HEADLAMP, LH | ||||
| 53246-47010 |
ZVW50 |
1 | ||
| 53248A - BRACKET, RADIATOR SHUTTER, RH | ||||
| 53248-47010 |
ZVW50 |
1 | ||
| 53249A - BRACKET, RADIATOR SHUTTER, LH | ||||
| 53249-47010 |
ZVW50 |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-47072 |
ZVW50..ARL |
1 | ||
| 53289-47070 |
ZVW50..ARL |
1 | ||
| 53289-47071 |
ZVW50..ARL |
1 | ||
| 53289-47050 |
ZVW50 |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15037 |
ZVW50 |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15037 |
ZVW50 |
2 | ||
| 53381J - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-47050 |
ZVW50 |
1 | ||
| 53381-47051 |
ZVW50 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-47110 |
ZVW50 |
1 | ||
| 53701-47111 |
ZVW50 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-47101 |
ZVW50 |
1 | ||
| 53702-47100 |
ZVW50 |
1 | ||
| 53705F - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-47901 |
ZVW50 |
1 | ||
| 53705-47900 |
ZVW50 |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-47901 |
ZVW50 |
1 | ||
| 53706-47900 |
ZVW50 |
1 | ||
| 53710J - APRON ASSY, FRONT FENDER, RH | ||||
| 53710-47060 |
ZVW50 |
1 | ||
| 53720B - APRON ASSY, FRONT FENDER, LH | ||||
| 53720-47070 |
ZVW50 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-47030 |
ZVW50 |
1 | ||
| 53731-47031 |
ZVW50 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-47020 |
ZVW50 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-47020 |
ZVW50 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-47020 |
ZVW50 |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-47040 |
ZVW50 |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-47040 |
ZVW50 |
1 | ||
| 53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| 53743-47020 |
ZVW50 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-47050 |
ZVW50 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-47030 |
ZVW50 |
1 | ||
| 53835D - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-47050 |
ZVW50 |
1 | ||
| 53836C - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53836-47050 |
ZVW50 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-47901 |
ZVW50..ARL |
1 | ||
| 55133A - REINFORCEMENT, DASH TO FLOOR, RH | ||||
| 55133-47010 |
ZVW50 |
1 | ||
| 55137A - BRACE, DASH TO FRAME, RH | ||||
| 55137-47040 |
ZVW50 |
1 | ||
| 55138A - BRACE, DASH TO FRAME, LH | ||||
| 55138-47070 |
ZVW50 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-47250 |
ZVW50..ARL |
1 | ||
| 55210-47210 |
ZVW50..ARL TIRE & DISC WHEEL-215/45R17,7J,ALUMINUM |
1 | ||
| 55210C - CLIP | ||||
| 90467-11122 |
ZVW50 |
4 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-47100 |
ZVW50..ARL |
1 | ||
| 55223C - CLIP | ||||
| 90467-06197 |
ZVW50 |
2 | ||
| 90467-06197 |
ZVW50 |
2 | ||
| 55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH | ||||
| 55241-47010 |
ZVW50 |
1 | ||
| 55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH | ||||
| 55242-47010 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90105-10586 | ||||
| 90109-06328 | ||||
| 90109-08307 | ||||
| 90119-08C89 | ||||
| 90189-06237 | ||||
| 90467-07214 | ||||
| 90467-07217 | ||||
| 90467-13079 | ||||
| 90480-25037 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 5503 | ||||
| 5701 | ||||
| 7403 | ||||
