ZVW50R-AHXEBQ (2015)
Toyota Prius
Production
Nov 2015
-
Dec 2018
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1511-1812)

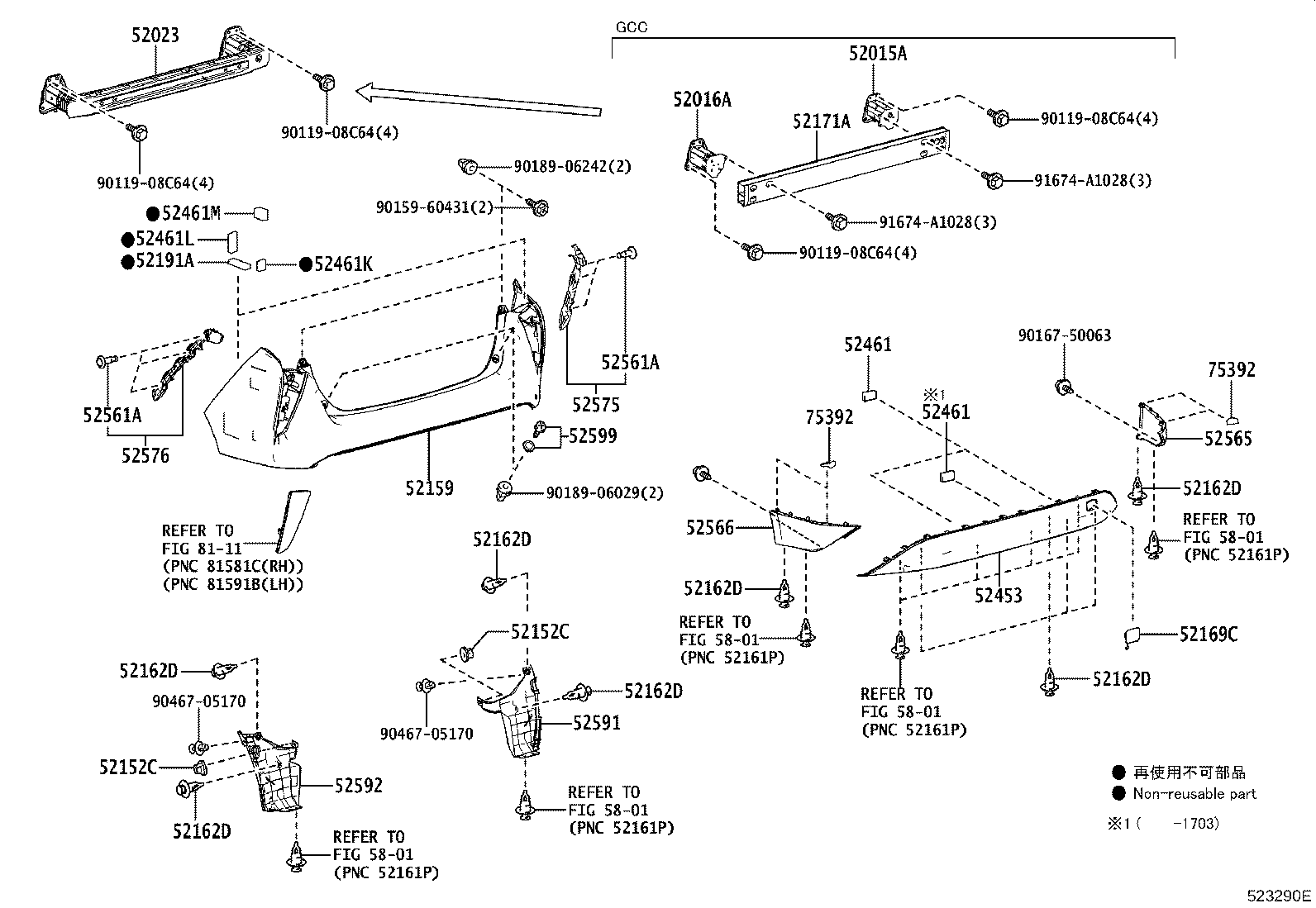

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-47030 |
ZVW50..ARL |
1 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-06206C0 |
ZVW50 BLACK |
2 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-06206C0 |
ZVW50 BLACK |
2 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-47913 |
ZVW50 |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW50 |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW50 |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW50 |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW50 |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW50 |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW50 |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW50 |
10 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-47020 |
ZVW50 NO PAINT REQ. |
1 | ||
| 52191A - SEAL, REAR BUMPER ARM | ||||
| 52191-47030 |
ZVW50 |
2 | ||
| 52453 - GUARD, REAR BUMPER, CENTER | ||||
| 52453-47010 |
ZVW50 |
1 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 52461-47010 |
ZVW50 |
3 | ||
| 52461-47010 |
ZVW50 |
2 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 52461-47010 |
ZVW50 |
3 | ||
| 52461-47010 |
ZVW50 |
2 | ||
| 52461K - PAD, REAR BUMPER, NO.1 | ||||
| 52462-47010 |
ZVW50 |
2 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52462-47020 |
ZVW50 |
2 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-47030 |
ZVW50 |
2 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
ZVW50 |
6 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
ZVW50 |
6 | ||
| 52565 - FILLER, REAR BUMPER EXTENSION, RH | ||||
| 52565-47900 |
ZVW50 |
1 | ||
| 52566 - FILLER, REAR BUMPER EXTENSION, LH | ||||
| 52566-47900 |
ZVW50 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-47040 |
ZVW50 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-47040 |
ZVW50 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-47050 |
ZVW50 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-47040 |
ZVW50 |
1 | ||
| 52599 - STOPPER, REAR BUMPER, UPPER | ||||
| 52599-68030 |
ZVW50 |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZVW50 |
4 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZVW50 |
4 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90189-06029 | ||||
| 90189-06242 | ||||
| 90467-05170 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 8111 | ||||
