ZVW50R-AHXEBQ (2015)
Toyota Prius
Production
Nov 2015
-
Dec 2018
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

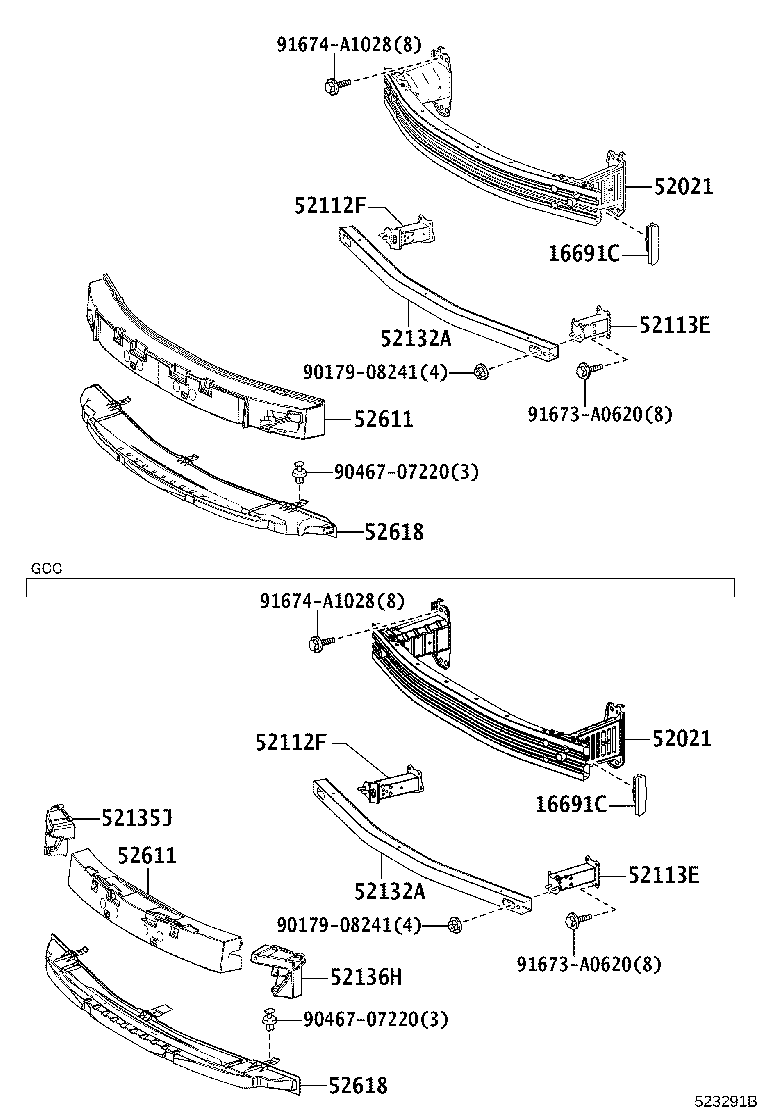

ILLUST NO. 2 OF 2(1511-1812)
Click highlighted areas on diagram
BUMPER REINFORCEMENT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16691C - PLATE, RADIATOR SIDE AIR GUIDE, FRONT | ||||
| 16691-37020 |
2ZRFXE..ZVW50 |
2 | ||
| 16691-37040 |
2ZRFXE..ZVW50 |
2 | ||
| 16691C - PLATE, RADIATOR SIDE AIR GUIDE, FRONT | ||||
| 16691-37020 |
2ZRFXE..ZVW50 |
2 | ||
| 16691-37040 |
2ZRFXE..ZVW50 |
2 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-47110 |
ZVW50..ARL |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-47110 |
ZVW50..ARL |
1 | ||
| 52112F - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-47020 |
ZVW50..ARL |
1 | ||
| 52112F - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-47020 |
ZVW50..ARL |
1 | ||
| 52113E - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-47010 |
ZVW50..ARL |
1 | ||
| 52113E - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-47010 |
ZVW50..ARL |
1 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-47010 |
ZVW50 |
1 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-47010 |
ZVW50 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-47140 |
ZVW50..ARL |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-47140 |
ZVW50..ARL |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-47090 |
ZVW50..ARL |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-47090 |
ZVW50..ARL |
1 | ||
| Common parts | ||||
| 90179-08241 | ||||
| 90467-07220 | ||||
| 91673-A0620 | ||||
| 91674-A1028 | ||||

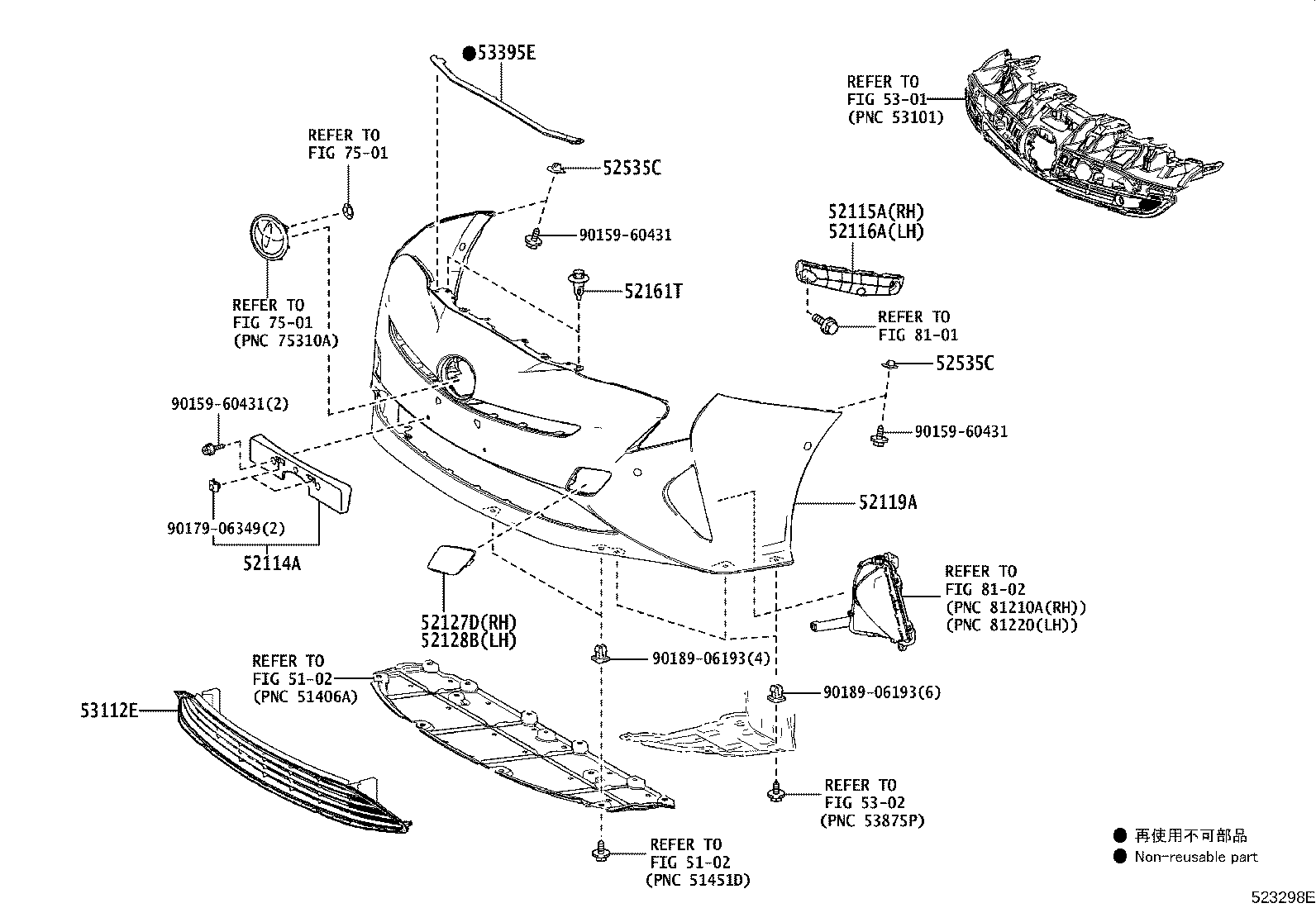

ILLUST NO. 1 OF 2(1511-1812)
Click highlighted areas on diagram
BUMPER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-47190 |
ZVW50 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-47050 |
ZVW50 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-47050 |
ZVW50 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-47962 |
ZVW50 PAINT REQ. |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-47907 |
ZVW50 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-47906 |
ZVW50 |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZVW50 |
2 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
ZVW50 |
2 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
ZVW50 |
2 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-47240 |
ZVW50 NO PAINT REQ. |
1 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-47040 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90179-06349 | ||||
| 90189-06193 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 7501 | ||||
| 8101 | ||||
| 8102 | ||||
