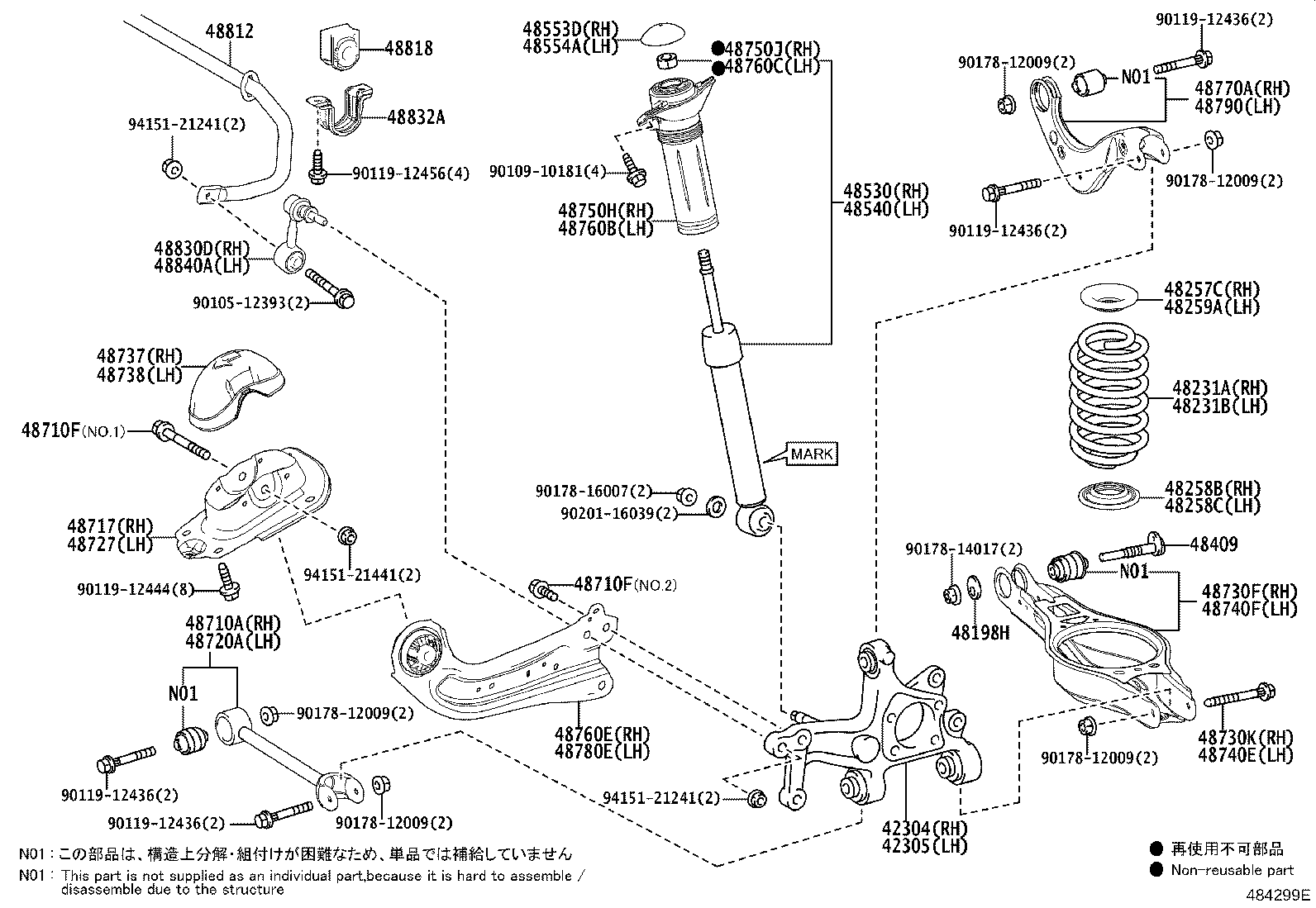

ZVW50R-AHXEBQ (2015)
Toyota Prius
(1511-1812)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-47050 |
ZVW50 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-47050 |
ZVW50 |
1 | ||
| 48198H - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-47010 |
ZVW50 |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-47170 |
ZVW50..ARL |
1 | ||
| 48231-47330 |
ZVW50..ARL ROUGH ROAD AREA SPEC(HEIGHT UP +20MM) |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-47170 |
ZVW50..ARL |
1 | ||
| 48231-47330 |
ZVW50..ARL ROUGH ROAD AREA SPEC(HEIGHT UP +20MM) |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-47020 |
ZVW50 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-47010 |
ZVW50 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-47010 |
ZVW50 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-47020 |
ZVW50 |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-47011 |
ZVW50 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80791 |
ZVW50..ARL MARK 48530-47340,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM |
1 | ||
| 48530-80789 |
ZVW50..ARL MARK 48530-47110 |
1 | ||
| 48530-80791 |
ZVW50..ARL MARK 48530-47340,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM) |
1 | ||
| 48530-80791 |
ZVW50..ARL MARK 48530-47340,TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80791 |
ZVW50..ARL MARK 48530-47340,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM |
1 | ||
| 48530-80789 |
ZVW50..ARL MARK 48530-47110 |
1 | ||
| 48530-80791 |
ZVW50..ARL MARK 48530-47340,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM) |
1 | ||
| 48530-80791 |
ZVW50..ARL MARK 48530-47340,TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM |
1 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-47010 |
ZVW50 |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-47010 |
ZVW50 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-47010 |
ZVW50 |
1 | ||
| 48710F - BOLT(FOR REAR TRAILING ARM) | ||||
| 90105-14197 |
ZVW50 NO.2:REFER ILLUST. |
4 | ||
| 90105-14195 |
ZVW50 NO.1:REFER ILLUST. |
2 | ||
| 48710F - BOLT(FOR REAR TRAILING ARM) | ||||
| 90105-14197 |
ZVW50 NO.2:REFER ILLUST. |
4 | ||
| 90105-14195 |
ZVW50 NO.1:REFER ILLUST. |
2 | ||
| 48717 - BRACKET, REAR SUSPENSION ARM, RH | ||||
| 48717-47020 |
ZVW50 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-47010 |
ZVW50 |
1 | ||
| 48727 - BRACKET, REAR SUSPENSION ARM, LH | ||||
| 48727-47020 |
ZVW50 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-47010 |
ZVW50 |
1 | ||
| 48730K - BOLT(FOR REAR SUSPENSION ARM NO.2 RH) | ||||
| 90119-12426 |
ZVW50 |
1 | ||
| 48737 - COVER, REAR SUSPENSION ARM, RH | ||||
| 48753-47010 |
ZVW50 |
1 | ||
| 48738 - COVER, REAR SUSPENSION ARM, LH | ||||
| 48753-47020 |
ZVW50 |
1 | ||
| 48740E - BOLT(FOR REAR SUSPENSION ARM NO.2 LH) | ||||
| 90119-12426 |
ZVW50 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-47010 |
ZVW50 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-47020 |
ZVW50 |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 94130-61200 |
ZVW50 |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-47020 |
ZVW50 |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 94130-61200 |
ZVW50 |
1 | ||
| 48760E - ARM ASSY, TRAILING, REAR RH | ||||
| 48760-47010 |
ZVW50 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-47010 |
ZVW50 |
1 | ||
| 48780E - ARM ASSY, TRAILING, REAR LH | ||||
| 48780-47010 |
ZVW50 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-47010 |
ZVW50 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-47040 |
ZVW50 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-47010 |
ZVW50 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-47010 |
ZVW50 |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-47010 |
ZVW50 |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-47010 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90105-12393 | ||||
| 90109-10181 | ||||
| 90119-12436 | ||||
| 90119-12444 | ||||
| 90119-12456 | ||||
| 90178-12009 | ||||
| 90178-14017 | ||||
| 90178-16007 | ||||
| 90201-16039 | ||||
| 94151-21241 | ||||
| 94151-21441 | ||||
