ZVW50R-AHXEBQ (2015)
Toyota Prius
(1511-1812)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48045 - SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR | ||||
| 48045-47010 |
ZVW50 |
1 | ||
| 48045-47011 |
ZVW50 |
1 | ||
| 48045A - SEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR | ||||
| 48045-47011 |
ZVW50 |
1 | ||
| 48045-47010 |
ZVW50 |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-47200 |
ZVW50..ARL ROUGH ROAD AREA SPEC(HEIGHT UP +20MM) |
1 | ||
| 48131-47160 |
ZVW50..ARL |
1 | ||
| 48131-47200 |
ZVW50..ARL ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-47200 |
ZVW50..ARL ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM |
1 | ||
| 48131-47160 |
ZVW50..ARL |
1 | ||
| 48131-47200 |
ZVW50..ARL ROUGH ROAD AREA SPEC(HEIGHT UP +20MM) |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-47020 |
ZVW50 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-47020 |
ZVW50 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-47040 |
ZVW50..ARL ROUGH ROAD AREA SPEC(HEIGHT UP +20MM) |
1 | ||
| 48331-47040 |
ZVW50..ARL ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM |
1 | ||
| 48331-47030 |
ZVW50..ARL |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-47040 |
ZVW50..ARL ROUGH ROAD AREA SPEC(HEIGHT UP +20MM) |
1 | ||
| 48331-47040 |
ZVW50..ARL ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM |
1 | ||
| 48331-47030 |
ZVW50..ARL |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80815 |
ZVW50..ARL MARK 48510-47300,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM |
1 | ||
| 48510-80815 |
ZVW50..ARL MARK 48510-47300,TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM |
1 | ||
| 48510-80814 |
ZVW50..ARL MARK 48510-47290 |
1 | ||
| 48510-80815 |
ZVW50..ARL MARK 48510-47300,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM) |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80490 |
ZVW50..ARL MARK 48520-47290 |
1 | ||
| 48520-80492 |
ZVW50..ARL MARK 48520-47300,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM) |
1 | ||
| 48520-80492 |
ZVW50..ARL MARK 48520-47300,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM |
1 | ||
| 48520-80492 |
ZVW50..ARL MARK 48520-47300,TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-47060 |
ZVW50 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10029 |
ZVW50 |
6 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10029 |
ZVW50 |
6 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90177-14007 |
ZVW50 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-47060 |
ZVW50 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90177-14007 |
ZVW50 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52010 |
ZVW50 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52010 |
ZVW50 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-47040 |
ZVW50 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-47080 |
ZVW50 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-47040 |
ZVW50 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-47040 |
ZVW50 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
ZVW50 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
ZVW50 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-47040 |
ZVW50 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-47020 |
ZVW50 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-47020 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90119-10993 | ||||
| 90387-15033 | ||||
| 90560-10098 | ||||

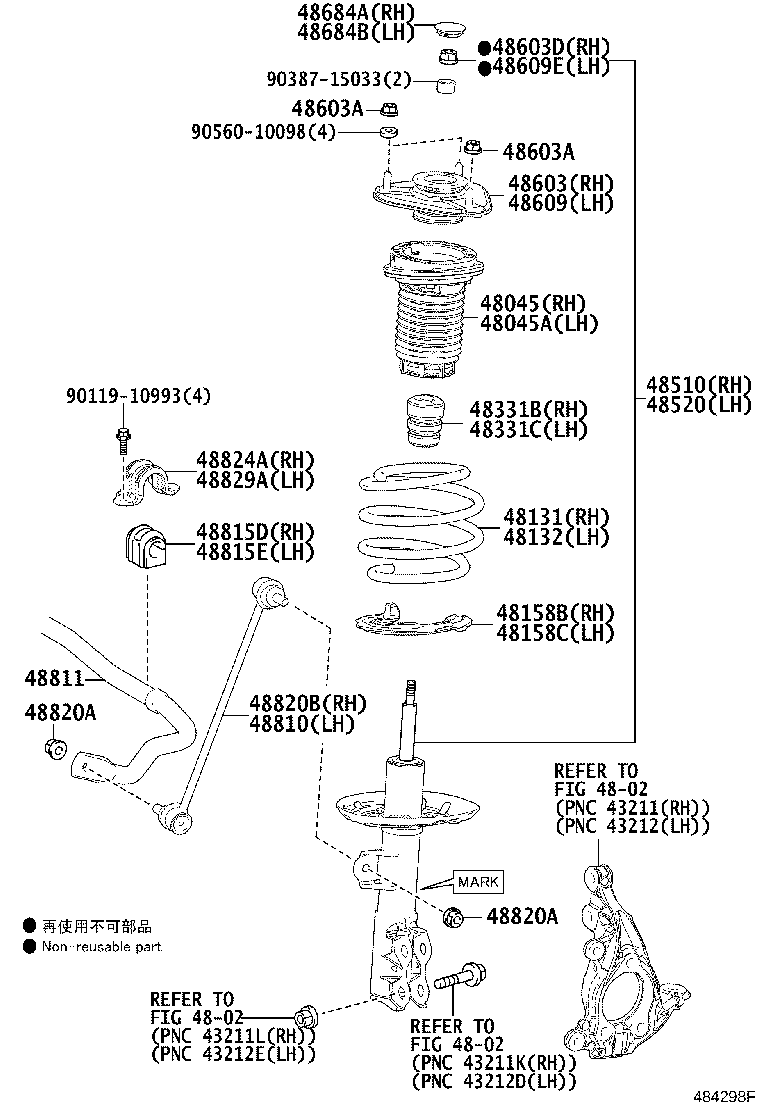

| Linked diagrams | ||||
| 4802 | ||||
