ZVW50R-AHXEBQ (2015)
Toyota Prius
Production
Nov 2015
-
Dec 2018
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1511- )ARL

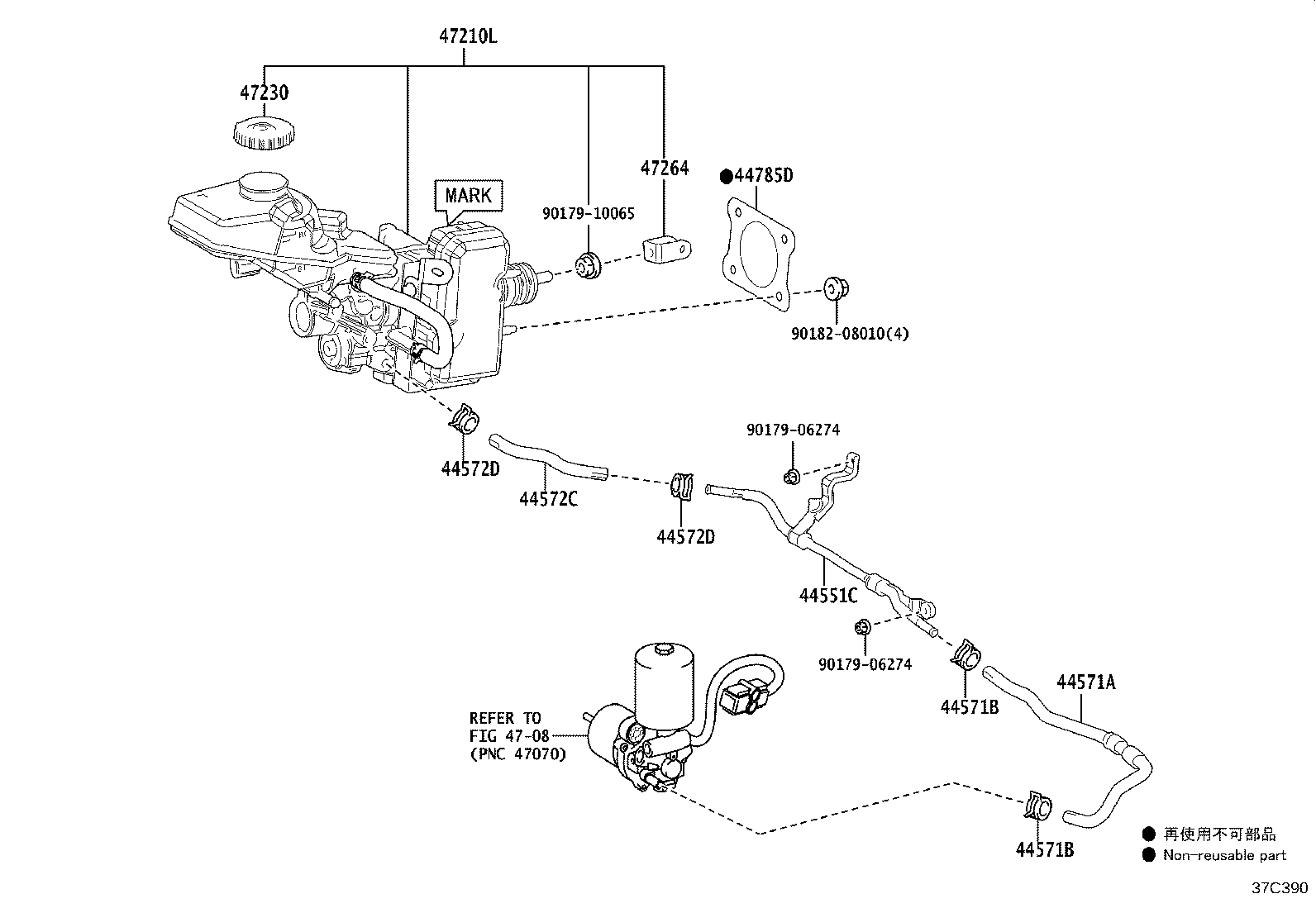

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-47060 |
ZVW50..ARL |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-47080 |
ZVW50..ARL |
1 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 96137-41501 |
ZVW50 |
2 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 96137-41501 |
ZVW50 |
2 | ||
| 44572C - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-47060 |
ZVW50..ARL |
1 | ||
| 44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
ZVW50 |
2 | ||
| 44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
ZVW50 |
2 | ||
| 44785D - GASKET, BRAKE MASTER CYLINDER | ||||
| 44785-12040 |
ZVW50 |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-47640 |
ZVW50..ARL ROUGH ROAD AREA SPEC(HEIGHT UP +20MM) |
1 | ||
| 47050-47600 |
ZVW50..ARL |
1 | ||
| 47050-47601 |
ZVW50..ARL |
1 | ||
| 47050-47641 |
ZVW50..ARL ROUGH ROAD AREA SPEC(HEIGHT UP +20MM) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
ZVW50 |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-47010 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90179-10065 | ||||
| 90182-08010 | ||||
| Linked diagrams | ||||
| 4708 | ||||
