ZVW50R-AHXEBQ (2015)
Toyota Prius
Production
Nov 2015
-
Dec 2018
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1511- )ARL

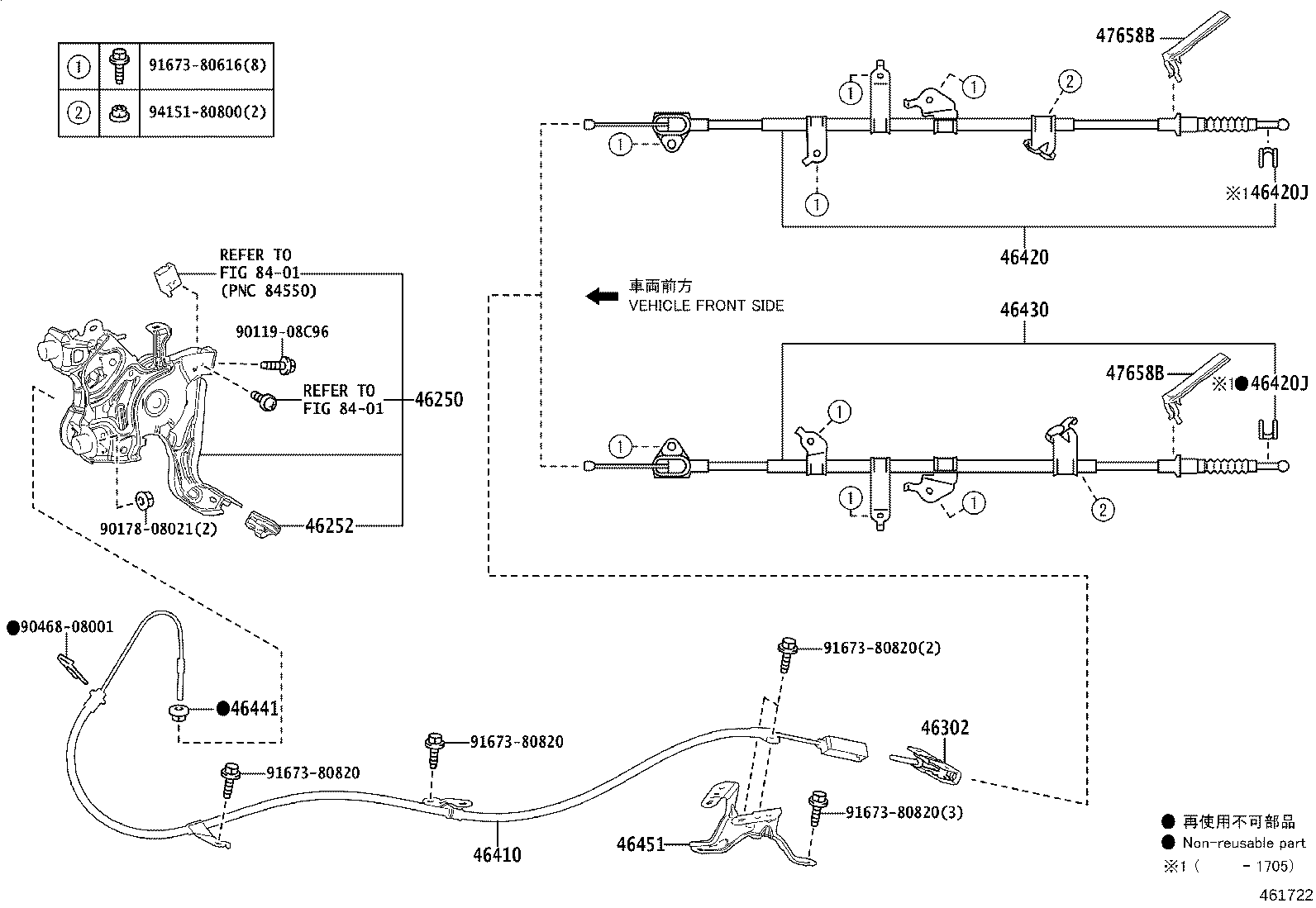

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46250 - PEDAL ASSY, PARKING BRAKE W/O CABLE | ||||
| 46250-47040 |
ZVW50 |
1 | ||
| 46250-33010 |
ZVW50 |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-47020 |
ZVW50 |
1 | ||
| 46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1 | ||||
| 46302-47020 |
ZVW50 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-47150 |
ZVW50..ARL |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-47110 |
ZVW50 W(PNC 46420J) |
1 | ||
| 46420-47120 |
ZVW50 W/O(PNC 46420J) |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46423-47020 |
ZVW50 |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46423-47020 |
ZVW50 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-47120 |
ZVW50 W/O(PNC 46420J) |
1 | ||
| 46430-47110 |
ZVW50 W(PNC 46420J) |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 90177-06003 |
ZVW50 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-47030 |
ZVW50 |
1 | ||
| 47658B - PROTECTOR, PARKING BRAKE LEVER | ||||
| 47658-47010 |
ZVW50 |
2 | ||
| 47658B - PROTECTOR, PARKING BRAKE LEVER | ||||
| 47658-47010 |
ZVW50 |
2 | ||
| Common parts | ||||
| 90119-08C96 | ||||
| 90178-08021 | ||||
| 90468-08001 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
