ZVW50R-AHXEBQ (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )ARL

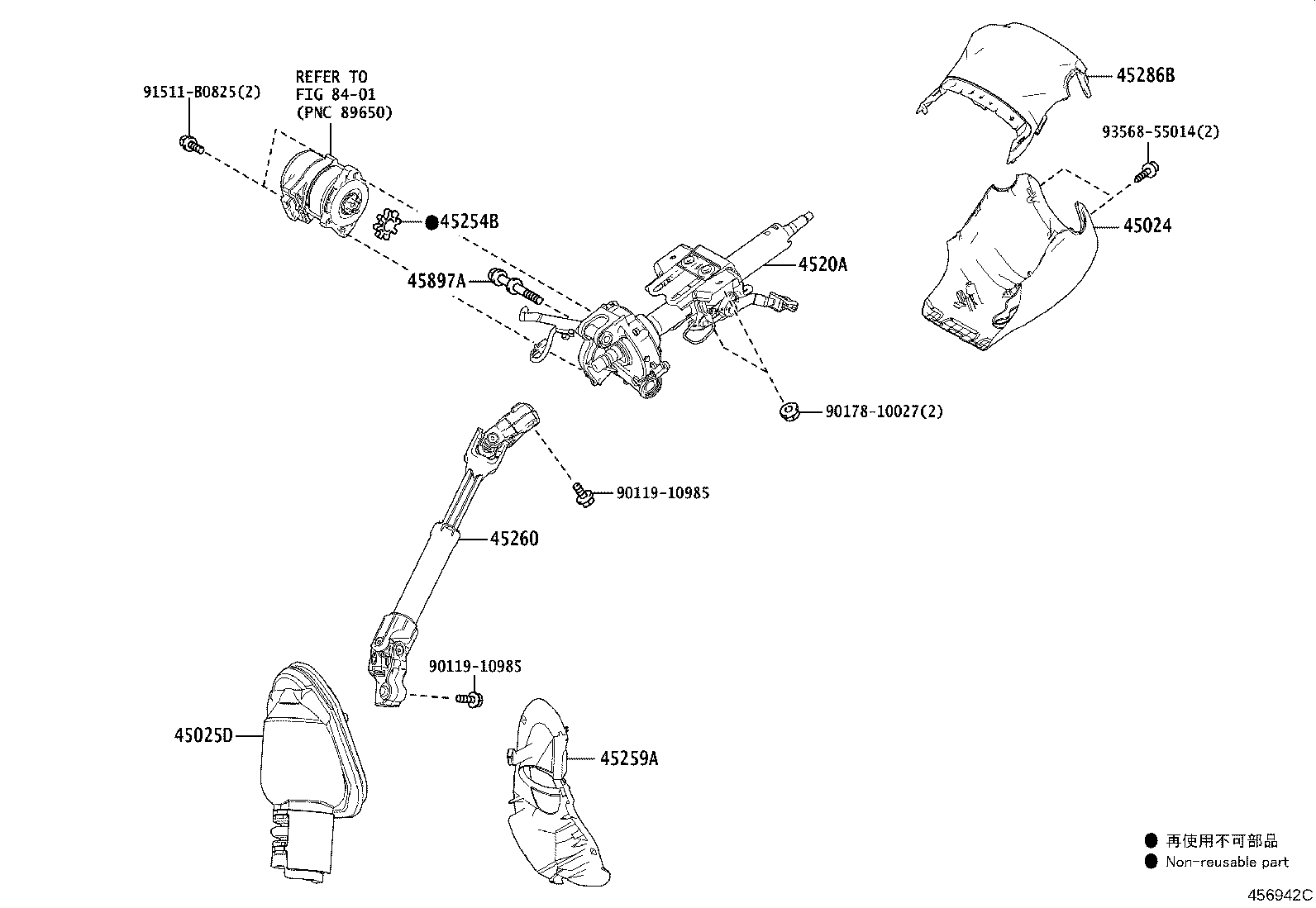

Click highlighted areas on diagram

diagram 45024 45025D 4520A 45254B 45259A 45260 45286B 45897A 8401 9011910985 9011910985 9017810027 91511B0825 9356855014
Part # Description Qty Price
45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER
45024-47020C0

ZVW50

BLACK,TRIM1#,2#

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-47050

ZVW50..ARL

 1
45025-47030

ZVW50..ARL

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-47050

ZVW50..ARL

 1
4520A-47051

ZVW50..ARL

 1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040

ZVW50

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-47040

ZVW50..ARL

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-47100

ZVW50..ARL

 1
45286B - COVER, STEERING COLUMN, UPR
45286-47050C0

ZVW50

BLACK,TRIM1#,2#

 1
45897A - BOLT, TILT STEERING PAWL SET
90119-10981

ZVW50

 1
Common parts
90119-10985
90178-10027
91511-B0825
93568-55014
Linked diagrams
8401
