ZVW50R-AHXEBQ (2015)
Toyota Prius

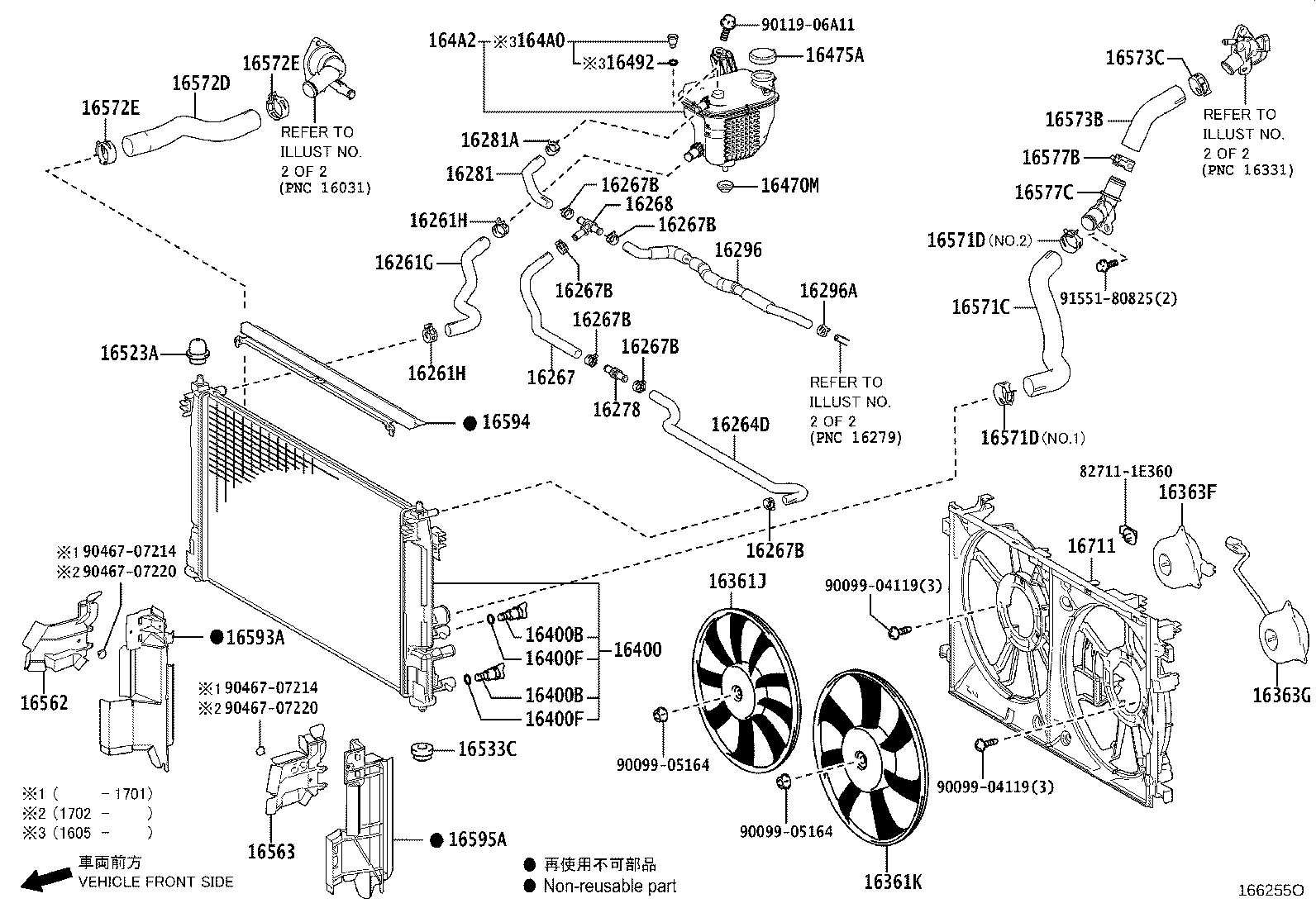

ILLUST NO. 1 OF 2(1511-2004)2ZRFXE..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-37150 |
2ZRFXE..ZVW50 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96138-42501 |
2ZRFXE..ZVW50 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96138-42501 |
2ZRFXE..ZVW50 |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37120 |
2ZRFXE..ZVW50 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37090 |
2ZRFXE..ZVW50 |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41901 |
2ZRFXE..ZVW50 |
6 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41901 |
2ZRFXE..ZVW50 |
6 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41901 |
2ZRFXE..ZVW50 |
6 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41901 |
2ZRFXE..ZVW50 |
6 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41901 |
2ZRFXE..ZVW50 |
6 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41901 |
2ZRFXE..ZVW50 |
6 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37100 |
2ZRFXE..ZVW50 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16268-37120 |
2ZRFXE..ZVW50 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-37100 |
2ZRFXE..ZVW50 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-42101 |
2ZRFXE..ZVW50 |
1 | ||
| 96136-42101 |
2ZRFXE..ZVW50 |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-37010 |
2ZRFXE..ZVW50 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90466-16004 |
2ZRFXE..ZVW50 |
1 | ||
| 16361J - FAN, RH | ||||
| 16361-37070 |
2ZRFXE..ZVW50..ARL |
1 | ||
| 16361K - FAN, LH | ||||
| 16361-37060 |
2ZRFXE..ZVW50..ARL |
1 | ||
| 16363F - MOTOR, COOLING FAN, RH | ||||
| 16363-36160 |
2ZRFXE..ZVW50..ARL |
1 | ||
| 16363-36160 |
2ZRFXE..ZVW50..ARL |
1 | ||
| 16363G - MOTOR, COOLING FAN, LH | ||||
| 16363-37060 |
2ZRFXE..ZVW50..ARL |
1 | ||
| 16363-37060 |
2ZRFXE..ZVW50..ARL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-37310 |
2ZRFXE..ZVW50..ARL |
1 | ||
| 16400-37311 |
2ZRFXE..ZVW50..ARL |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2ZRFXE..ZVW50 |
2 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2ZRFXE..ZVW50 |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ZRFXE..ZVW50 |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ZRFXE..ZVW50 |
2 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
2ZRFXE..ZVW50 |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-37011 |
2ZRFXE..ZVW50 |
1 | ||
| 16475-28140 |
2ZRFXE..ZVW50 |
1 | ||
| 16492 - RING, O(FOR RADIATOR RESERVE TANK COCK) | ||||
| 16492-21050 |
2ZRFXE..ZVW50 |
1 | ||
| 164A0 - COCK ASSY, RESERVE TANK | ||||
| 164A0-37010 |
2ZRFXE..ZVW50 |
1 | ||
| 164A2 - TANK, RESERVE SEALED W/O CAP | ||||
| 164A2-37012 |
2ZRFXE..ZVW50 |
1 | ||
| 164A2-37011 |
2ZRFXE..ZVW50 |
1 | ||
| 164A2-37010 |
2ZRFXE..ZVW50 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-37010 |
2ZRFXE..ZVW50 |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90480-40021 |
2ZRFXE..ZVW50 |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-37010 |
2ZRFXE..ZVW50 |
1 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-37010 |
2ZRFXE..ZVW50 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-37210 |
2ZRFXE..ZVW50 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-43002 |
2ZRFXE..ZVW50 NO.1 |
1 | ||
| 90466-40001 |
2ZRFXE..ZVW50 NO.2 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-43002 |
2ZRFXE..ZVW50 NO.1 |
1 | ||
| 90466-40001 |
2ZRFXE..ZVW50 NO.2 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-37210 |
2ZRFXE..ZVW50 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-43002 |
2ZRFXE..ZVW50 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-43002 |
2ZRFXE..ZVW50 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-37020 |
2ZRFXE..ZVW50 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-40001 |
2ZRFXE..ZVW50 |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 90466-40001 |
2ZRFXE..ZVW50 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-37090 |
2ZRFXE..ZVW50 |
1 | ||
| 16593A - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-37040 |
2ZRFXE..ZVW50..ARL |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-37010 |
2ZRFXE..ZVW50 |
1 | ||
| 16595A - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-37050 |
2ZRFXE..ZVW50..ARL |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-37160 |
2ZRFXE..ZVW50 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06A11 | ||||
| 90467-07214 | ||||
| 90467-07220 | ||||
| 91551-80825 | ||||
ILLUST NO. 2 OF 2(1511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-37010 |
2ZRFXE..ZVW50 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-37160 |
2ZRFXE..ZVW50 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2ZRFXE..ZVW50 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2ZRFXE..ZVW50 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37130 |
2ZRFXE..ZVW50 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ZRFXE..ZVW50 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2ZRFXE..ZVW50 |
2 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-37020 |
2ZRFXE..ZVW50 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96137-41501 |
2ZRFXE..ZVW50 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96137-41501 |
2ZRFXE..ZVW50 |
2 | ||
| 16283D - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-37020 |
2ZRFXE..ZVW50 |
1 | ||
| 16283-37021 |
2ZRFXE..ZVW50 |
1 | ||
| 1628A - PIPE, WATER BY-PASS, NO.6 | ||||
| 16268-37110 |
2ZRFXE..ZVW50 |
1 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-37010 |
2ZRFXE..ZVW50 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 90466-16005 |
2ZRFXE..ZVW50 |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 90466-16005 |
2ZRFXE..ZVW50 |
2 | ||
| 16299A - HOSE, WATER BY-PASS, NO.13 | ||||
| 16281-37080 |
2ZRFXE..ZVW50 |
1 | ||
| 16299B - CLIP(FOR WATER BY-PASS HOSE NO.13) | ||||
| 96136-42501 |
2ZRFXE..ZVW50 |
2 | ||
| 16299B - CLIP(FOR WATER BY-PASS HOSE NO.13) | ||||
| 96136-42501 |
2ZRFXE..ZVW50 |
2 | ||
| 1629A - HOSE, WATER BY-PASS, NO.14 | ||||
| 16267-37100 |
2ZRFXE..ZVW50 |
1 | ||
| 1629AA - CLIP(FOR WATER BY-PASS HOSE NO.14) | ||||
| 96136-42501 |
2ZRFXE..ZVW50 |
2 | ||
| 1629AA - CLIP(FOR WATER BY-PASS HOSE NO.14) | ||||
| 96136-42501 |
2ZRFXE..ZVW50 |
2 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37020 |
2ZRFXE..ZVW50 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-37100 |
2ZRFXE..ZVW50 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-37010 |
2ZRFXE..ZVW50 |
1 | ||
| Common parts | ||||
| 90126-06026 | ||||
| 90126-08060 | ||||
| 91551-80620 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||
| 8716 | ||||
