ZVW50L-AHXEBV (2018)

Toyota Prius

Production Dec 2018 - Jun 2020
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )GCC

Click highlighted areas on diagram

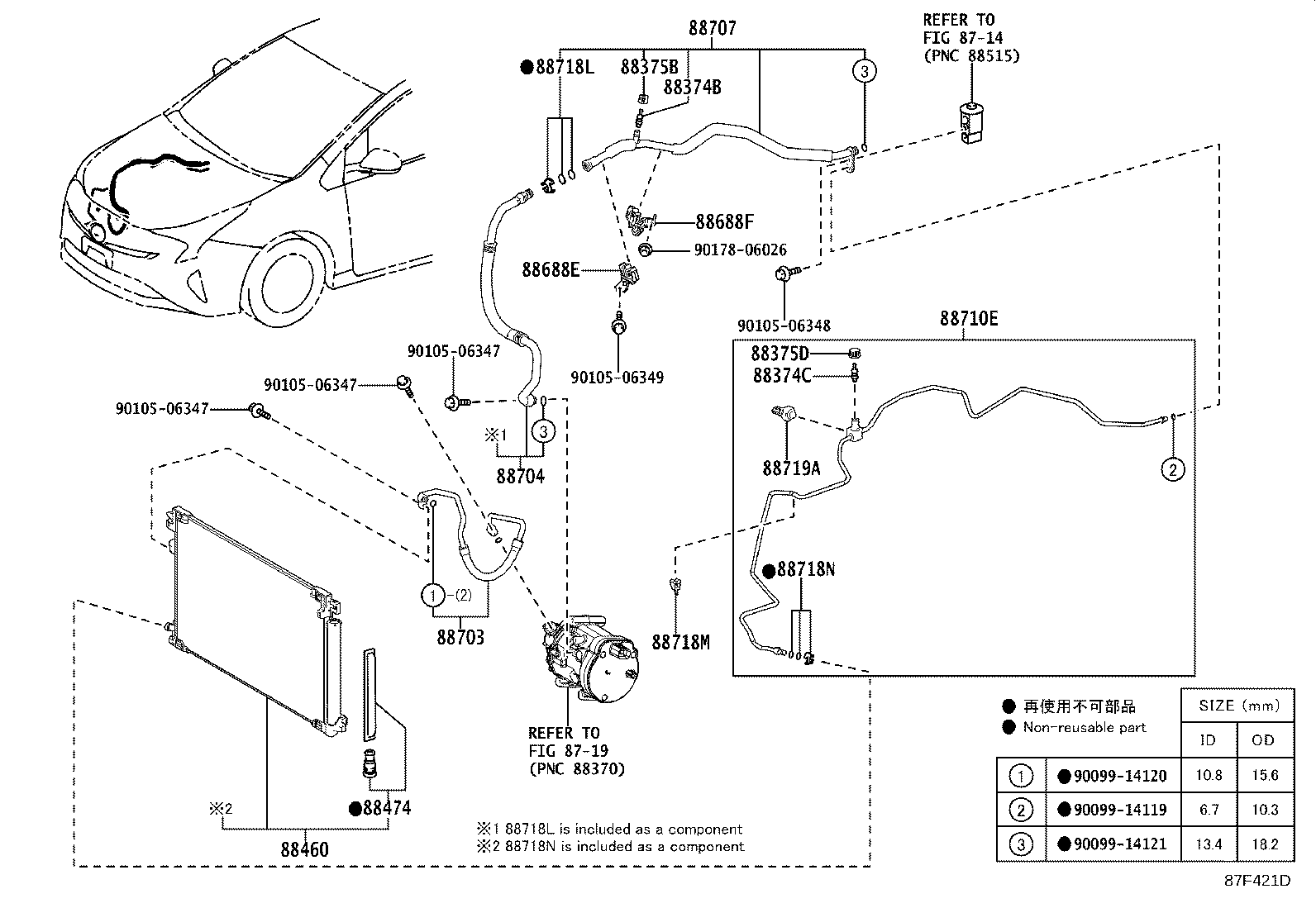

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88688E 88688F 88703 88704 88707 88710E 88718L 88718M 88718N 88719A 9009914119 9009914120 9009914121 9010506347 9010506347 9010506347 9010506348 9010506349 9017806026
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ZVW50..GCC

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ZVW50..GCC

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ZVW50..GCC

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

ZVW50..GCC

 1
88460 - CONDENSER ASSY, COOLER
88460-10320

ZVW50..GCC

 1
88474 - DRYER, COOLER
88474-12020

ZVW50..GCC

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-47700

ZVW50..GCC

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-47710

ZVW50..GCC

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-47080

ZVW50..GCC

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-47100

ZVW50..GCC

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-47110

ZVW50..GCC

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-47181

ZVW50..GCC

 1
88710-47180

ZVW50..GCC

 1
88718L - CLAMP, PIPING
88718-52280

ZVW50..GCC

 1
88718M - CLAMP, PIPING
88718-47110

ZVW50..GCC

 1
88718N - CLAMP, PIPING
88718-1E150

ZVW50..GCC

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-47010

ZVW50..GCC

 1
Common parts
90099-14119
90099-14120
90099-14121
90105-06347
90105-06348
90105-06349
90178-06026
