ZVW50L-AHXEBV (2018)
Toyota Prius
Production
Dec 2018
-
Jun 2020
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1511-2006)GCC

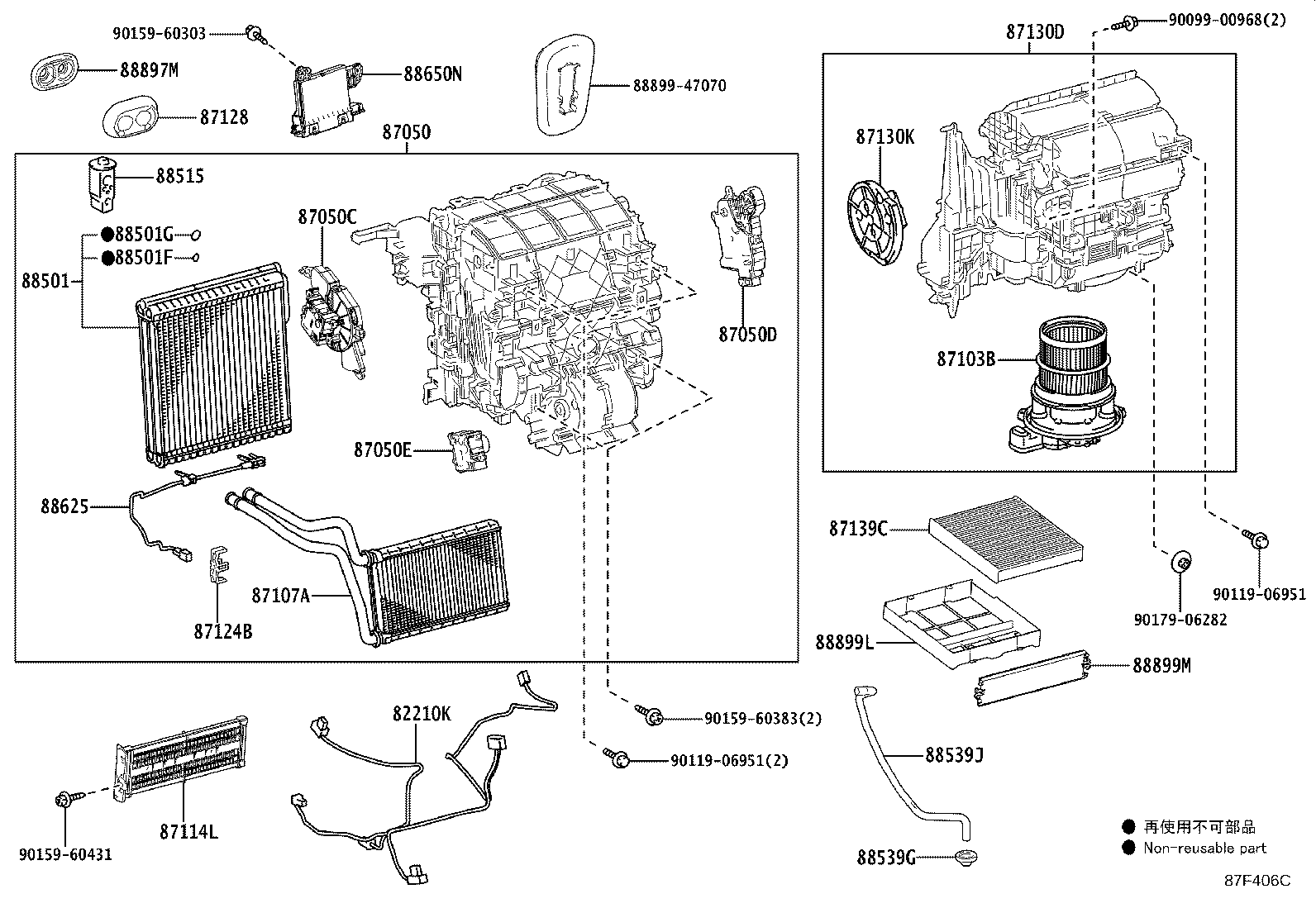

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-47030 |
ZVW50..GCC |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-47330 |
ZVW50..GCC |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-48240 |
ZVW50..GCC |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-47180 |
ZVW50 |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-47200 |
ZVW50..GCC |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-58080 |
ZVW50..GCC |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-47080 |
ZVW50..GCC |
1 | ||
| 87114L - COVER, HEATER, NO.2 | ||||
| 87114-47020 |
ZVW50 |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
ZVW50 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28020 |
ZVW50 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-47290 |
ZVW50..GCC |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-58050 |
ZVW50..GCC |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-28020 |
ZVW50..GCC POLLEN FILTER,POLLEN(OE PARTS) |
1 | ||
| 87139-58010 |
ZVW50..GCC DEODORANT FILTER,OE PART |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-47090 |
ZVW50 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
ZVW50 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
ZVW50 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30800 |
ZVW50 |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-47010 |
ZVW50..GCC |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-47060 |
ZVW50..GCC |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-28060 |
ZVW50 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-28010 |
ZVW50..GCC |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-47090 |
ZVW50..GCC |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-47120 |
ZVW50..GCC |
1 | ||
| Common parts | ||||
| 88899-47070 | ||||
| 90099-00968 | ||||
| 90119-06951 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||
