ZVW50L-AHXEBV (2018)
Toyota Prius
Production
Dec 2018
-
Jun 2020
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

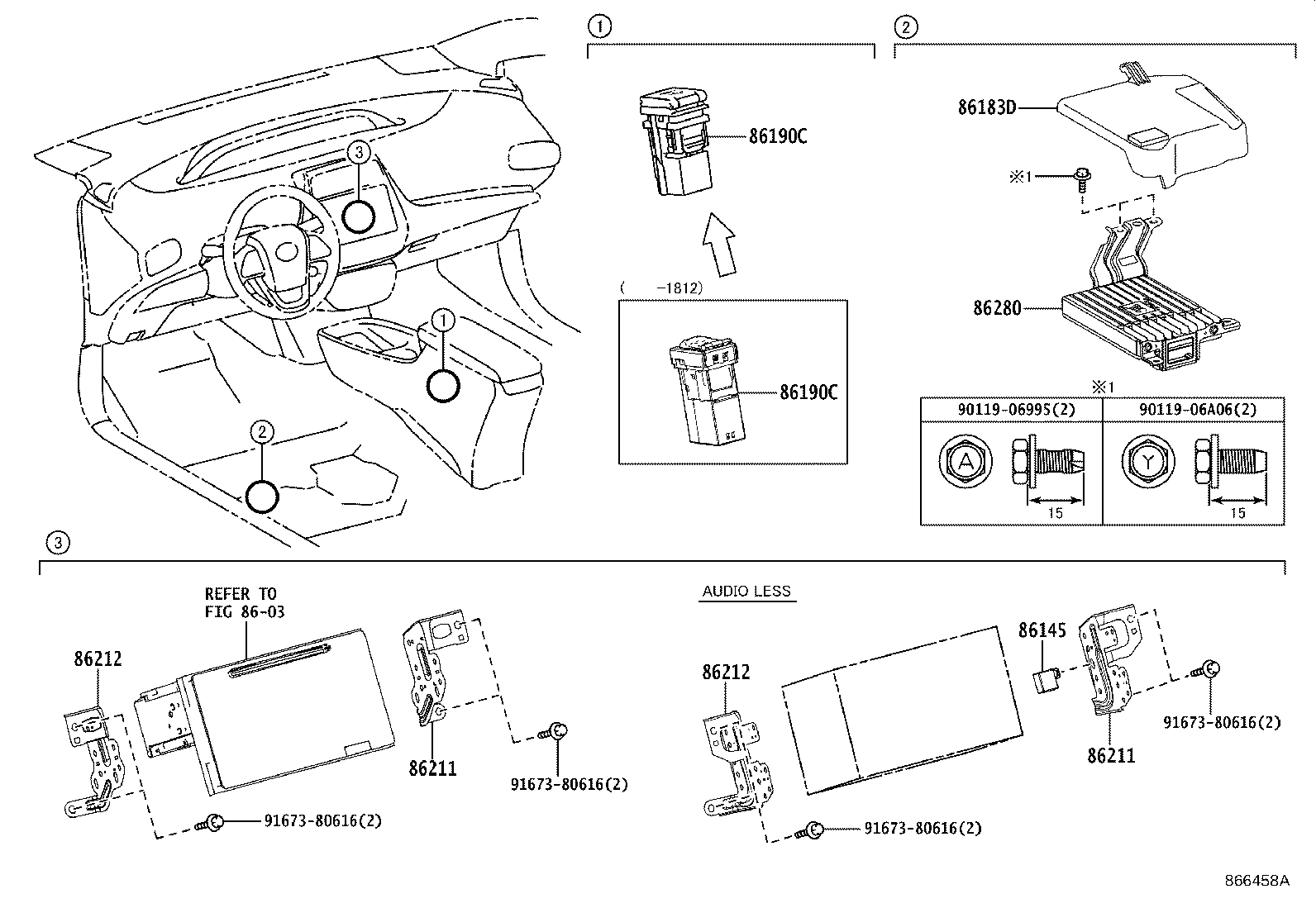

ILLUST NO. 1 OF 2(1511- )GCC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86145 - CONNECTOR, ANTENNA MALE | ||||
| 86145-52010 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 86183D - COVER, AUDIO AMPLIFIER | ||||
| 86183-12020 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 86183-12020 |
ZVW50 |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-12040 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-12040 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-47130 |
ZVW50 |
1 | ||
| 86211-47140 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-47130 |
ZVW50 |
1 | ||
| 86211-47140 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-47140 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 86212-47130 |
ZVW50 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-47140 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 86212-47130 |
ZVW50 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-47100 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 86280-47100 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 90119-06A06 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8603 | ||||

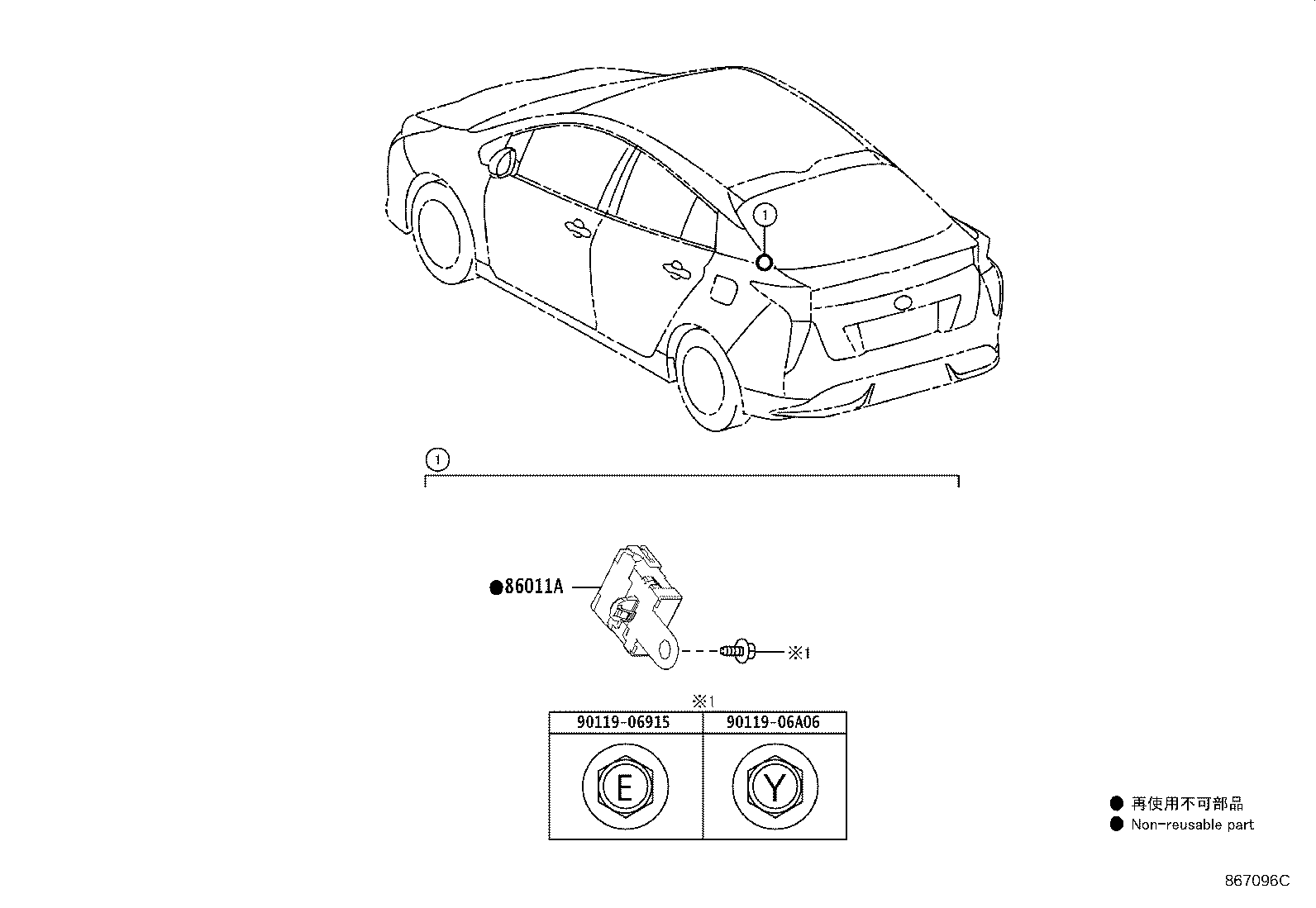

ILLUST NO. 2 OF 2(1511- )
Click highlighted areas on diagram
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04189 |
ZVW50..GCC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
