ZVW50L-AHXEBV (2018)

Toyota Prius

Production Dec 2018 - Jun 2020
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

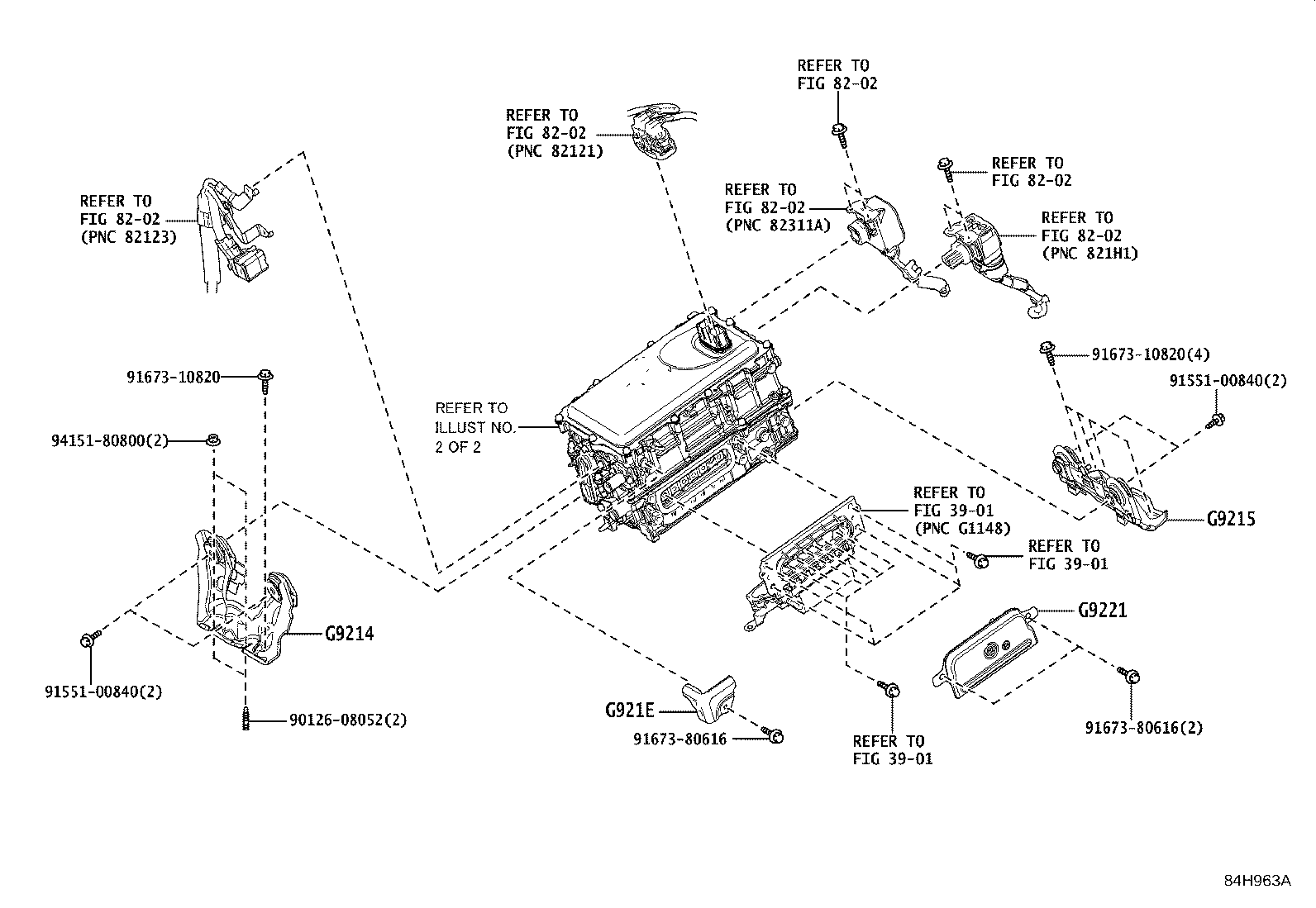

ILLUST NO. 1 OF 2(1511- )

Click highlighted areas on diagram

diagram 3901 3901 3901 8202 8202 8202 8202 8202 8202 9012608052 9155100840 9155100840 9167310820 9167310820 9167380616 9167380616 9415180800 G9214 G9215 G921E G9221
Part # Description Qty Price
G9214 - BRACKET, INVERTER, NO.1
G9214-47070

ZVW50..GCC

 1
G9215 - BRACKET, INVERTER, NO.2
G9215-47050

ZVW50..GCC

 1
G921E - PROTECTOR, INVERTER
G921E-47010

ZVW50..GCC

 1
G9221 - COVER, INVERTER
G9022-47050

ZVW50..GCC

 1
Common parts
90126-08052
91551-00840
91673-10820
91673-80616
94151-80800
Linked diagrams
3901
8202

ILLUST NO. 2 OF 2(1511- )

Click highlighted areas on diagram

INVERTER ASSY

diagram 04899 04899L G9200 G9251
Part # Description Qty Price
04899 - CONVERTER KIT, HV
04899-47110

ZVW50..GCC

 1
G9251 - SEAT, INVERTER NAME
G9251-47010

ZVW50

 1
