ZVW50L-AHXEBV (2018)
Toyota Prius

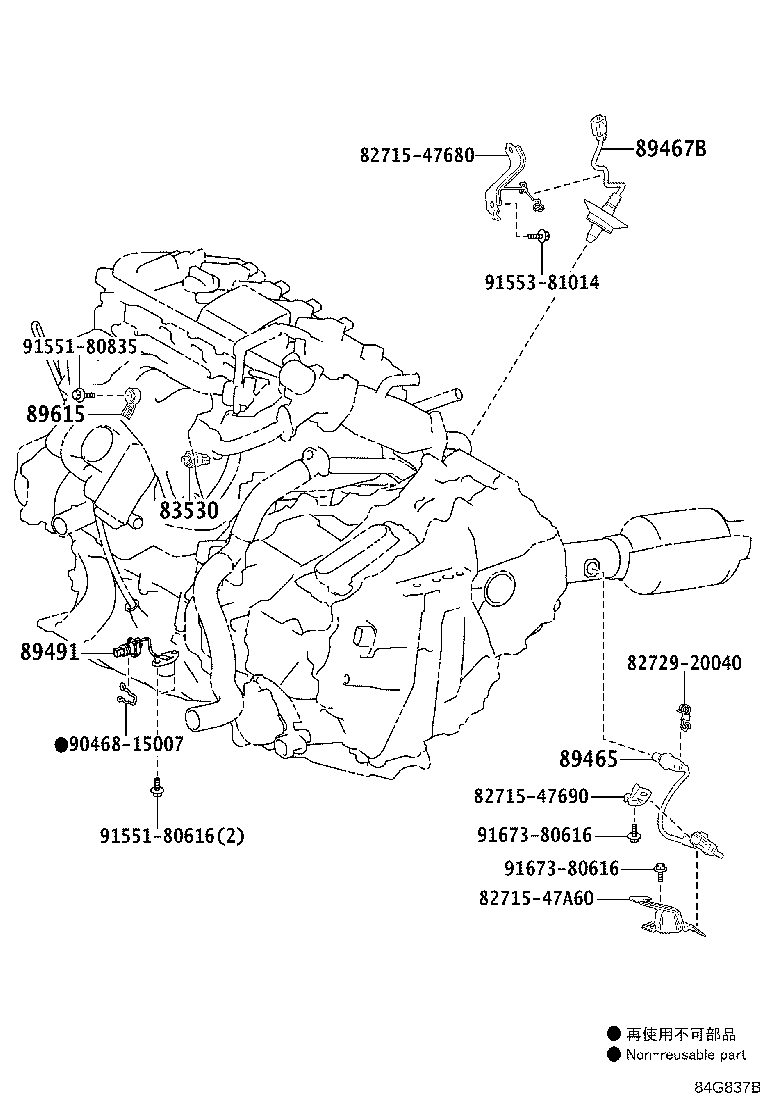

ILLUST NO. 1 OF 8(1511- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12060 |
ZVW50..GCC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-47090 |
ZVW50 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-47030 |
ZVW50 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZVW50..GCC |
1 | ||
| Common parts | ||||
| 82715-47680 | ||||
| 82715-47690 | ||||
| 82715-47A60 | ||||
| 82729-20040 | ||||
| 90468-15007 | ||||
| 91551-80616 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91673-80616 | ||||

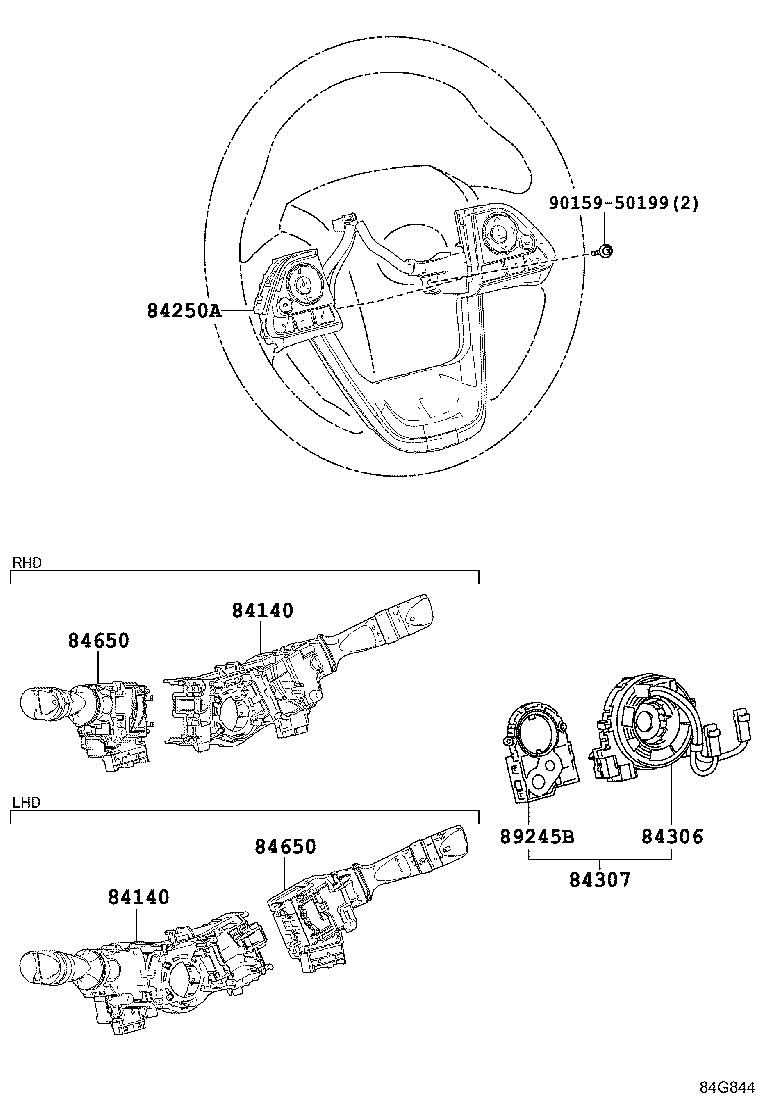

ILLUST NO. 6 OF 8(1511- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33250 |
ZVW50..GCC |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33250 |
ZVW50..GCC |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-47541C5 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 84250-47551C4 |
ZVW50..GCC DECONTENT PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A860 |
ZVW50..GCC |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A860 |
ZVW50..GCC |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-47010 |
ZVW50..GCC |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
ILLUST NO. 7 OF 8(1511- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-33180C0 |
ZVW50..GCC FRONT SEAT-DRIVER(8-WAY),BLACK,TRIM1#,2# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-33170C0 |
ZVW50..GCC FRONT SEAT-DRIVER(8-WAY),BLACK,TRIM1#,2# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-47030C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-47030C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-33210C0 |
ZVW50..GCC FRONT SEAT-DRIVER(8-WAY),BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 93560-54012 | ||||
ILLUST NO. 4 OF 8(1511- )GCC
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZVW50..GCC 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZVW50..GCC 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZVW50..GCC 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ZVW50..GCC 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ZVW50..GCC 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZVW50..GCC 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZVW50..GCC 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZVW50..GCC 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ZVW50..GCC 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ZVW50..GCC 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZVW50..GCC 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZVW50..GCC 20A,MINI FUSE,YELLOW |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-47050 |
ZVW50..GCC |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-47170 |
ZVW50..GCC |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-47110 |
ZVW50..GCC |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-47200 |
ZVW50..GCC |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-47700 |
ZVW50..GCC |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-47560 |
ZVW50..GCC |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-47040 |
ZVW50..GCC |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19085 |
ZVW50..GCC |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ZVW50..GCC |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
ZVW50..GCC |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ZVW50 |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 90987-04004 |
ZVW50..GCC |
2 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-12020 |
ZVW50 |
1 | ||
| 89111-10060 |
ZVW50..GCC |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
ZVW50 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-4ES10 |
ZVW50..GCC |
1 | ||
| 89220-4EV30 |
ZVW50..GCC UAE SPEC |
1 | ||
| 89220-4ES00 |
ZVW50..GCC QATAR SPEC |
1 | ||
| 89220-4ES20 |
ZVW50..GCC JORDAN SPEC |
1 | ||
| 89220-4EV10 |
ZVW50..GCC LEBANON SPEC |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-47710 |
ZVW50..GCC JTEKT/DENSO |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A21 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91673-80620 | ||||
| 93313-15010 | ||||

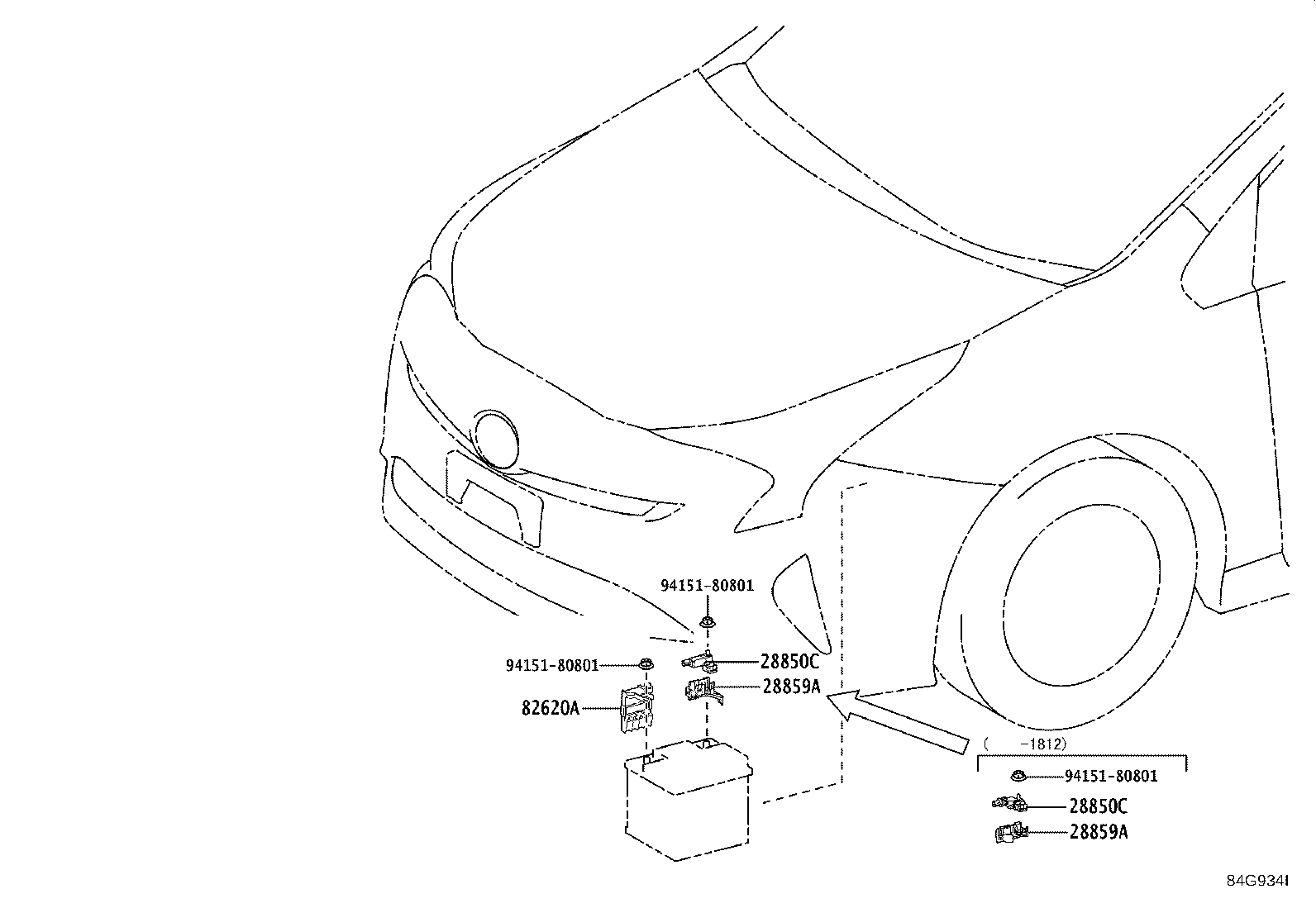

ILLUST NO. 2 OF 8(1511- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-25010 |
2ZRFXE..ZVW50..GCC |
1 | ||
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-25010 |
2ZRFXE..ZVW50..GCC |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-37040 |
2ZRFXE..ZVW50..GCC |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-37040 |
2ZRFXE..ZVW50..GCC |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47090 |
ZVW50 |
1 | ||
| Common parts | ||||
| 94151-80801 | ||||

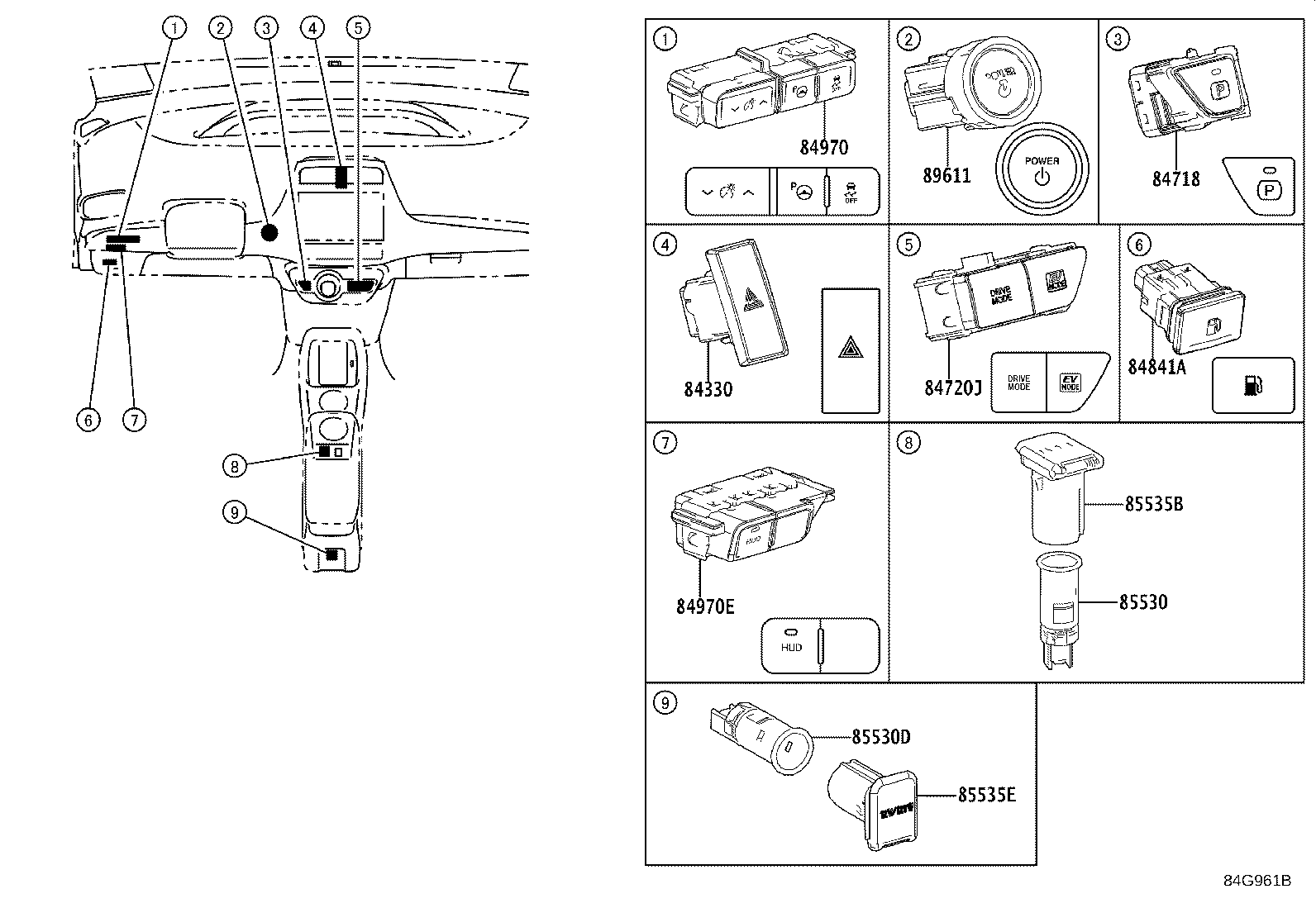

ILLUST NO. 5 OF 8(1511- )GCC
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-47050 |
ZVW50 |
1 | ||
| 84718 - SWITCH, TRANSMISSION SHIFT MAIN | ||||
| 84718-47110 |
ZVW50..GCC |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84010-47320 |
ZVW50..GCC |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-47020 |
ZVW50..GCC |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84010-47260 |
ZVW50..GCC |
1 | ||
| 84970E - SWITCH ASSY, COMBINATION NO.2 | ||||
| 84010-47500 |
ZVW50..GCC HEAD UP DISPLAY-WITH |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZVW50..GCC |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
ZVW50..GCC |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-47030 |
ZVW50..GCC |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-47030 |
ZVW50..GCC |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30142 |
ZVW50 |
1 | ||
ILLUST NO. 8 OF 8(1812- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-47090 |
ZVW50..GCC |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-47090 |
ZVW50..GCC |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW50..GCC |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW50..GCC |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW50..GCC |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW50..GCC |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-26040 |
ZVW50..GCC |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-26040 |
ZVW50..GCC |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-26040 |
ZVW50..GCC |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-26040 |
ZVW50..GCC |
2 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47030 |
ZVW50..GCC |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-12190 |
ZVW50..GCC |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-12190 |
ZVW50..GCC |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-47030 |
ZVW50..GCC |
1 | ||
| 88162-47030 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 88162-47031 |
ZVW50..GCC |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-47031 |
ZVW50..GCC |
1 | ||
| 88162-47030 |
ZVW50..GCC |
1 | ||
| 88162-47030 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
ZVW50..GCC |
1 | ||
| 89747-52010 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
ZVW50..GCC |
1 | ||
| 89747-52010 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90178-06012 | ||||
| Linked diagrams | ||||
| 7504 | ||||

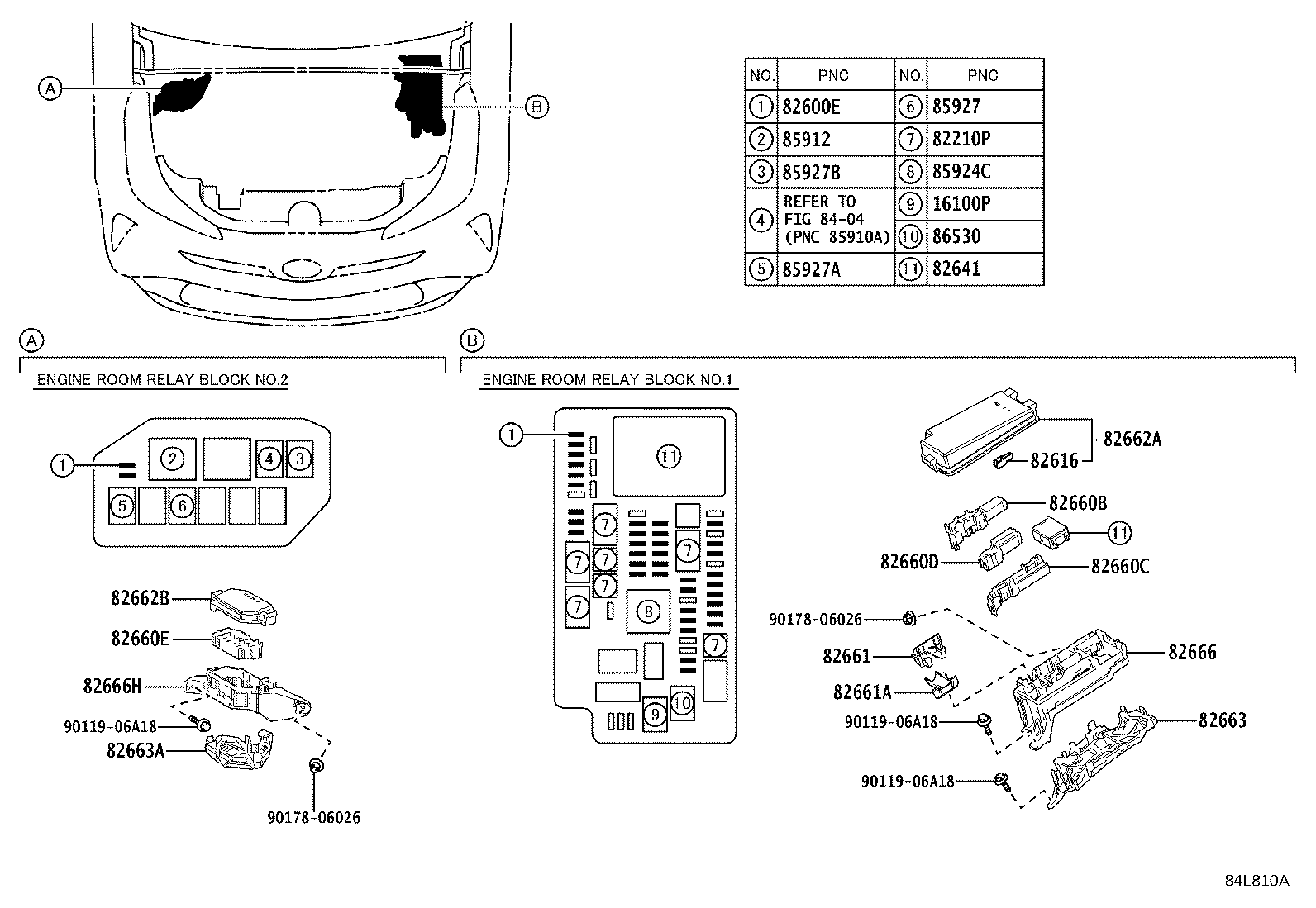

ILLUST NO. 3 OF 8(1511- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-02027 |
2ZRFXE..ZVW50 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08302 |
ZVW50 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
ZVW50 50A-30A-30A,FEMALE |
1 | ||
| 90982-08308 |
ZVW50 40A-30A-30A,FEMALE |
1 | ||
| 90982-08295 |
ZVW50 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
ZVW50 50A,TERM.:FEMALE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
ZVW50 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ZVW50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ZVW50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
ZVW50 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZVW50 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ZVW50 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZVW50 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
ZVW50 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-47070 |
ZVW50 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-47080 |
ZVW50 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-47090 |
ZVW50 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-47100 |
ZVW50 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-47020 |
ZVW50 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-47030 |
ZVW50 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-47260 |
ZVW50 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-47190 |
ZVW50 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-47070 |
ZVW50 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-47090 |
ZVW50 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-47610 |
ZVW50 |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
ZVW50 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
ZVW50..GCC |
1 | ||
| 85924C - RELAY, IGCT | ||||
| 90987-02025 |
ZVW50..GCC |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZVW50..GCC |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZVW50..GCC |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ZVW50..GCC |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ZVW50..GCC |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
