ZVW50L-AHXEBV (2018)

Toyota Prius

Production Dec 2018 - Jun 2020
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1511- )GCC

Click highlighted areas on diagram

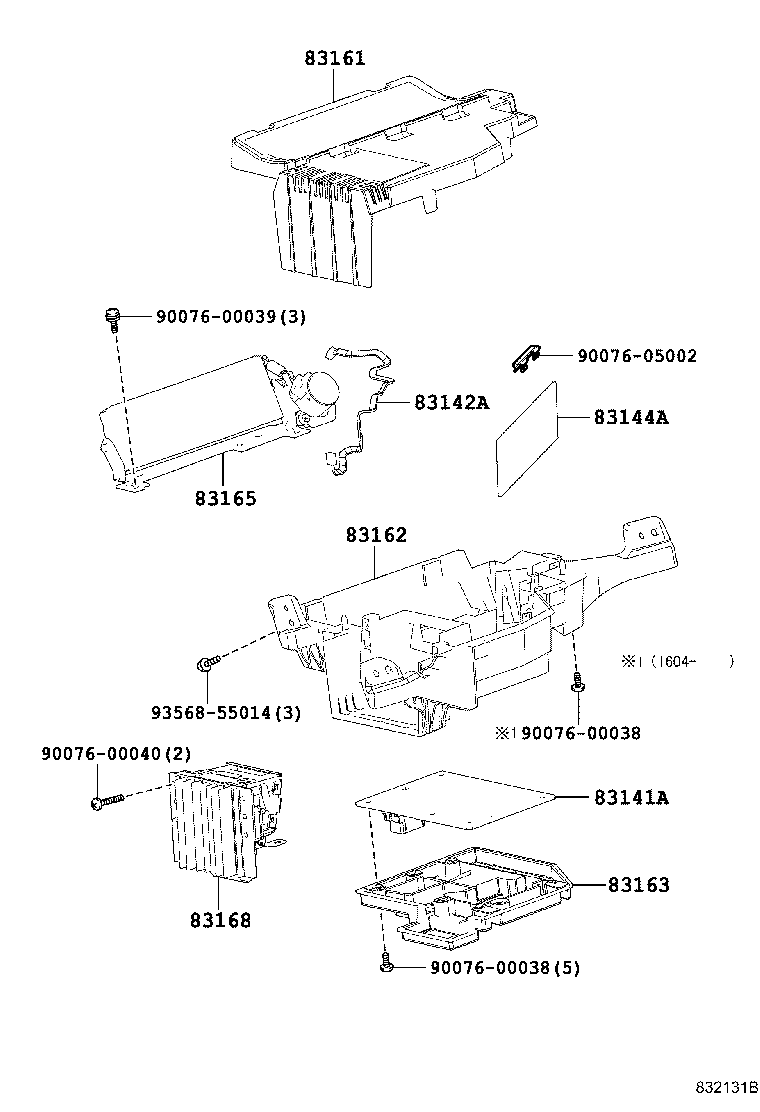

HEAD-UP DISPLAY

diagram 83141A 83142A 83144A 83161 83162 83163 83165 83168 9007600038 9007600038 9007600039 9007600040 9007605002 9356855014
Part # Description Qty Price
83141A - COMPUTER, COMBINATION METER MIRROR
83141-47190

ZVW50..GCC

HEAD UP DISPLAY-WITH

 1
83141-47290

ZVW50..GCC

DECONTENT PACKAGE&HEAD UP DISPLAY-WITH

 1
83141-47220

ZVW50..GCC

DECONTENT PACKAGE&HEAD UP DISPLAY-WITH

 1
83141-47270

ZVW50..GCC

HEAD UP DISPLAY-WITH

 1
83142A - WIRE, COMBINATION METER
83142-47070

ZVW50..GCC

HEAD UP DISPLAY-WITH

 1
83142-47070

ZVW50..GCC

DECONTENT PACKAGE&HEAD UP DISPLAY-WITH

 1
83144A - MIRROR, COMBINATION METER
83144-47070

ZVW50..GCC

DECONTENT PACKAGE&HEAD UP DISPLAY-WITH

 1
83144-47070

ZVW50

HEAD UP DISPLAY-WITH

 1
83161 - CASE, COMBINATION METER MIRROR, NO.1
83161-47071

ZVW50..GCC

DECONTENT PACKAGE&HEAD UP DISPLAY-WITH

 1
83161-47071

ZVW50..GCC

HEAD UP DISPLAY-WITH

 1
83162 - CASE, COMBINATION METER MIRROR, NO.2
83162-47070

ZVW50..GCC

HEAD UP DISPLAY-WITH

 1
83162-47070

ZVW50..GCC

DECONTENT PACKAGE&HEAD UP DISPLAY-WITH

 1
83163 - PLATE, COMBINATION METER MIRROR, NO.1
83164-47070

ZVW50..GCC

HEAD UP DISPLAY-WITH

 1
83164-47070

ZVW50..GCC

DECONTENT PACKAGE&HEAD UP DISPLAY-WITH

 1
83165 - MIRROR, COMBINATION METER, NO.2
83165-47070

ZVW50..GCC

DECONTENT PACKAGE&HEAD UP DISPLAY-WITH

 1
83165-47070

ZVW50..GCC

HEAD UP DISPLAY-WITH

 1
83168 - DISPLAY, COMBINATION
83168-47070

ZVW50..GCC

DECONTENT PACKAGE&HEAD UP DISPLAY-WITH

 1
83168-47130

ZVW50..GCC

DECONTENT PACKAGE&HEAD UP DISPLAY-WITH

 1
83168-47070

ZVW50

HEAD UP DISPLAY-WITH

 1
83168-47130

ZVW50

HEAD UP DISPLAY-WITH

 1
Common parts
90076-00038
90076-00039
90076-00040
90076-05002
93568-55014

ILLUST NO. 1 OF 2(1511- )GCC

Click highlighted areas on diagram

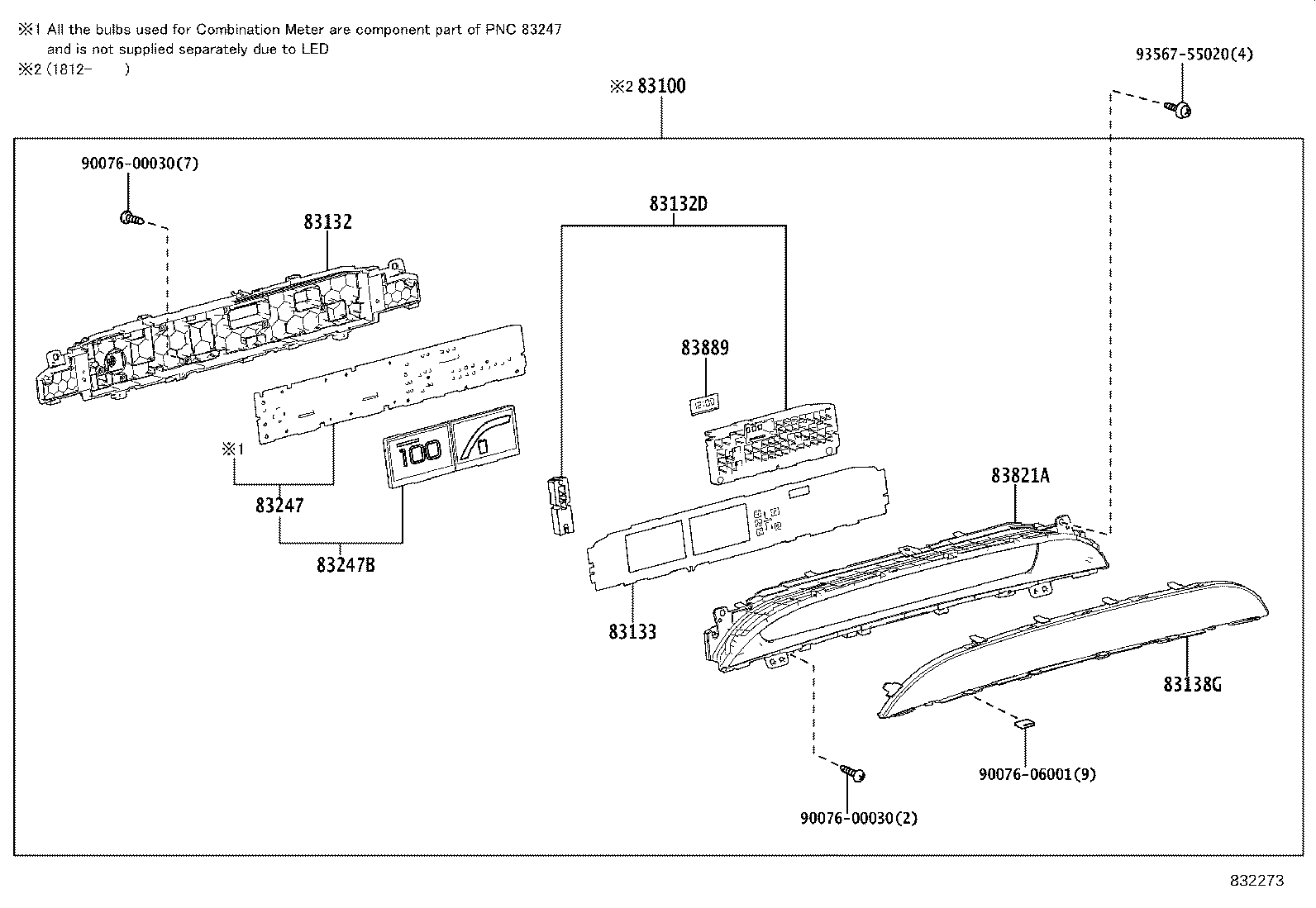

COMBINATION METER

diagram 83100 83132 83132D 83133 83138G 83247 83247B 83821A 83889 9007600030 9007600030 9007606001 9356755020
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-47Z20

ZVW50..GCC

YAZAKI

 1
83800-47V30

ZVW50..GCC

YAZAKI

 1
83132 - CASE, COMBINATION METER
83841-47L20

ZVW50..GCC

 1
83132D - CASE, COMBINATION METER, NO.2
83842-47L20

ZVW50..GCC

 1
83133 - PLATE, COMBINATION METER, NO.1
83811-47S90

ZVW50..GCC

 1
83138G - GLASS, COMBINATION METER
83852-47L70

ZVW50

 1
83247 - PLATE, METER CIRCUIT
83861-47V30

ZVW50..GCC

 1
83861-47Z20

ZVW50..GCC

 1
83247B - PLATE, METER CIRCUIT, NO.2
83862-47V30

ZVW50..GCC

 1
83862-47Z20

ZVW50..GCC

 1
83821A - COVER, COMBINATION METER, NO.1
83821-47L20

ZVW50..GCC

 1
83889 - MULTI-DISPLAY, COMBINATION METER
83889-62010

ZVW50

 1
Common parts
90076-00030
90076-06001
93567-55020
