ZVW50L-AHXEBV (2018)
Toyota Prius

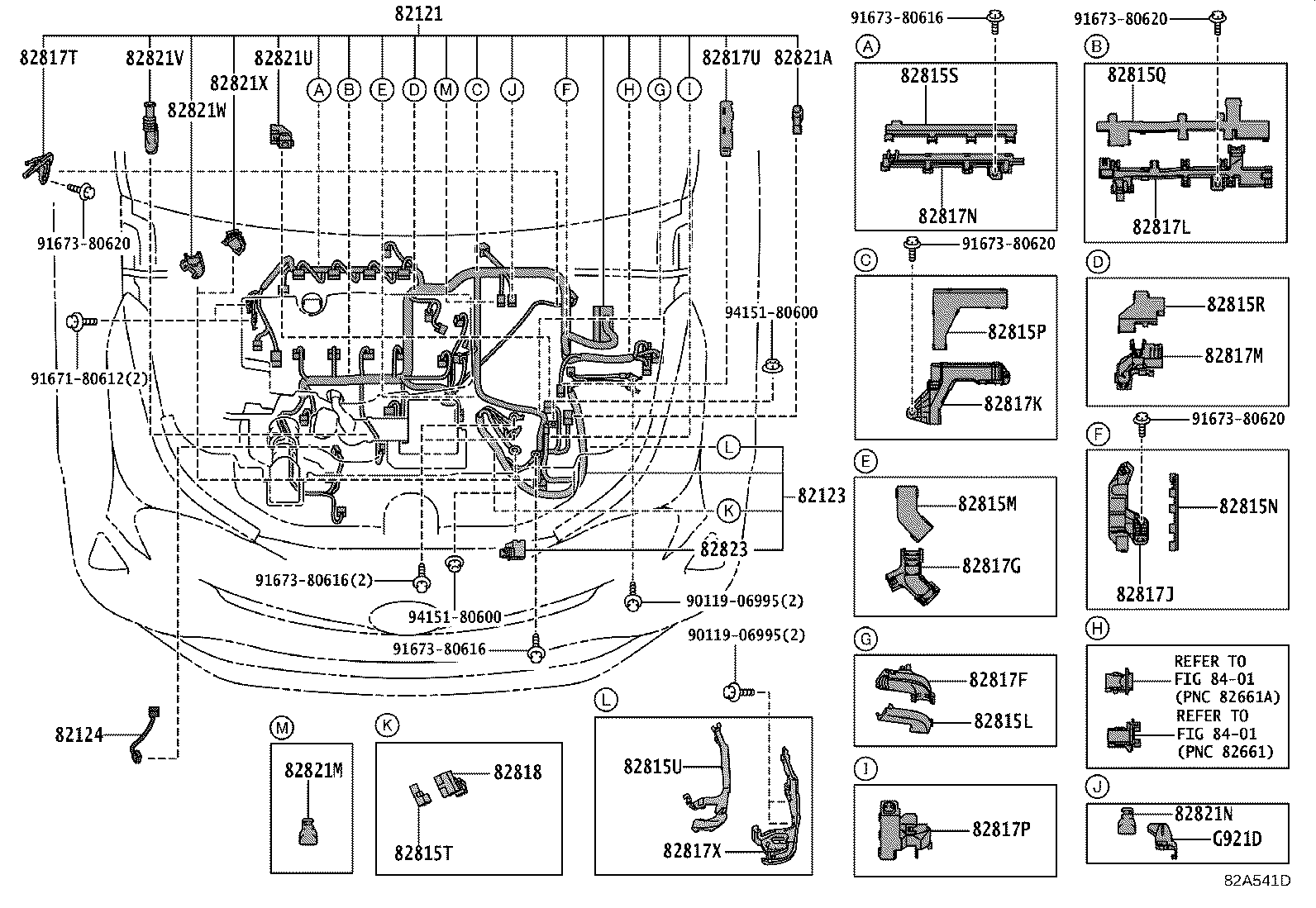

ILLUST NO. 2 OF11(1511- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-47320 |
ZVW50 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-47060 |
ZVW50..GCC |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZVW50..GCC |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-47D80 |
ZVW50 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-47D90 |
ZVW50 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-47E00 |
ZVW50 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-47E10 |
ZVW50 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-47E20 |
ZVW50 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-47E30 |
ZVW50 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-47E40 |
ZVW50 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-47F30 |
ZVW50..GCC |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-47E50 |
ZVW50..GCC |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-47P50 |
ZVW50 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-47P60 |
ZVW50 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-47P70 |
ZVW50 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-47L20 |
ZVW50 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-47P90 |
ZVW50 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-47Q00 |
ZVW50 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-47Q10 |
ZVW50 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-47R30 |
ZVW50 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-47S30 |
ZVW50 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-47S40 |
ZVW50 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-47Q20 |
ZVW50..GCC |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47S50 |
ZVW50..GCC |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-47330 |
ZVW50 |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-47420 |
ZVW50 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-47430 |
ZVW50 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-47050 |
ZVW50..GCC |
1 | ||
| G921D - PROTECTOR, INVERTER CONNECTOR COVER | ||||
| G921D-47020 |
ZVW50..GCC |
1 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 91671-80612 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF11(1511- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-47890 |
ZVW50..GCC DECONTENT PACKAGE&BLIND SPOT MONITOR-WITHOUT |
1 | ||
| 82151-47A10 |
ZVW50..GCC |
1 | ||
| 82151-47890 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-47820 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 82152-47830 |
ZVW50..GCC |
1 | ||
| 82152-47820 |
ZVW50..GCC DECONTENT PACKAGE&BLIND SPOT MONITOR-WITHOUT |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-47380 |
ZVW50..GCC |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-47380 |
ZVW50..GCC |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-47660 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 82184-47651 |
ZVW50..GCC |
1 | ||
| 82184-47650 |
ZVW50..GCC |
1 | ||
| 82184-47661 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-47320 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 82185-47300 |
ZVW50..GCC |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47L50 |
ZVW50 |
2 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47L50 |
ZVW50 |
2 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47T70 |
ZVW50 |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-47T80 |
ZVW50 |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
ILLUST NO. 6 OF11(1511- )
HIGH-TENSION CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 821H1 - WIRE, FLOOR UNDER | ||||
| 821H1-47011 |
ZVW50..GCC |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-47530 |
ZVW50..GCC |
3 | ||
| 82712B - SUPPORT, WIRING HARNESS | ||||
| 82712-47440 |
ZVW50..GCC |
1 | ||
| Common parts | ||||
| 90178-06012 | ||||
| 91673-80620 | ||||
ILLUST NO. 3 OF11(1511- )GCC
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-4ED80 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 82141-4ED81 |
ZVW50..GCC DECONTENT PACKAGE&BLIND SPOT MONITOR-WITHOUT |
1 | ||
| 82141-4ED90 |
ZVW50..GCC |
1 | ||
| 82141-4ED91 |
ZVW50..GCC |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-47550 |
ZVW50..GCC HEAD UP DISPLAY-WITH |
1 | ||
| 82142-47680 |
ZVW50..GCC |
1 | ||
| 82142-47540 |
ZVW50..GCC DECONTENT PACKAGE&HEAD UP DISPLAY-WITH |
1 | ||
| 82142-47670 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-33092 |
ZVW50..GCC |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-47010 |
ZVW50 |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF11(1511- )GCC
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-4E091 |
ZVW50..GCC |
1 | ||
| 82111-4E090 |
ZVW50..GCC |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-47010 |
ZVW50..GCC |
1 | ||
| 82311A - WIRE, AIR CONDITIONER | ||||
| 821H2-47010 |
ZVW50..GCC |
1 | ||
| 82663J - COVER, CONNECTOR HOLDER | ||||
| 82821-47410 |
ZVW50 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47880 |
ZVW50 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47C20 |
ZVW50 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-47C80 |
ZVW50..GCC |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-47D10 |
ZVW50..GCC |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-47D20 |
ZVW50..GCC |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-47D60 |
ZVW50..GCC |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-47N30 |
ZVW50 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47N40 |
ZVW50 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-47N50 |
ZVW50..GCC |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47N80 |
ZVW50..GCC |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47N90 |
ZVW50..GCC |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-47P30 |
ZVW50..GCC |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-50780 |
ZVW50 NO.2 |
2 | ||
| 82821-30650 |
ZVW50 NO.1 |
2 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-50780 |
ZVW50 NO.2 |
2 | ||
| 82821-30650 |
ZVW50 NO.1 |
2 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-50780 |
ZVW50 NO.2 |
2 | ||
| 82821-30650 |
ZVW50 NO.1 |
2 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 90119-06A18 | ||||
| 90119-06A24 | ||||
| 90119-08D22 | ||||
| 90178-06026 | ||||
| 91671-80820 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 8 OF11(1511- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 82715-12A01 | ||||
| 82715-47720 | ||||
| 82715-47740 | ||||
| 82715-47750 | ||||
| 82715-47760 | ||||
| 82715-47770 | ||||
| 82715-47780 | ||||
| 82715-47790 | ||||
| 82715-47800 | ||||
| 82715-47810 | ||||
| 82715-47820 | ||||
| 82715-47830 | ||||
| 82715-47850 | ||||
| 82715-47860 | ||||
| 82715-47A00 | ||||
| 82715-76790 | ||||
| 89348-50050 | ||||
| 90179-06274 | ||||
| 91671-80612 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| Linked diagrams | ||||
| 5804 | ||||

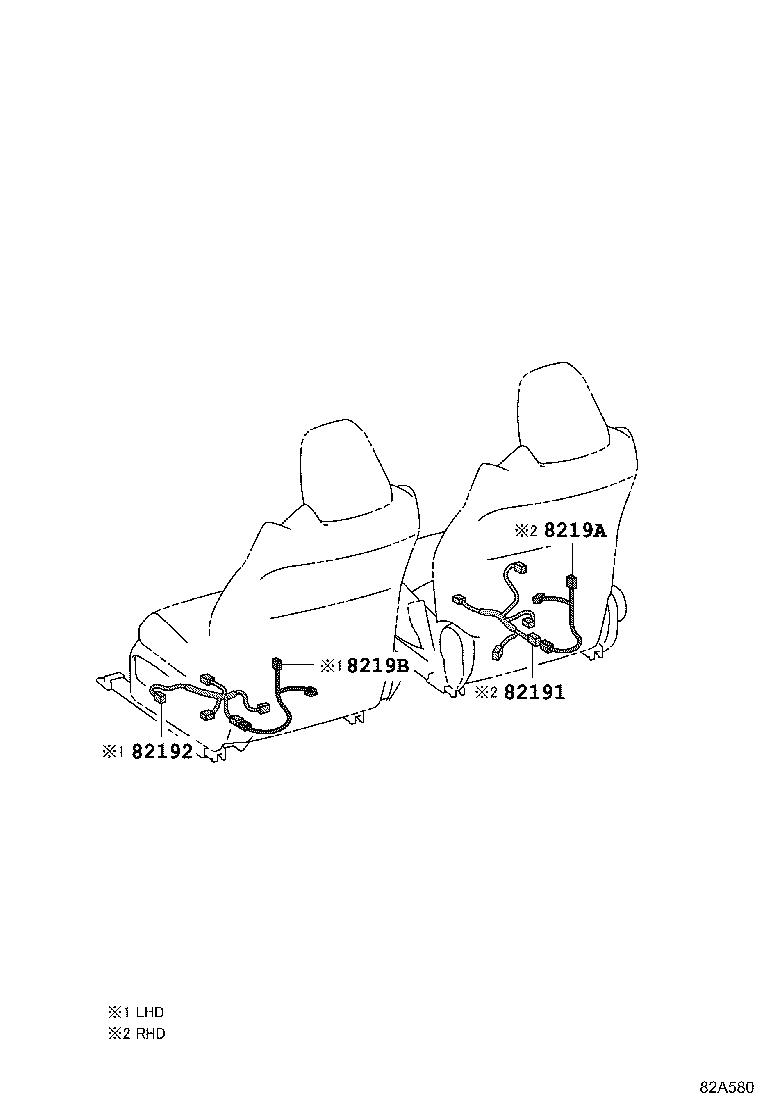

ILLUST NO. 7 OF11(1511- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-47160 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 82192-47090 |
ZVW50..GCC |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-33150 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 8219B-12020 |
ZVW50..GCC |
1 | ||
ILLUST NO. 9 OF11(1511- )
CONNECTER 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-47A10 | ||||
| 82824-47A20 | ||||
| 90980-10794 | ||||
| 90980-10942 | ||||
| 90980-11019 | ||||
| 90980-11073 | ||||
| 90980-11074 | ||||
| 90980-11148 | ||||
| 90980-11246 | ||||
| 90980-11349 | ||||
| 90980-12A92 | ||||
| 90980-12F30 | ||||
| 90980-WA052 | ||||

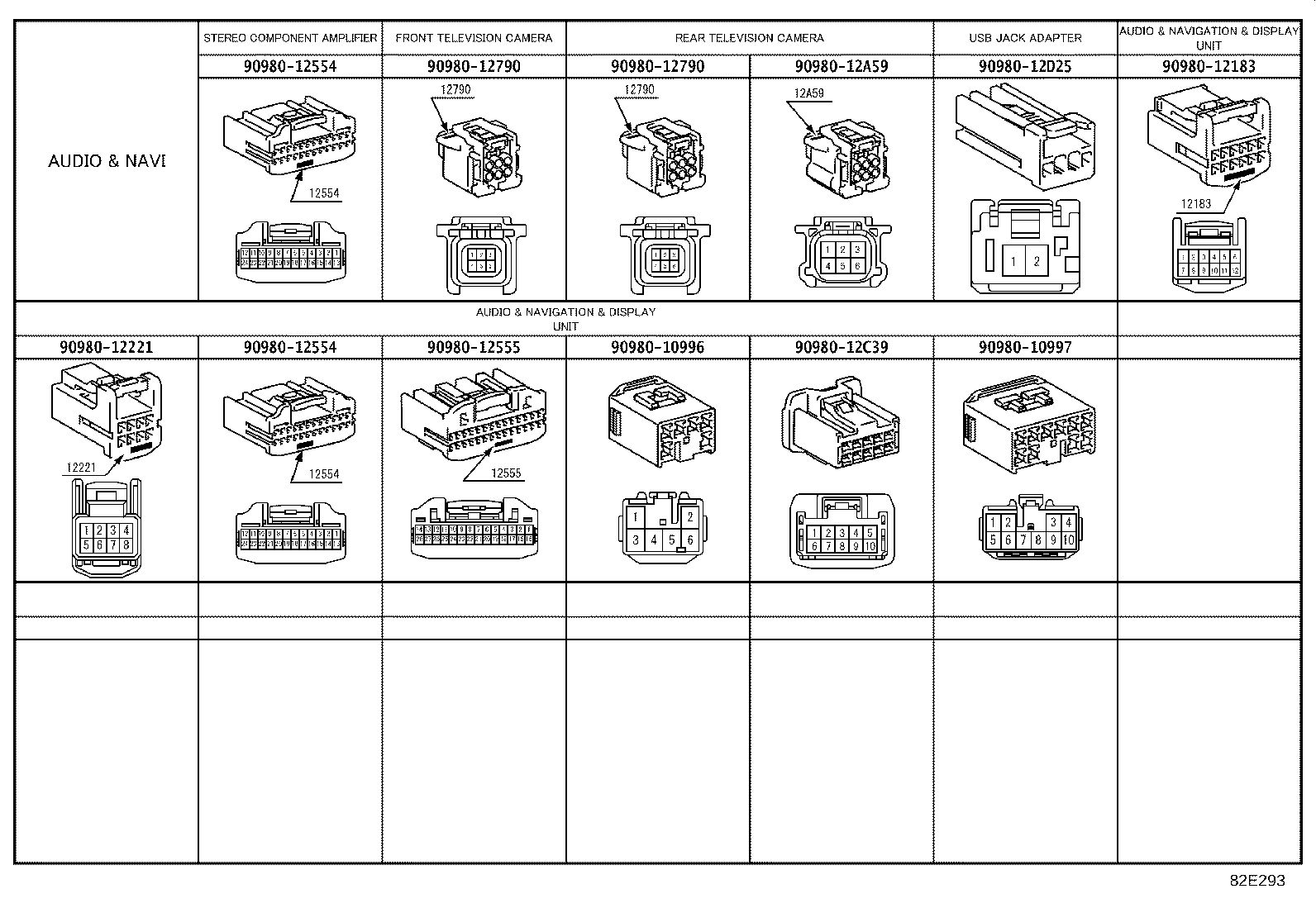

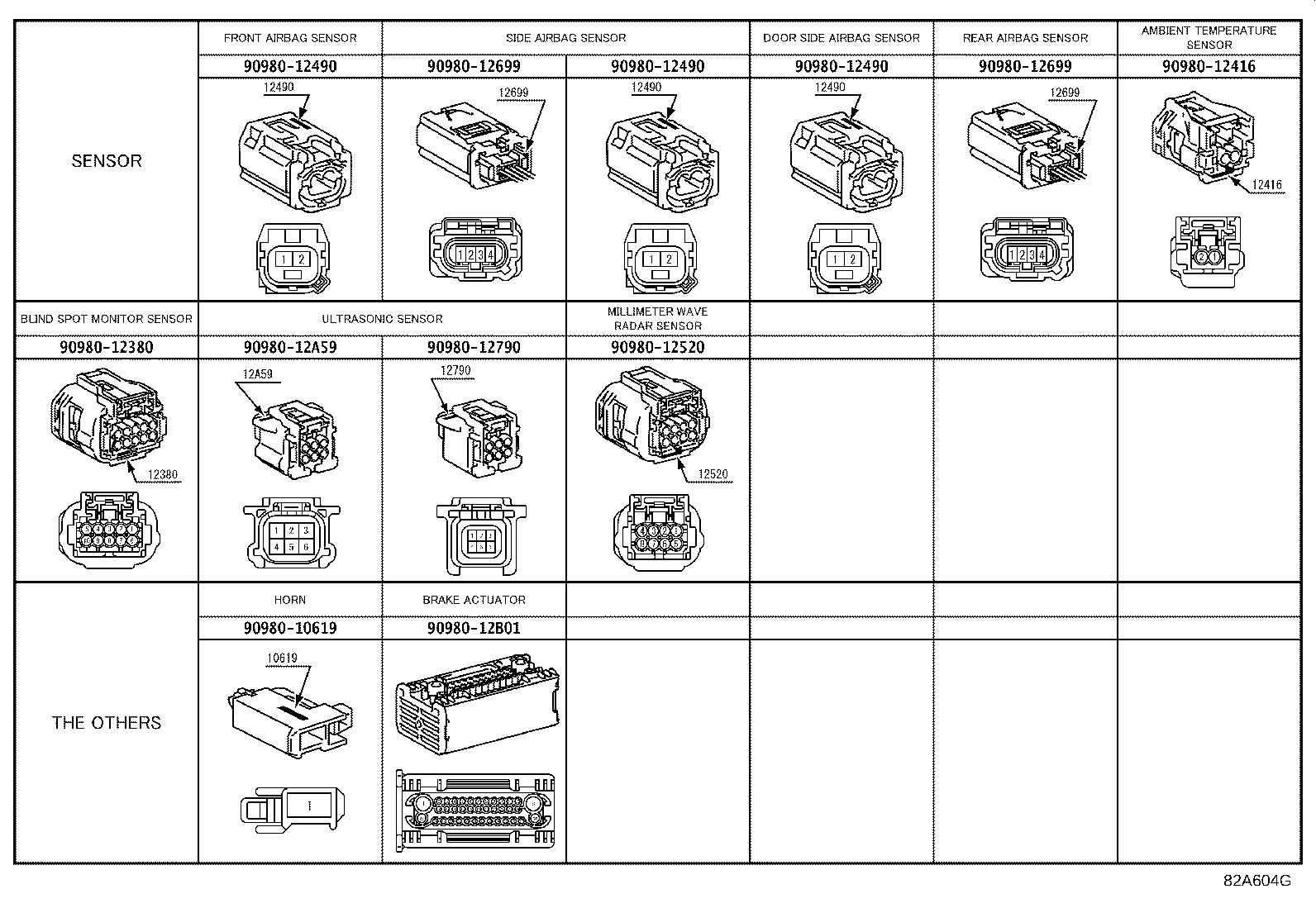

ILLUST NO.10 OF11(1511- )
CONNECTER 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12B01 | ||||
ILLUST NO. 5 OF11(1511- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-4E690 |
ZVW50..GCC |
1 | ||
| 82161-4E691 |
ZVW50..GCC |
1 | ||
| 82161-4E711 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY) |
1 | ||
| 82161-4E710 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-47P50 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 82162-47P70 |
ZVW50..GCC |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-47820 |
ZVW50..GCC HEAD UP DISPLAY-WITH |
1 | ||
| 82171-47850 |
ZVW50..GCC DECONTENT PACKAGE |
1 | ||
| 82171-47870 |
ZVW50..GCC DECONTENT PACKAGE&HEAD UP DISPLAY-WITH |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-47150 |
ZVW50..GCC |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
ZVW50 |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-21040 |
ZVW50 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-26180 |
ZVW50 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60220 |
ZVW50 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-48370 |
ZVW50 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-52A60 |
ZVW50..GCC |
1 | ||
| 82821R - COVER, CONNECTOR | ||||
| 90980-12373 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8601 | ||||
ILLUST NO.11 OF11(1511- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12183 | ||||
| 90980-12221 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12C39 | ||||
| 90980-12D25 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
