ZVW50L-AHXEBV (2018)

Toyota Prius

Production Dec 2018 - Jun 2020
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

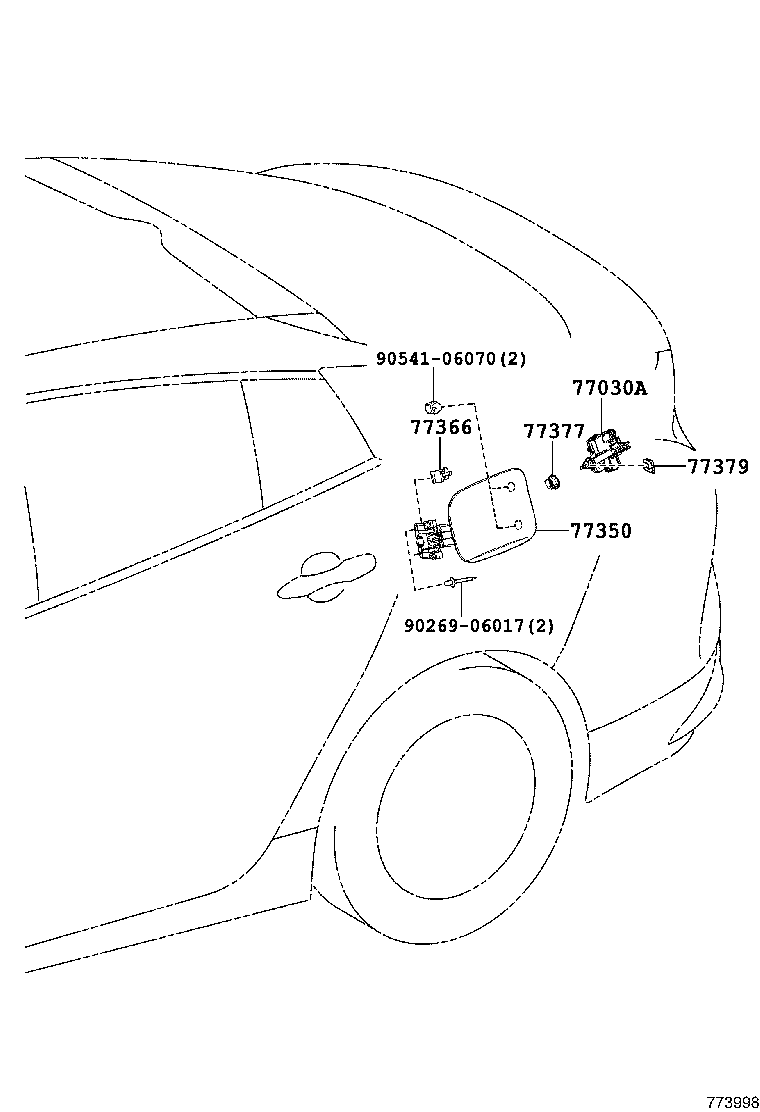

ILLUST NO. 3 OF 3(1511- )

Click highlighted areas on diagram

FUEL LID OPENER

diagram 77030A 77350 77366 77377 77379 9026906017 9054106070
Part # Description Qty Price
77030A - LOCK ASSY, FUEL LID W/MOTOR
77030-47041

ZVW50..GCC

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-47060

ZVW50..GCC

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-47020

ZVW50..GCC

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-47040

ZVW50..GCC

 1
77379 - SPACER, FUEL INLET BOX COVER, NO.2
77379-47010

ZVW50..GCC

 1
Common parts
90269-06017
90541-06070

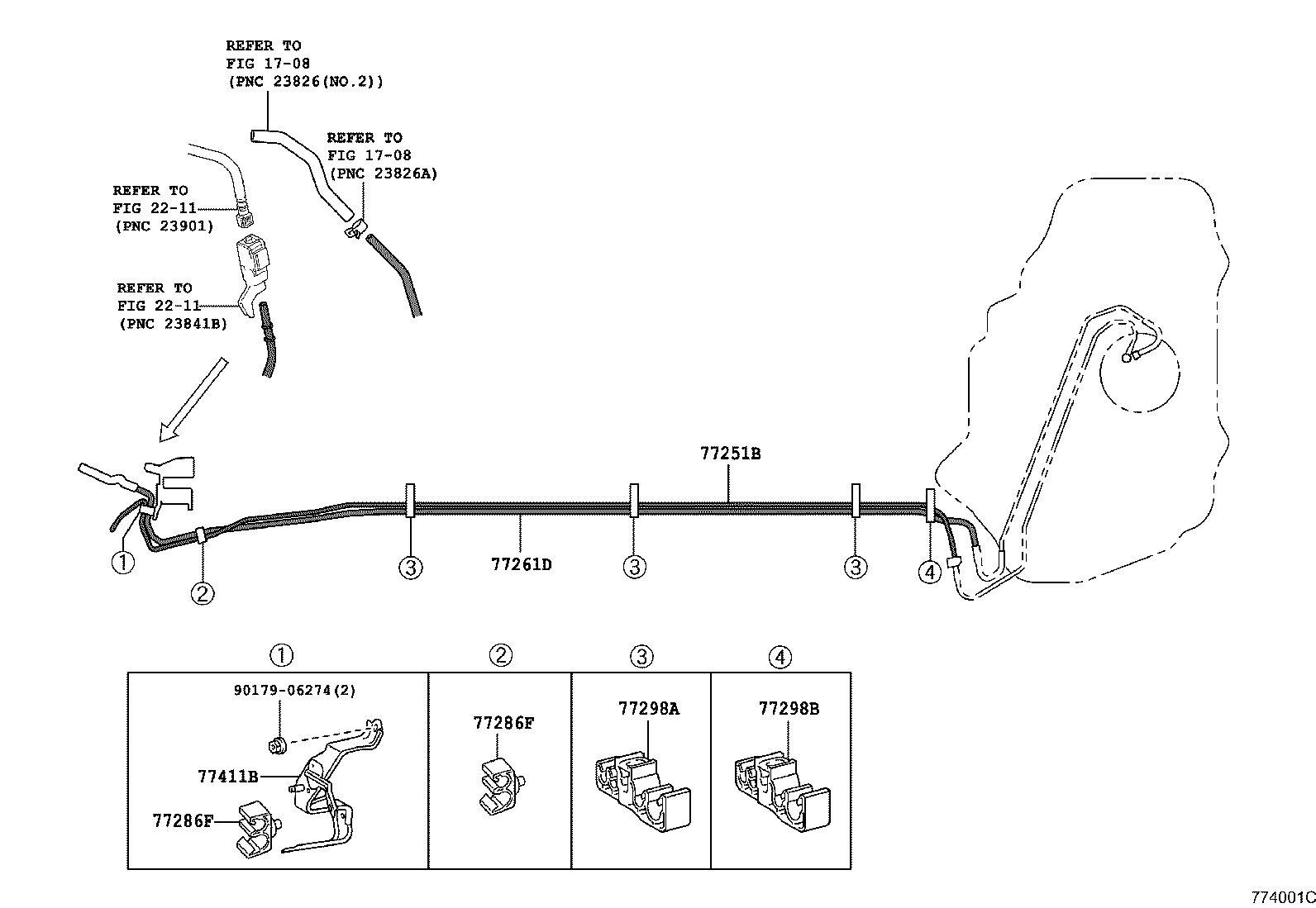

ILLUST NO. 2 OF 3(1511- )

Click highlighted areas on diagram

FUEL TUBE

diagram 1708 1708 2211 2211 77251B 77261D 77286F 77286F 77298A 77298B 77411B 9017906274
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-47110

ZVW50..GCC

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-47120

ZVW50..GCC

 1
77286F - CLAMP, FUEL TUBE, NO.2
77286-78040

ZVW50..GCC

 2
77286F - CLAMP, FUEL TUBE, NO.2
77286-78040

ZVW50..GCC

 2
77298A - CLAMP, FUEL TUBE, NO.4
77298-78040

ZVW50..GCC

 3
77298B - CLAMP, FUEL TUBE, NO.4
77298-78050

ZVW50..GCC

 1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-47030

ZVW50..GCC

 1
Common parts
90179-06274
Linked diagrams
1708
2211

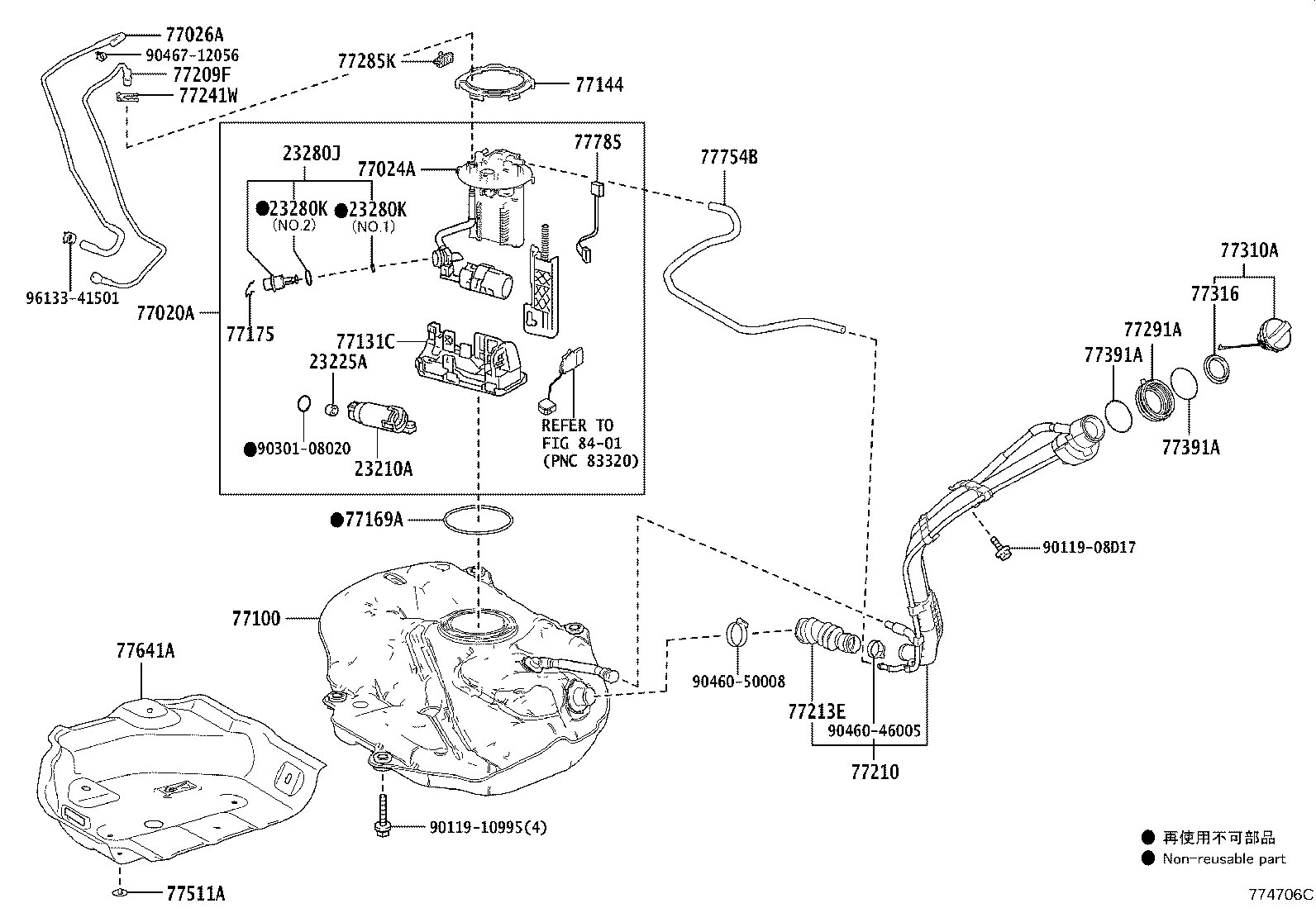

ILLUST NO. 1 OF 3(1812- )

Click highlighted areas on diagram

FUEL TANK

diagram 23210A 23225A 23280J 23280K 23280K 77020A 77024A 77026A 77100 77131C 77144 77169A 77175 77209F 77210 77213E 77241W 77285K 77291A 77310A 77316 77391A 77391A 77511A 77641A 77754B 77785 8401 9011908D17 9011910995 9030108020 9046046005 9046050008 9046712056 9613341501
Part # Description Qty Price
23210A - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-37020

2ZRFXE..ZVW50..GCC

 1
23225A - SPACER, FUEL PUMP
23225-21020

2ZRFXE..ZVW50

 1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-21010

2ZRFXE..ZVW50

 1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-15024

2ZRFXE..ZVW50

NO.2:REFER ILLUST.

 1
90301-04013

2ZRFXE..ZVW50

NO.1:REFER ILLUST.

 1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-15024

2ZRFXE..ZVW50

NO.2:REFER ILLUST.

 1
90301-04013

2ZRFXE..ZVW50

NO.1:REFER ILLUST.

 1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-12A60

ZVW50

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-10020

ZVW50

 1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-47040

ZVW50..GCC

 1
77100 - TANK ASSY, FUEL
77001-47220

ZVW50

 1
77131C - SUB-TANK, FUEL, NO.1
77103-12130

ZVW50

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-30030

ZVW50

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-47030

ZVW50

 1
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-78010

ZVW50

 1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-47100

ZVW50

 1
77210 - PIPE ASSY, FUEL TANK FILLER
77210-47360

ZVW50..GCC

 1
77213E - HOSE, FUEL TANK TO FILLER PIPE
77213-12360

ZVW50..GCC

 1
77241W - CLIP, TUBE JOINT
77241-33011

ZVW50

 1
77285K - CLAMP, FUEL TUBE, NO.1
77285-30350

ZVW50

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-47040

ZVW50..GCC

 1
77310A - CAP ASSY, FUEL TANK
77300-12020

ZVW50..GCC

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

ZVW50..GCC

 1
77391A - RING, FUEL INLET BOX
77391-12020

ZVW50..GCC

 2
77391A - RING, FUEL INLET BOX
77391-12020

ZVW50..GCC

 2
77511A - BRACKET, FUEL TANK
77512-35140

ZVW50..GCC

 4
77641A - PROTECTOR, FUEL TANK, NO.1
77641-47070

ZVW50..GCC

 1
77754B - HOSE, CHARCOAL CANISTER OUTLET
77754-47090

ZVW50..GCC

 1
77785 - HARNESS, FUEL PUMP
77785-12010

ZVW50

 1
Common parts
90119-08D17
90119-10995
90301-08020
90460-46005
90460-50008
90467-12056
96133-41501
Linked diagrams
8401
