ZVW50L-AHXEBV (2018)

Toyota Prius

Production Dec 2018 - Jun 2020
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

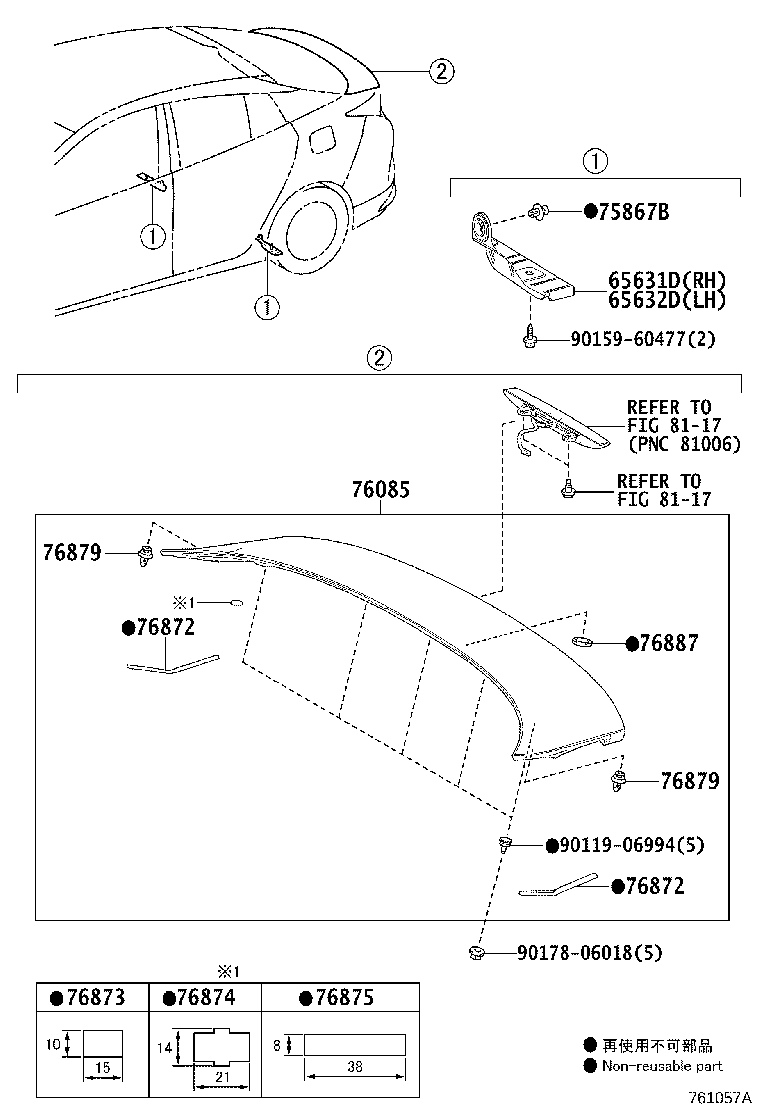

Click highlighted areas on diagram

diagram 65631D 65632D 75867B 76085 76872 76872 76873 76874 76875 76879 76879 76887 8117 8117 9011906994 9015960477 9017806018
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-47080

ZVW50..GCC

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-47080

ZVW50..GCC

 1
75867B - CLIP, ROCKER PANEL MOULDING
90467-07222

ZVW50..GCC

 2
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-47060

ZVW50

 2
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-47060

ZVW50

 2
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-47020

ZVW50

 5
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-47010

ZVW50

 10
76879 - CLIP, REAR SPOILER, NO.1
90467-09206

ZVW50

 2
76879 - CLIP, REAR SPOILER, NO.1
90467-09206

ZVW50

 2
76887 - SEAL, REAR SPOILER
76887-47010

ZVW50

 1
Common parts
90119-06994
90159-60477
90178-06018
Linked diagrams
8117
