ZVW50L-AHXEBV (2018)

Toyota Prius

Production Dec 2018 - Jun 2020
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

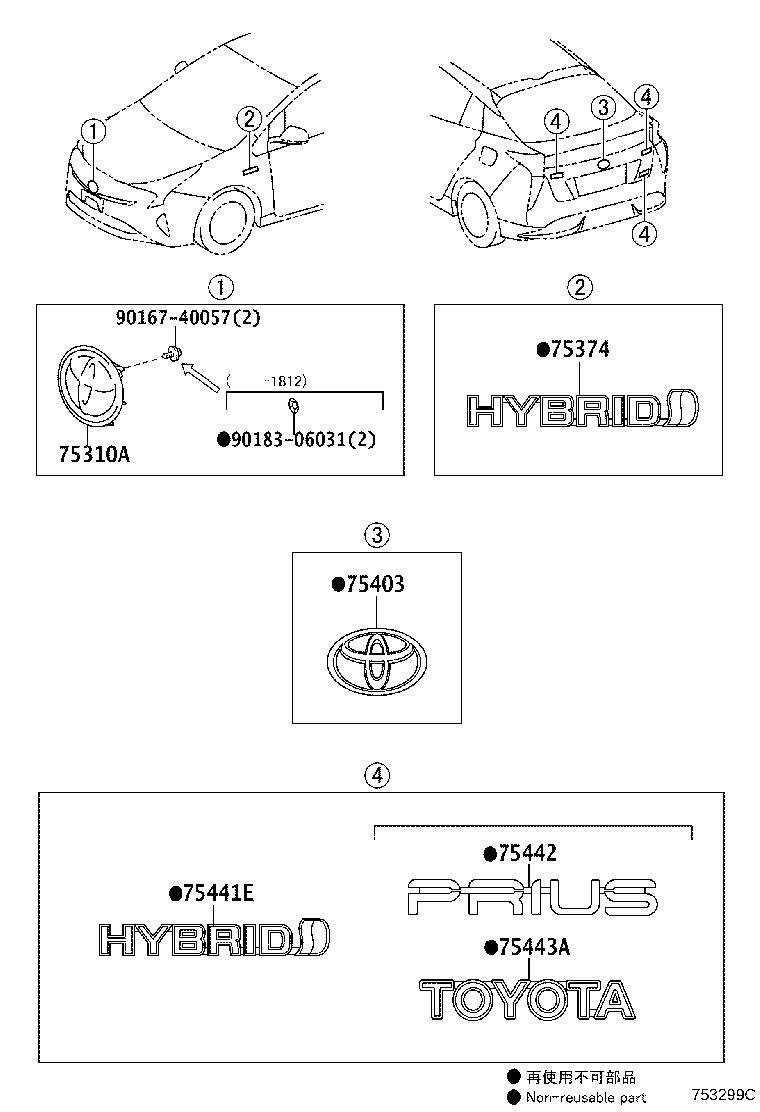

Click highlighted areas on diagram

diagram 75310A 75374 75403 75441E 75442 75443A 9016740057 9018306031
Part # Description Qty Price
75310A - EMBLEM ASSY, RADIATOR GRILLE
75310-33050

ZVW50

 1
75374 - EMBLEM, SIDE PANEL
75374-47140

ZVW50

RH

 1
75374-47150

ZVW50

LH

 1
75403 - ORNAMENT SUB-ASSY, BACK DOOR
75403-48010

ZVW50

 1
75441E - PLATE, BACK DOOR NAME, NO.1
75441-47220

ZVW50..GCC

HYBRID S

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-47200

ZVW50

PRIUS

 1
Common parts
90167-40057
90183-06031
