ZVW50L-AHXEBV (2018)
Toyota Prius
(1511- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1511- )
SEAT BACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-47160 |
ZVW50 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-47100 |
ZVW50 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-4785024 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK/BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71077-47850B6 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY/BLACK/TURQUOISE,TRIM1# |
1 | ||
| 71077-47850B6 |
ZVW50..GCC SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY/BLACK/TURQUOISE,TRIM1# |
1 | ||
| 71077-47830B4 |
ZVW50..GCC COOL GRAY/BLACK/TURQUOISE,TRIM1# |
1 | ||
| 71077-4785024 |
ZVW50..GCC SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK/BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71077-47830C9 |
ZVW50..GCC BLACK/BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-47560B5 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY/BLACK/TURQUOISE,TRIM1# |
1 | ||
| 71078-4756023 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK/BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71078-47550C9 |
ZVW50 BLACK/BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71078-47560B5 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY/BLACK/TURQUOISE,TRIM1# |
1 | ||
| 71078-47550B4 |
ZVW50 COOL GRAY/BLACK/TURQUOISE,TRIM1# |
1 | ||
| 71078-4756023 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK/BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-47030 |
ZVW50..GCC |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-47030 |
ZVW50..GCC |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-47040 |
ZVW50..GCC |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-47190 |
ZVW50 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-47110 |
ZVW50 |
1 | ||
| 71701C - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-47020 |
ZVW50 |
1 | ||
| 71702C - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-47020 |
ZVW50 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030B0 |
ZVW50 W/O(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71930-47050B0 |
ZVW50 W(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71931-47030C4 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030B0 |
ZVW50 W/O(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71930-47050B0 |
ZVW50 W(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71931-47030C4 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030B0 |
ZVW50 W/O(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71930-47050B0 |
ZVW50 W(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71931-47030C4 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71931-47030B0 |
ZVW50 W/O(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71930-47050B0 |
ZVW50 W(LOCK),COOL GRAY,TRIM10 |
2 | ||
| 71931-47030C4 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-47650C1 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK/DK.GRAY,TRIM1#,2# |
2 | ||
| 71940-47650C0 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
2 | ||
| 71940-47510C3 |
ZVW50 BLACK,TRIM1#,2# |
2 | ||
| 71940-47650C0 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
2 | ||
| 71940-47650C1 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK/DK.GRAY,TRIM1#,2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-47650C1 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK/DK.GRAY,TRIM1#,2# |
2 | ||
| 71940-47650C0 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
2 | ||
| 71940-47510C3 |
ZVW50 BLACK,TRIM1#,2# |
2 | ||
| 71940-47650C0 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
2 | ||
| 71940-47650C1 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK/DK.GRAY,TRIM1#,2# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
1 | ||
| 71931-47030C4 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
1 | ||
| 71931-47030B0 |
ZVW50 W/O(LOCK),COOL GRAY,TRIM10 |
1 | ||
| 71930-47050B0 |
ZVW50 W(LOCK),COOL GRAY,TRIM10 |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
ZVW50 W(LOCK),BLACK,TRIM10,2# |
1 | ||
| 71931-47030C4 |
ZVW50 W/O(LOCK),BLACK,TRIM10,2# |
1 | ||
| 71931-47030B0 |
ZVW50 W/O(LOCK),COOL GRAY,TRIM10 |
1 | ||
| 71930-47050B0 |
ZVW50 W(LOCK),COOL GRAY,TRIM10 |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-47340C2 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
1 | ||
| 71960-47340C0 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
1 | ||
| 71960-47340C0 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
1 | ||
| 71960-47290C5 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 71960-47340C2 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
1 | ||
| 72061A - BASE SUB-ASSY, REAR SEAT BACK LOCK, RH | ||||
| 72061-47010 |
ZVW50..GCC |
1 | ||
| 72062 - BASE SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72062-47010 |
ZVW50..GCC |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-47050C2 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-47050C2 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72667-47010C1 |
ZVW50 BLACK,TRIM1#,2# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72667-47010C1 |
ZVW50 BLACK,TRIM1#,2# |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-47280B4 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY,TRIM1# |
1 | ||
| 72830-47280C9 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM2# |
1 | ||
| 72830-47280B4 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY,TRIM1# |
1 | ||
| 72830-47280C9 |
ZVW50 SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM2# |
1 | ||
| 72830-47260C8 |
ZVW50 BLACK,TRIM2# |
1 | ||
| 72830-47260B5 |
ZVW50 COOL GRAY,TRIM1# |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-22010 |
ZVW50 |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-47050C1 |
ZVW50 BLACK,TRIM2# |
1 | ||
| 72868-47050B0 |
ZVW50 COOL GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 78899-60070 | ||||
| 90206-12064 | ||||
| 91511-80820 | ||||
| 91551-80835 | ||||
| 91552-K1025 | ||||
| 91672-81025 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1511- )

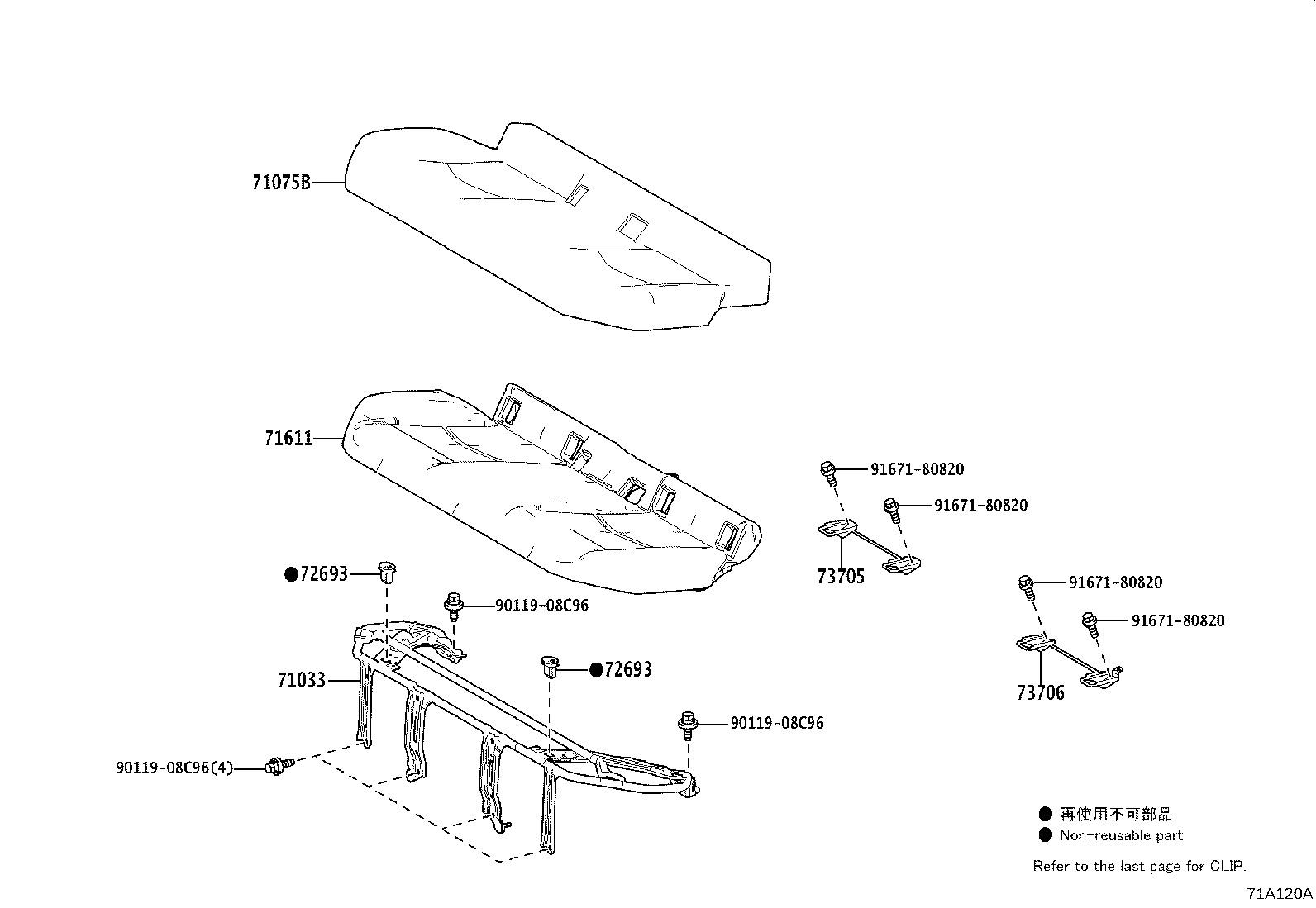

SEAT CUSHION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-47050 |
ZVW50..GCC |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-47660B2 |
ZVW50..GCC COOL GRAY,TRIM1# |
1 | ||
| 71075-47680B2 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY,TRIM1# |
1 | ||
| 71075-47680C2 |
ZVW50..GCC SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM2# |
1 | ||
| 71075-47680B2 |
ZVW50..GCC SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),COOL GRAY,TRIM1# |
1 | ||
| 71075-47660C3 |
ZVW50..GCC BLACK,TRIM2# |
1 | ||
| 71075-47680C2 |
ZVW50..GCC EXPORT UPPER PACKAGE&FRONT SEAT-DRIVER(8-WAY)&SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZVW50..GCC |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZVW50..GCC |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-47060 |
ZVW50..GCC |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73705-47070 |
ZVW50..GCC |
1 | ||
| Common parts | ||||
| 90119-08C96 | ||||
| 91671-80820 | ||||
