ZVW50L-AHXEBV (2018)
Toyota Prius
Production
Dec 2018
-
Jun 2020
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1511- )

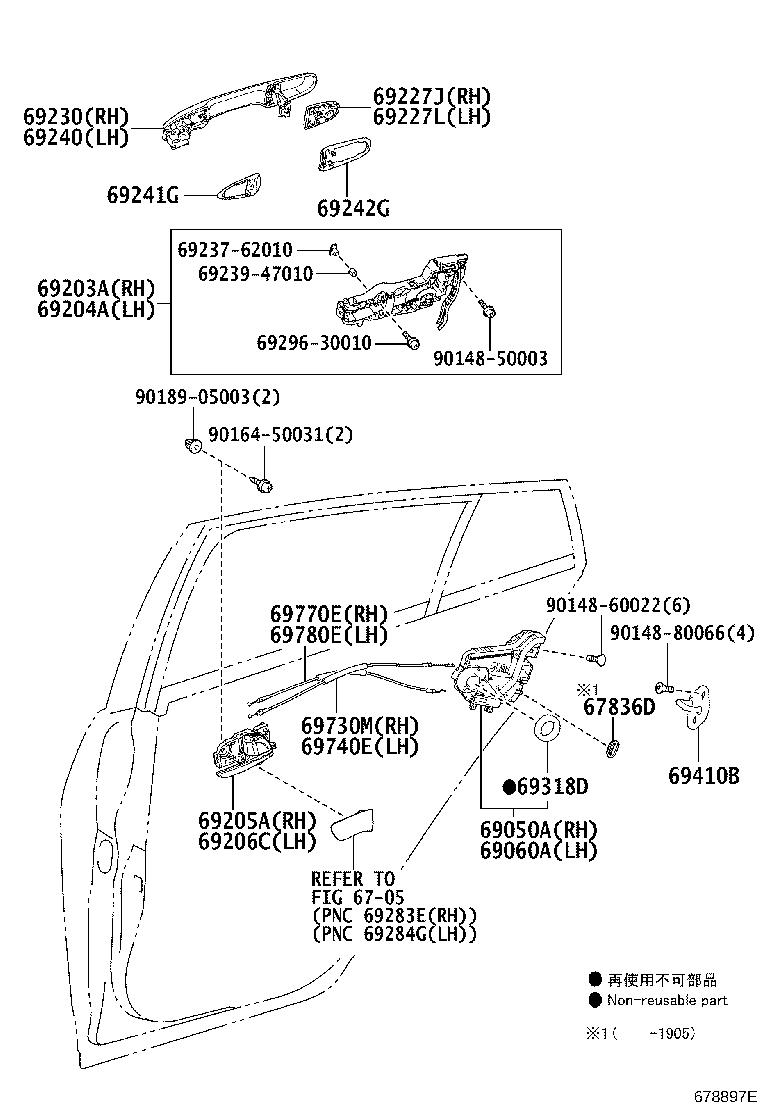

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67836D - COVER, REAR DOOR LOCK CHILD PROTECTION | ||||
| 67836-33030 |
ZVW50 |
2 | ||
| 69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH | ||||
| 69050-52250 |
ZVW50..GCC |
1 | ||
| 69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH | ||||
| 69060-52280 |
ZVW50..GCC |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-47040 |
ZVW50 |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-47030 |
ZVW50 |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-47070C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-47070C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-47020 |
ZVW50 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69227-47020 |
ZVW50 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69211-47021A0 |
ZVW50 SUPER WHITE 2,040 |
1 | ||
| 69211-47021B1 |
ZVW50 GRAY ME.,1G3 |
1 | ||
| 69211-47021B0 |
ZVW50 SILVER ME.,1F7 |
1 | ||
| 69211-47021D6 |
ZVW50 EMOTIONAL RED 2,3U5 |
1 | ||
| 69211-47021C0 |
ZVW50 ATTITUDE BLACK MC.,218 |
1 | ||
| 69211-47021J9 |
ZVW50 BLUE ME.,8X7 |
1 | ||
| 69211-47021H0 |
ZVW50 FROSTY GREEN MC.,781 |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69211-47021C0 |
ZVW50 ATTITUDE BLACK MC.,218 |
1 | ||
| 69211-47021H0 |
ZVW50 FROSTY GREEN MC.,781 |
1 | ||
| 69211-47021D6 |
ZVW50 EMOTIONAL RED 2,3U5 |
1 | ||
| 69211-47021B0 |
ZVW50 SILVER ME.,1F7 |
1 | ||
| 69211-47021A0 |
ZVW50 SUPER WHITE 2,040 |
1 | ||
| 69211-47021J9 |
ZVW50 BLUE ME.,8X7 |
1 | ||
| 69211-47021B1 |
ZVW50 GRAY ME.,1G3 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-47020 |
ZVW50 |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-47030 |
ZVW50 |
2 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-47010 |
ZVW50..GCC |
2 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-20110 |
ZVW50..GCC |
2 | ||
| 69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER | ||||
| 69730-47080 |
ZVW50..GCC |
1 | ||
| 69740E - CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER | ||||
| 69730-47080 |
ZVW50..GCC |
1 | ||
| 69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K | ||||
| 69770-47100 |
ZVW50..GCC |
1 | ||
| 69780E - CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK K | ||||
| 69770-47100 |
ZVW50..GCC |
1 | ||
| Common parts | ||||
| 69237-62010 | ||||
| 69239-47010 | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90164-50031 | ||||
| 90189-05003 | ||||
| Linked diagrams | ||||
| 6705 | ||||
