ZVW50L-AHXEBV (2018)
Toyota Prius

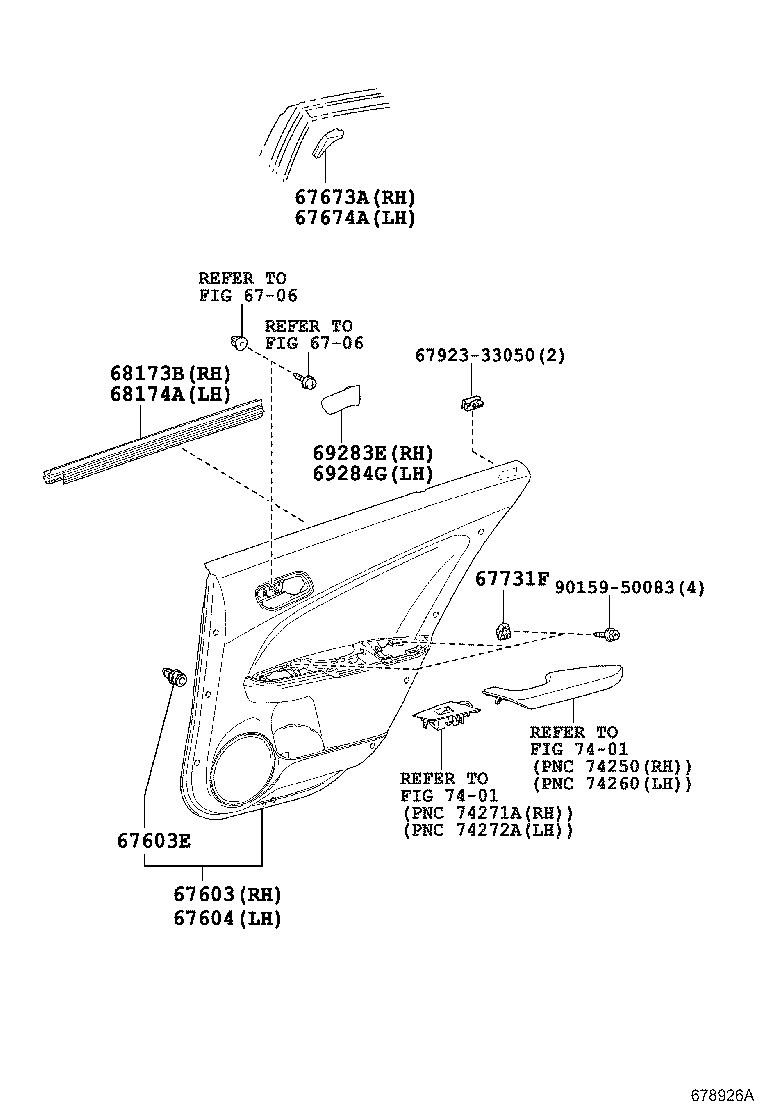

ILLUST NO. 2 OF 2(1511- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZVW50 |
16 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-47030 |
ZVW50..GCC |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-47020 |
ZVW50..GCC |
1 | ||
| 67731F - SPACER, SIDE TRIM, NO.1 | ||||
| 67731-53010 |
ZVW50..GCC |
4 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-47060 |
ZVW50 |
1 | ||
| 68173-47061 |
ZVW50..GCC |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-47061 |
ZVW50..GCC |
1 | ||
| 68174-47060 |
ZVW50 |
1 | ||
| 69283E - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-47020C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 69284G - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-47020C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 67923-33050 | ||||
| 90159-50083 | ||||
| Linked diagrams | ||||
| 6706 | ||||
| 7401 | ||||

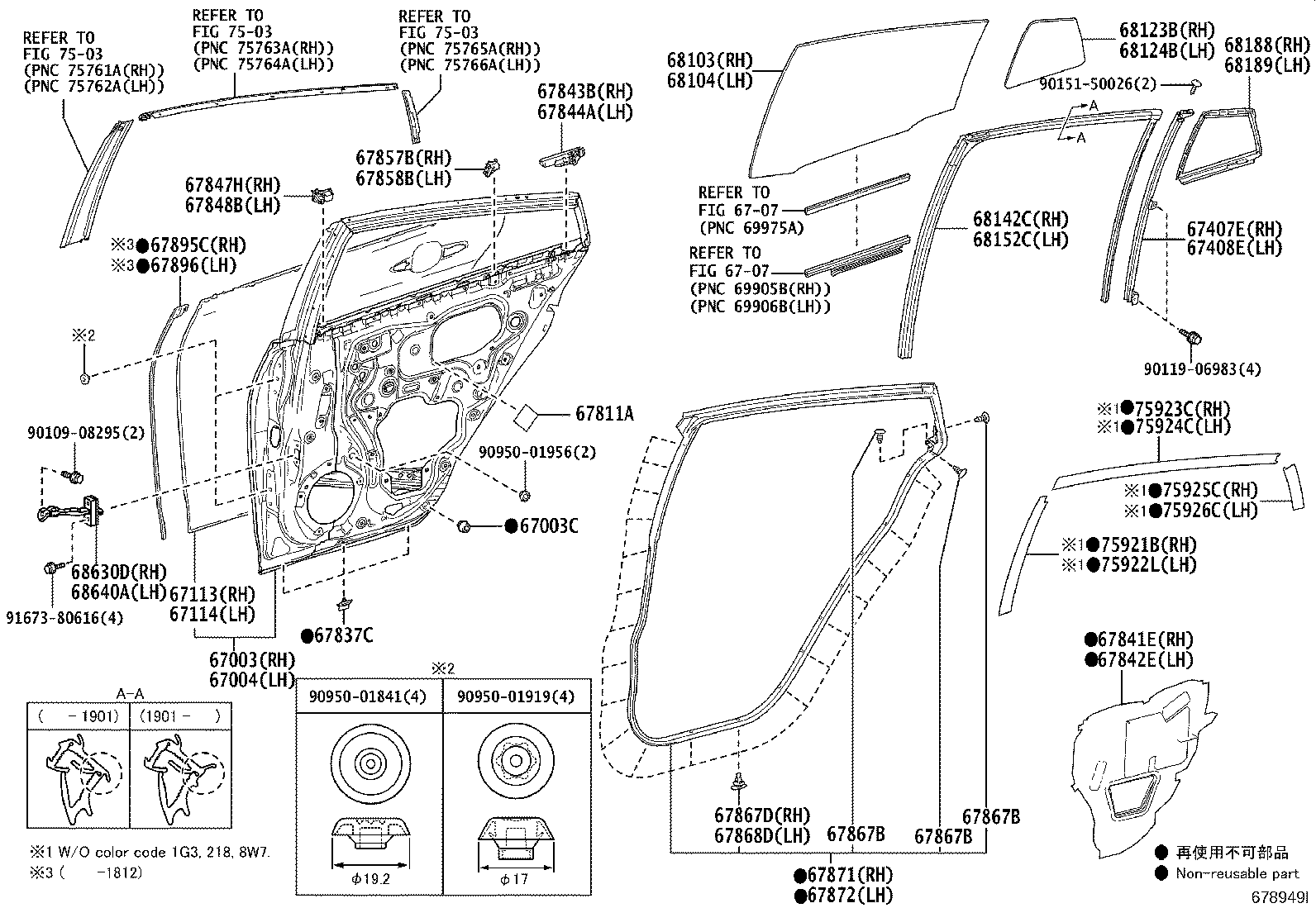

ILLUST NO. 1 OF 2(1511- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-47211 |
ZVW50..GCC REFER TO PNC 68142C |
1 | ||
| 67003-47210 |
ZVW50 REFER TO PNC 68142C |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09124 |
ZVW50..GCC |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-47211 |
ZVW50..GCC REFER TO PNC 68152C |
1 | ||
| 67004-47210 |
ZVW50 REFER TO PNC 68152C |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-47050 |
ZVW50 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-47050 |
ZVW50 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-47050 |
ZVW50..GCC |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-47050 |
ZVW50..GCC |
1 | ||
| 67811A - PAD, REAR DOOR SILENCER | ||||
| 67811-33040 |
ZVW50 |
2 | ||
| 67811-12180 |
ZVW50..GCC |
2 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-47060 |
ZVW50..GCC |
6 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-47100 |
ZVW50..GCC |
1 | ||
| 67841-47130 |
ZVW50..GCC |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-47120 |
ZVW50..GCC |
1 | ||
| 67842-47110 |
ZVW50..GCC |
1 | ||
| 67843B - COVER, REAR DOOR SERVICE HOLE, NO.2 RH | ||||
| 67843-47010 |
ZVW50..GCC |
1 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67844-47010 |
ZVW50..GCC |
1 | ||
| 67847H - SEAL, REAR DOOR VENT, RH NO.2 | ||||
| 67847-47030 |
ZVW50..GCC |
1 | ||
| 67848B - SEAL, REAR DOOR VENT, LH NO.2 | ||||
| 67848-47020 |
ZVW50..GCC |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-47040 |
ZVW50..GCC |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-47030 |
ZVW50..GCC |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30030 |
ZVW50..GCC |
6 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30030 |
ZVW50..GCC |
6 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30030 |
ZVW50..GCC |
6 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZVW50..GCC |
21 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZVW50..GCC |
21 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-47051 |
ZVW50..GCC |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-47051 |
ZVW50..GCC |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-47100 |
ZVW50..GCC |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-47100 |
ZVW50..GCC |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-47030 |
ZVW50..GCC |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-47030 |
ZVW50..GCC |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-47052 |
ZVW50 REFER TO ILLUST. |
1 | ||
| 68142-47051 |
ZVW50 REFER TO ILLUST. |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-47051 |
ZVW50 REFER TO ILLUST. |
1 | ||
| 68152-47052 |
ZVW50 REFER TO ILLUST. |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-47030 |
ZVW50..GCC |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-47030 |
ZVW50..GCC |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-47050 |
ZVW50..GCC |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-47050 |
ZVW50..GCC |
1 | ||
| 75921B - TAPE, BLACK OUT, NO.1 RH | ||||
| 75977-47080 |
ZVW50 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75922L - TAPE, BLACK OUT, NO.1 LH | ||||
| 75978-47080 |
ZVW50 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75923C - TAPE, BLACK OUT, NO.2 RH | ||||
| 75987-47060 |
ZVW50 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75924C - TAPE, BLACK OUT, NO.2 LH | ||||
| 75988-47060 |
ZVW50 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75925C - TAPE, BLACK OUT, NO.3 RH | ||||
| 75979-47070 |
ZVW50 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75926C - TAPE, BLACK OUT, NO.3 LH | ||||
| 75989-47070 |
ZVW50 0 OR 1PIECE,REF.ILL. |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90950-01841 | ||||
| 90950-01919 | ||||
| 90950-01956 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6707 | ||||
| 7503 | ||||
