ZVW50L-AHXEBV (2018)
Toyota Prius
ILLUST NO. 1 OF 2(1511- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-47153 |
ZVW50..GCC REFER TO PNC 68141C |
1 | ||
| 67001-47152 |
ZVW50 REFER TO PNC 68141C |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
ZVW50..GCC |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-47163 |
ZVW50..GCC REFER TO PNC 68151D |
1 | ||
| 67002-47162 |
ZVW50 REFER TO PNC 68151D |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-47050 |
ZVW50 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-47050 |
ZVW50 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-47010 |
ZVW50..GCC |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-47010 |
ZVW50..GCC |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-47050 |
ZVW50..GCC |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-47050 |
ZVW50..GCC |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-33040 |
ZVW50 |
2 | ||
| 67811-12180 |
ZVW50..GCC |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-47120 |
ZVW50..GCC |
1 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 90467-09206 |
ZVW50..GCC |
8 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-47100 |
ZVW50..GCC |
1 | ||
| 67835C - COVER, FRONT DOOR SERVICE HOLE, NO.3 RH | ||||
| 67835-47010 |
ZVW50..GCC |
1 | ||
| 67836C - COVER, FRONT DOOR SERVICE HOLE, NO.3 LH | ||||
| 67836-47010 |
ZVW50..GCC |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-47060 |
ZVW50..GCC |
6 | ||
| 67837D - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-47020 |
ZVW50..GCC |
1 | ||
| 67838D - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-47010 |
ZVW50..GCC |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-47010 |
ZVW50..GCC |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-47010 |
ZVW50..GCC |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-47060 |
ZVW50 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-47060 |
ZVW50 |
1 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 67867-52010 |
ZVW50 |
2 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-12150 |
ZVW50 |
36 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
ZVW50 |
4 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
ZVW50 |
4 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-47010 |
ZVW50..GCC |
6 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-47230 |
ZVW50..GCC |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-47230 |
ZVW50..GCC |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-47030 |
ZVW50..GCC |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-47030 |
ZVW50..GCC |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-47061 |
ZVW50..GCC REFER TO ILLUST. |
1 | ||
| 68141-47062 |
ZVW50..GCC REFER TO ILLUST. |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-47061 |
ZVW50..GCC REFER TO ILLUST. |
1 | ||
| 68151-47062 |
ZVW50..GCC REFER TO ILLUST. |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-47010 |
ZVW50..GCC |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-47010 |
ZVW50..GCC |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-47040 |
ZVW50..GCC |
2 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75975-47060 |
ZVW50 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75976-47060 |
ZVW50 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75923B - TAPE, BLACK OUT, NO.2 RH | ||||
| 75985-47050 |
ZVW50 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75924B - TAPE, BLACK OUT, NO.2 LH | ||||
| 75986-47050 |
ZVW50 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75925 - TAPE, BLACK OUT, NO.3 RH | ||||
| 75965-47030 |
ZVW50 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75926 - TAPE, BLACK OUT, NO.3 LH | ||||
| 75966-47030 |
ZVW50 0 OR 1PIECE,REF.ILL. |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 90950-01919 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6704 | ||||
| 7503 | ||||

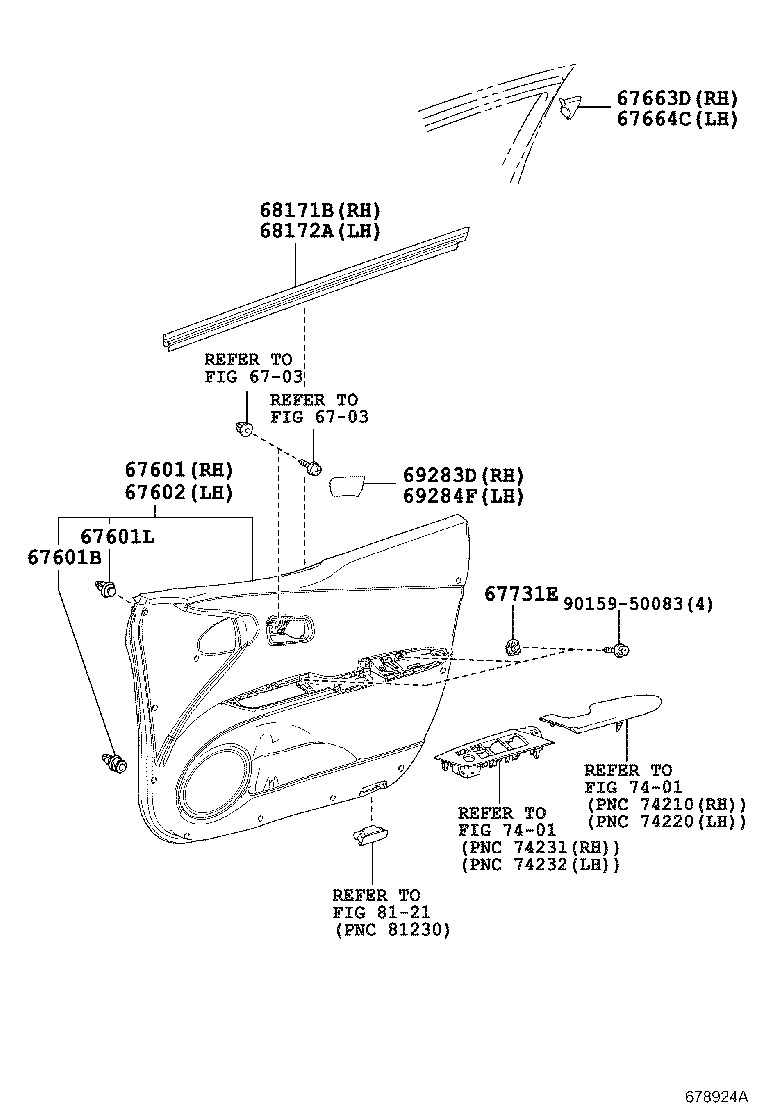

ILLUST NO. 2 OF 2(1511- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-47092C2 |
ZVW50..GCC BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67610-47092C3 |
ZVW50..GCC BLACK,TRIM2# |
1 | ||
| 67610-47242C2 |
ZVW50..GCC FRONT DOOR TRIM-HIGH(TRIM UPPER:SOFT TYPE),BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67610-47242C3 |
ZVW50..GCC FRONT DOOR TRIM-HIGH(TRIM UPPER:SOFT TYPE),BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZVW50 |
18 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09233 |
ZVW50 |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-47092C2 |
ZVW50..GCC BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67620-47562C2 |
ZVW50..GCC FRONT DOOR TRIM-HIGH(TRIM UPPER:SOFT TYPE),BLACK/COOL GRAY,TRIM1# |
1 | ||
| 67620-47092C3 |
ZVW50..GCC BLACK,TRIM2# |
1 | ||
| 67620-47562C3 |
ZVW50..GCC FRONT DOOR TRIM-HIGH(TRIM UPPER:SOFT TYPE),BLACK,TRIM2# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-47010 |
ZVW50..GCC |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-47010 |
ZVW50..GCC |
1 | ||
| 67731E - SPACER, SIDE TRIM, NO.1 | ||||
| 67731-53010 |
ZVW50..GCC |
4 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-47071 |
ZVW50..GCC |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-47071 |
ZVW50..GCC |
1 | ||
| 69283D - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-47020C0 |
ZVW50 BLACK,TRIM2# |
1 | ||
| 69283-47020B0 |
ZVW50 COOL GRAY,TRIM1# |
1 | ||
| 69284F - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-47020C0 |
ZVW50 BLACK,TRIM2# |
1 | ||
| 69284-47020B0 |
ZVW50 COOL GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-50083 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
| 8121 | ||||
