ZVW50L-AHXEBV (2018)

Toyota Prius

Production Dec 2018 - Jun 2020
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )GCC

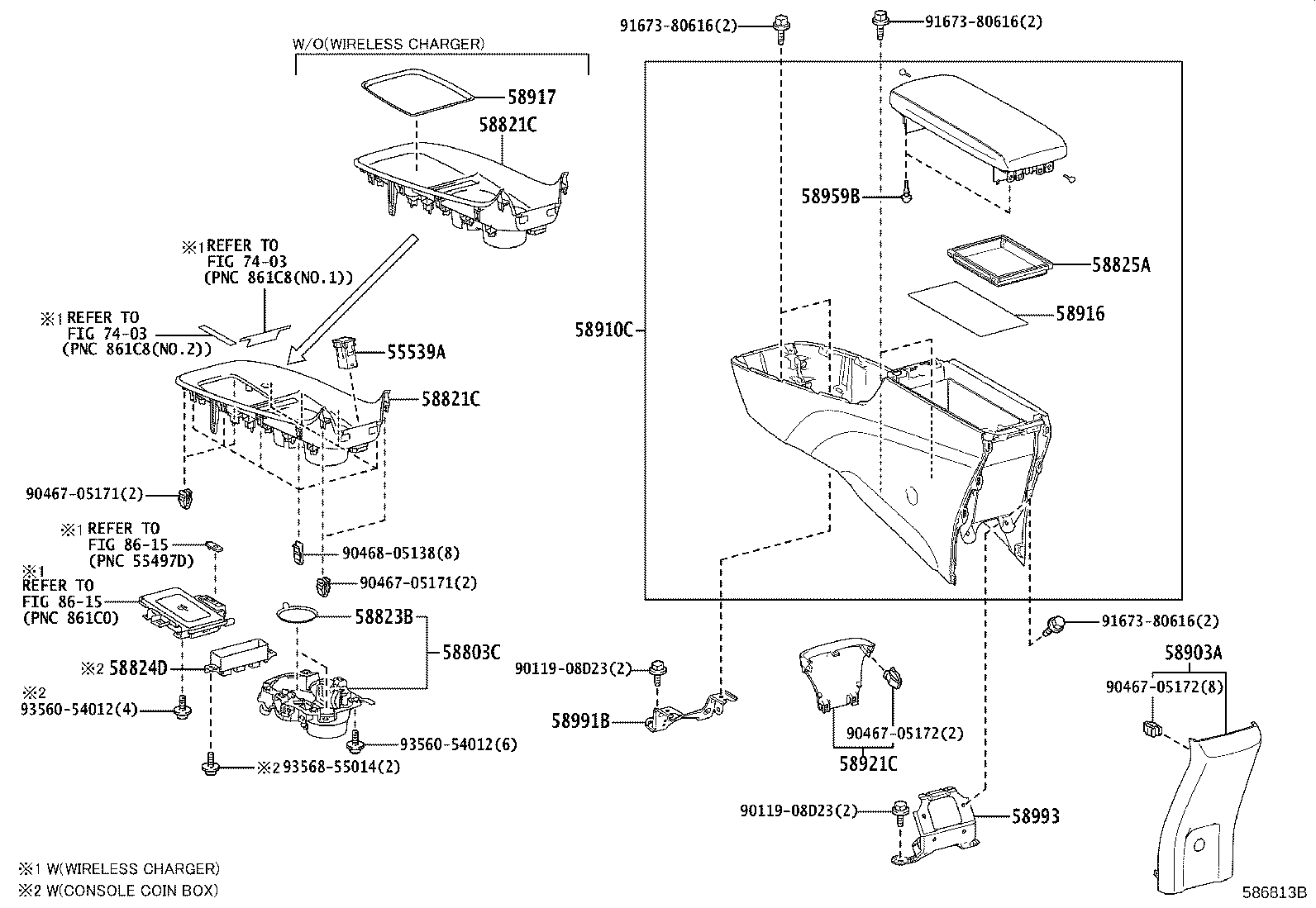

Click highlighted areas on diagram

diagram 55539A 58803C 58821C 58821C 58823B 58824D 58825A 58903A 58910C 58916 58917 58921C 58959B 58991B 58993 7403 7403 8615 8615 9011908D23 9011908D23 9046705171 9046705171 9046705172 9046705172 9046805138 9167380616 9167380616 9167380616 9356054012 9356054012 9356855014
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55524-12010C0

ZVW50..GCC

DECONTENT PACKAGE,BLACK

 1
58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER
58803-47050

ZVW50

 1
58821C - PANEL, CONSOLE, UPPER
58821-47130C0

ZVW50..GCC

WIRELESS CHARGER-WITH,BLACK METALLC

 1
58821-47130C0

ZVW50..GCC

WIRELESS CHARGER-WITH,BLACK METALLC,TRIM1#,2#

 1
58821-47140C0

ZVW50

BLACK METALLC,TRIM1#,2#

 1
58821C - PANEL, CONSOLE, UPPER
58821-47130C0

ZVW50..GCC

WIRELESS CHARGER-WITH,BLACK METALLC

 1
58821-47130C0

ZVW50..GCC

WIRELESS CHARGER-WITH,BLACK METALLC,TRIM1#,2#

 1
58821-47140C0

ZVW50

BLACK METALLC,TRIM1#,2#

 1
58823B - BOX, CONSOLE COMPARTMENT
58823-78010

ZVW50

 2
58824D - BOX, CONSOLE COIN
58824-47010

ZVW50

 1
58825A - POCKET, CONSOLE BOX
58825-47060

ZVW50

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-47050C0

ZVW50

BLACK,TRIM1#,2#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-47010C2

ZVW50..GCC

SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2#

 1
58910-47020C3

ZVW50..GCC

BLACK,TRIM1#,2#

 1
58916 - MAT, BOX BOTTOM
58916-47020

ZVW50

 1
58917 - MAT, BOX BOTTOM, NO.2
58917-47030

ZVW50

 1
58921C - PLATE, BOX, UPPER NO.1
58921-47030

ZVW50..GCC

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-03078

ZVW50

 2
58991B - BRACKET, CONSOLE BOX MOUNTING, FRONT
58991-47020

ZVW50..GCC

 1
58993 - BRACKET, CONSOLE BOX MOUNTING, REAR
58996-47030

ZVW50..GCC

 1
Common parts
90119-08D23
90467-05171
90467-05172
90468-05138
91673-80616
93560-54012
93568-55014
Linked diagrams
7403
8615
