ZVW50L-AHXEBV (2018)
Toyota Prius

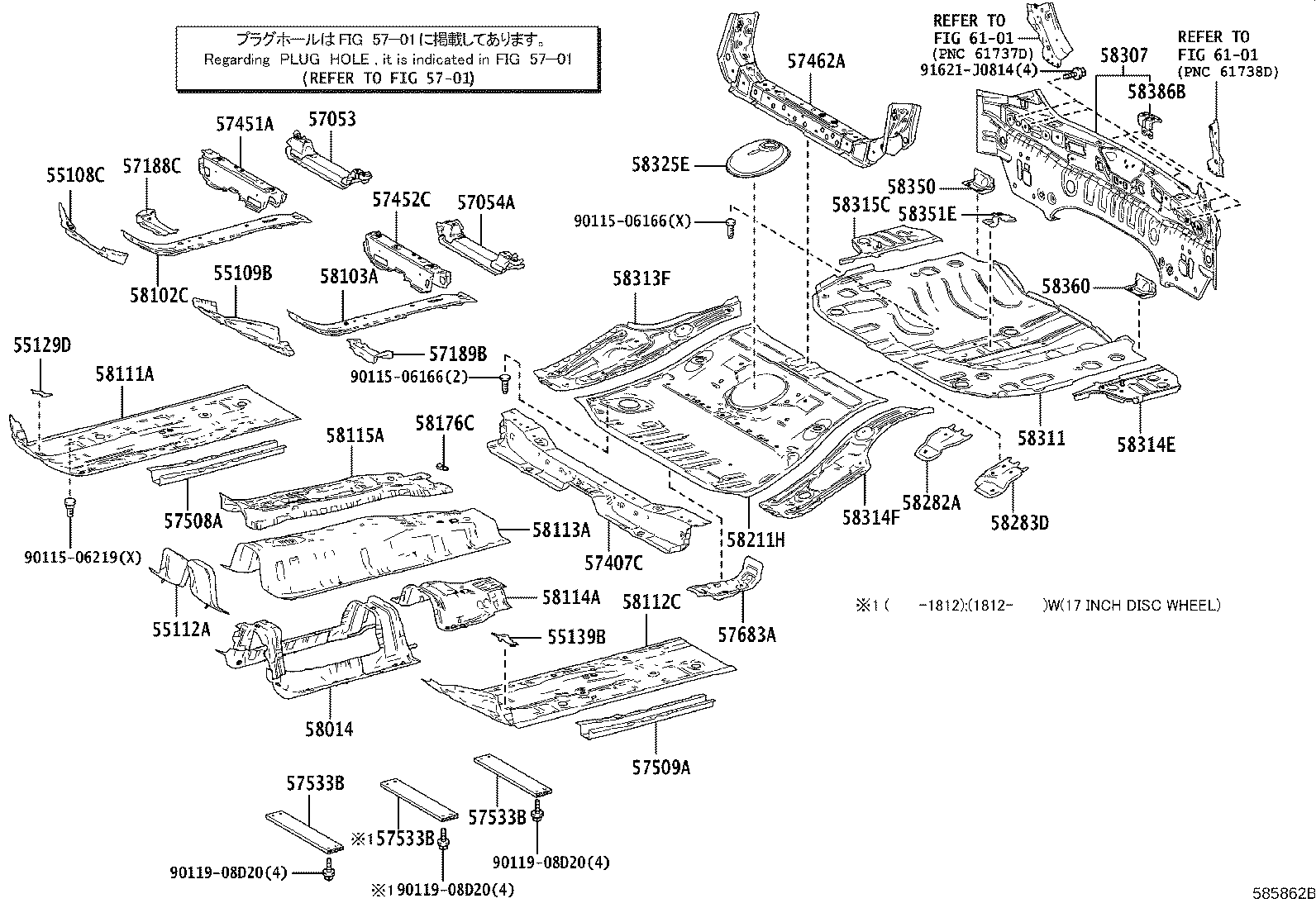

ILLUST NO. 1 OF 2(1511- )
FLOOR PANEL & LOWER BACK PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55109B - BRACE SUB-ASSY, DASH TO FRAME, LH | ||||
| 55114-47050 |
ZVW50..GCC |
1 | ||
| 55112A - PANEL, DASH, NO.2 | ||||
| 55112-47040 |
ZVW50..GCC |
1 | ||
| 55129D - COVER, DASH PANEL HOLE, RH | ||||
| 55129-47021 |
ZVW50..GCC |
1 | ||
| 55139B - COVER, DASH PANEL HOLE, LH | ||||
| 55139-47021 |
ZVW50..GCC |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-12041 |
ZVW50..GCC |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-12061 |
ZVW50..GCC |
1 | ||
| 57188C - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH | ||||
| 57188-47030 |
ZVW50..GCC |
1 | ||
| 57189B - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH | ||||
| 57189-47020 |
ZVW50..GCC |
1 | ||
| 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-47020 |
ZVW50 |
1 | ||
| 57407-47021 |
ZVW50..GCC |
1 | ||
| 57451A - MEMBER, FRONT FLOOR CROSS, RH | ||||
| 57451-47040 |
ZVW50..GCC |
1 | ||
| 57452C - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-47010 |
ZVW50..GCC |
1 | ||
| 57462A - MEMBER, CENTER FLOOR CROSS, NO.2 | ||||
| 57405-47010 |
ZVW50 |
1 | ||
| 57405-47011 |
ZVW50..GCC |
1 | ||
| 57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH | ||||
| 57508-47010 |
ZVW50..GCC |
1 | ||
| 57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH | ||||
| 57508-47010 |
ZVW50..GCC |
1 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-47030 |
ZVW50..GCC |
2 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-47030 |
ZVW50..GCC |
2 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-47030 |
ZVW50..GCC |
2 | ||
| 57683A - BRACKET, FUEL TANK MOUNTING, NO.1 | ||||
| 57683-47042 |
ZVW50..GCC |
1 | ||
| 57683-47041 |
ZVW50 |
1 | ||
| 58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER | ||||
| 58014-47010 |
ZVW50..GCC |
1 | ||
| 58102C - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH | ||||
| 58102-47020 |
ZVW50..GCC |
1 | ||
| 58103A - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH | ||||
| 58102-47020 |
ZVW50..GCC |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-47100 |
ZVW50 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-47050 |
ZVW50 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-47040 |
ZVW50..GCC |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58105-12020 |
ZVW50..GCC |
1 | ||
| 58115A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58015-47050 |
ZVW50..GCC |
1 | ||
| 58176C - REINFORCEMENT, PARKING BRAKE BASE, NO.2 | ||||
| 58176-12020 |
ZVW50..GCC |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-47100 |
ZVW50..GCC |
1 | ||
| 58282A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH | ||||
| 58282-47050 |
ZVW50..GCC |
1 | ||
| 58283D - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH | ||||
| 58283-47040 |
ZVW50..GCC |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-47100 |
ZVW50..GCC |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-47130 |
ZVW50 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58305-47051 |
ZVW50..GCC |
1 | ||
| 58314E - EXTENSION, REAR FLOOR SIDE PANEL, LH | ||||
| 58316-47010 |
ZVW50 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58306-47051 |
ZVW50..GCC |
1 | ||
| 58315C - EXTENSION, REAR FLOOR SIDE PANEL, RH | ||||
| 58315-47020 |
ZVW50 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-47051 |
ZVW50..GCC |
1 | ||
| 58350 - REINFORCEMENT ASSY, REAR FLOOR PANEL, RH | ||||
| 58350-47010 |
ZVW50 |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-12070 |
ZVW50 |
1 | ||
| 58360 - REINFORCEMENT ASSY, REAR FLOOR PANEL, LH | ||||
| 58350-47010 |
ZVW50 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
ZVW50..GCC |
2 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90119-08D20 | ||||
| 91621-J0814 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6101 | ||||
ILLUST NO. 2 OF 2(1511- )
FLOOR UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW50..GCC |
8 | ||
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW50..GCC |
8 | ||
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZVW50..GCC |
8 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-47030 |
ZVW50..GCC |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-47020 |
ZVW50..GCC |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-12210 |
ZVW50..GCC |
1 | ||
| 58165H - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
ZVW50..GCC SUPER WHITE 2 |
6 | ||
| 58165H - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
ZVW50..GCC SUPER WHITE 2 |
6 | ||
| 58165J - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-17027C0 |
ZVW50..GCC BLACK |
6 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-12040 |
ZVW50..GCC |
1 | ||
| 58166E - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
ZVW50..GCC SUPER WHITE 2 |
6 | ||
| 58166E - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
ZVW50..GCC SUPER WHITE 2 |
6 | ||
| 58166F - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-17027C0 |
ZVW50..GCC BLACK |
6 | ||
| 58167E - COVER, REAR FLOOR | ||||
| 66259-47010 |
ZVW50..GCC |
1 | ||
| 58167F - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17026A0 |
ZVW50..GCC SUPER WHITE 2 |
1 | ||
| 58167G - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZVW50..GCC BLACK |
1 | ||
| 58311W - CLIP(FOR REAR FLOOR) | ||||
| 90467-17026A0 |
ZVW50..GCC SUPER WHITE 2,NO.1:REFER ILLUST. |
1 | ||
| 90467-17027C0 |
ZVW50..GCC BLACK,NO.2:REFER ILLUST. |
1 | ||
| 58311W - CLIP(FOR REAR FLOOR) | ||||
| 90467-17026A0 |
ZVW50..GCC SUPER WHITE 2,NO.1:REFER ILLUST. |
1 | ||
| 90467-17027C0 |
ZVW50..GCC BLACK,NO.2:REFER ILLUST. |
1 | ||
| 58398A - CLIP, NO.3(FOR FLOOR UNDER COVER) | ||||
| 90467-17026A0 |
ZVW50..GCC SUPER WHITE 2 |
1 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-47050 |
ZVW50..GCC |
1 | ||
| 58398L - CLIP, NO.4(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZVW50..GCC BLACK |
1 | ||
| 58399B - COVER, FLOOR UNDER, NO.2 | ||||
| 58399-47030 |
ZVW50..GCC |
1 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17026A0 |
ZVW50..GCC SUPER WHITE 2 |
1 | ||
| 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17026A0 |
ZVW50..GCC SUPER WHITE 2 |
1 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZVW50..GCC BLACK |
1 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZVW50..GCC BLACK |
1 | ||
| 58399K - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17026A0 |
ZVW50..GCC SUPER WHITE 2 |
2 | ||
| 58399L - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZVW50..GCC BLACK |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90467-07220 | ||||
