ZVW50L-AHXEBV (2018)
Toyota Prius

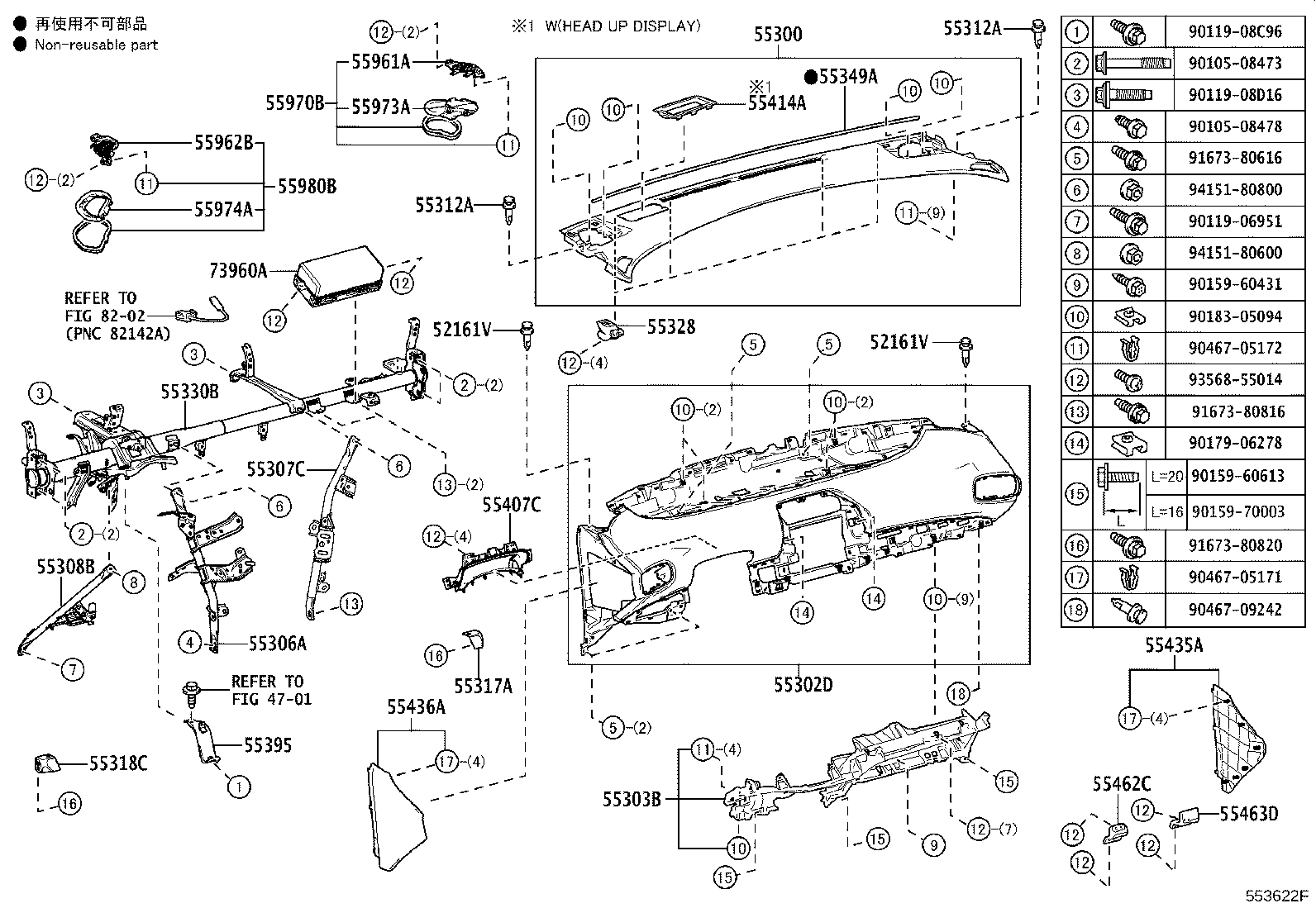

ILLUST NO. 1 OF 2(1511- )GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
ZVW50 |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
ZVW50 |
2 | ||
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55300-47131C0 |
ZVW50..GCC HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2# |
1 | ||
| 55300-47141C0 |
ZVW50..GCC BLACK,TRIM1#,2# |
1 | ||
| 55302D - PANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1 | ||||
| 55302-47131B1 |
ZVW50..GCC COOL GRAY/BLACK,TRIM1# |
1 | ||
| 55302-47131C1 |
ZVW50..GCC BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-47081C0 |
ZVW50..GCC BLACK,TRIM1#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-47100 |
ZVW50..GCC |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-47050 |
ZVW50..GCC |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-47040 |
ZVW50..GCC |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
ZVW50 |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
ZVW50 |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-47060 |
ZVW50..GCC |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-47070 |
ZVW50..GCC |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-47170 |
ZVW50 |
4 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-47161 |
ZVW50..GCC |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-47030 |
ZVW50 |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-47010 |
ZVW50..GCC |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-47010 |
ZVW50..GCC |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-47110C0 |
ZVW50..GCC HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-47050C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-47050C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 55462C - BRACKET, KNEE PROTECTOR, NO.2 | ||||
| 55462-47050 |
ZVW50..GCC |
1 | ||
| 55463D - BRACKET, KNEE PROTECTOR, NO.3 | ||||
| 55463-47070 |
ZVW50..GCC |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55961-47040C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 55962B - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55962-47020C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 55970B - NOZZLE ASSY, SIDE DEFROSTER, RH | ||||
| 55970-47010C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 55973A - DUCT, SIDE DEFROSTER NOZZLE, NO.3 | ||||
| 55973-47060 |
ZVW50 |
1 | ||
| 55974A - DUCT, SIDE DEFROSTER NOZZLE, NO.4 | ||||
| 55974-47020 |
ZVW50 |
1 | ||
| 55980B - NOZZLE ASSY, SIDE DEFROSTER, LH | ||||
| 55980-47010C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-47110 |
ZVW50..GCC |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90119-06951 | ||||
| 90119-08C96 | ||||
| 90119-08D16 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-09242 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 91673-80820 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4701 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(1511- )GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-75020 |
ZVW50 |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-47130C0 |
ZVW50..GCC BLACK,TRIM2# |
1 | ||
| 55405-47130B0 |
ZVW50..GCC COOL GRAY,TRIM1# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-47070C0 |
ZVW50..GCC BLACK,TRIM1#,2# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-47070C0 |
ZVW50..GCC DECONTENT PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 55408-47020C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-47070C0 |
ZVW50..GCC DECONTENT PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 55408-47020C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-47070C0 |
ZVW50..GCC DECONTENT PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 55409-47010C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-47070C0 |
ZVW50..GCC DECONTENT PACKAGE,BLACK,TRIM1#,2# |
1 | ||
| 55409-47010C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-47100 |
ZVW50..GCC |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-47030C0 |
ZVW50 BLACK,TRIM2# |
1 | ||
| 55422-47030B0 |
ZVW50 COOL GRAY,TRIM1# |
1 | ||
| 55424C - PANEL, RADIO TUNER FINISH | ||||
| 55424-47030 |
ZVW50..GCC AUDIO LESS COVER-WITH(STEREO OPENING COVER:DOP) |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-47030C0 |
ZVW50..GCC BLACK,TRIM1#,2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-47160 |
ZVW50..GCC |
1 | ||
| 55446-47150 |
ZVW50..GCC HEAD UP DISPLAY-WITH |
1 | ||
| 55461A - ORNAMENT, INSTRUMENT PANEL | ||||
| 55461-47130 |
ZVW50..GCC |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-47010 |
ZVW50..GCC HEAD UP DISPLAY-WITH |
1 | ||
| 55470-47020 |
ZVW50..GCC |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-47040 |
ZVW50..GCC |
1 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-47080C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-47020C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-47090C0 |
ZVW50..GCC BLACK,TRIM1#,2# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-47041 |
ZVW50..GCC DECONTENT PACKAGE&AUDIO-AUDIO LESS & 6SPEAKER |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-47130C0 |
ZVW50..GCC BLACK,TRIM1#,2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-47060 |
ZVW50..GCC |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-47070 |
ZVW50..GCC |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-47190C6 |
ZVW50 PRECIOUS BLACK,TRIM2# |
1 | ||
| 55650-47190H0 |
ZVW50 TURQUOIISE,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-47150H0 |
ZVW50 TURQUOIISE,TRIM1# |
1 | ||
| 55660-47150C6 |
ZVW50 PRECIOUS BLACK,TRIM2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-47190 |
ZVW50 |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-47050C0 |
ZVW50..GCC BLACK,TRIM1#,2# |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-47050C0 |
ZVW50..GCC BLACK,TRIM1#,2# |
1 | ||
| 58848B - COVER, SHIFT LEVER HOLE | ||||
| 58841-47040C0 |
ZVW50..GCC BLACK METALLC,TRIM1#,2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-47050C0 |
ZVW50..GCC BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90159-60613 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-09240 | ||||
| 90467-10203 | ||||
| 90468-05138 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
