ZVW50L-AHXEBV (2018)

Toyota Prius

Production Dec 2018 - Jun 2020
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )

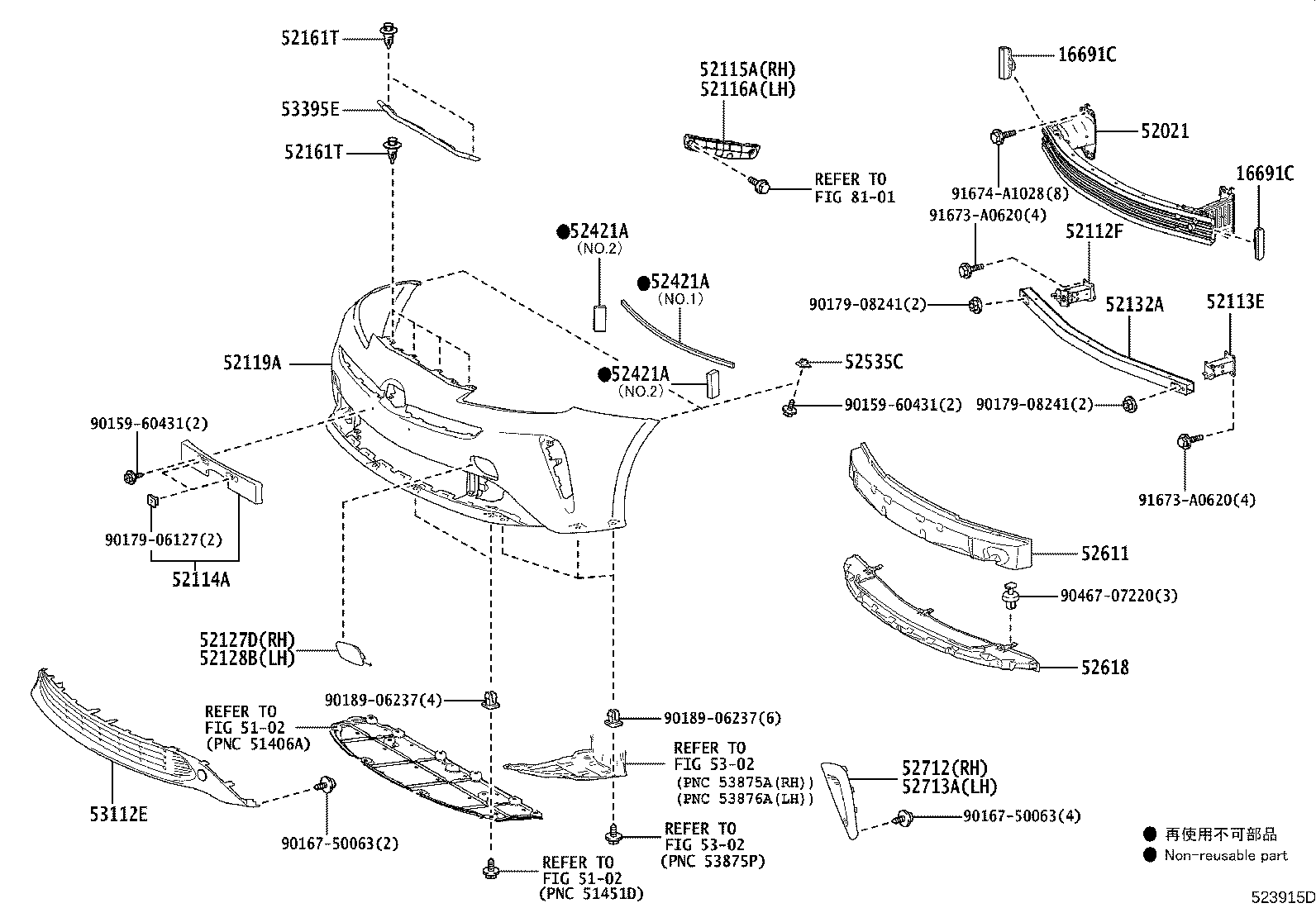

Click highlighted areas on diagram

diagram 16691C 16691C 5102 5102 52021 52112F 52113E 52114A 52115A 52116A 52119A 52127D 52128B 52132A 52161T 52161T 52421A 52421A 52421A 52535C 52611 52618 52712 52713A 5302 5302 53112E 53395E 8101 9015960431 9015960431 9016750063 9016750063 9017906127 9017908241 9017908241 9018906237 9018906237 9046707220 91673A0620 91673A0620 91674A1028
Part # Description Qty Price
16691C - PLATE, RADIATOR SIDE AIR GUIDE, FRONT
16691-37020

2ZRFXE..ZVW50

 2
16691C - PLATE, RADIATOR SIDE AIR GUIDE, FRONT
16691-37020

2ZRFXE..ZVW50

 2
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-47120

ZVW50..GCC

 1
52112F - EXTENSION, FRONT BUMPER, RH
52102-47030

ZVW50..GCC

 1
52113E - EXTENSION, FRONT BUMPER, LH
52103-47020

ZVW50..GCC

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-47270

ZVW50

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-47050

ZVW50

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-47050

ZVW50

 1
52119A - COVER, FRONT BUMPER
52119-47980

ZVW50

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-47911

ZVW50

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-47910

ZVW50

 1
52132A - REINFORCEMENT, FRONT BUMPER, NO.2
52132-47010

ZVW50..GCC

 1
52161T - PIECE, FRONT BUMPER
52161-16010

ZVW50

 6
52161T - PIECE, FRONT BUMPER
52161-16010

ZVW50

 6
52421A - PAD, FRONT BUMPER
52421-47030

ZVW50

NO.1:REFER ILLUST.

 1
52421-47040

ZVW50

NO.2:REFER ILLUST.

 2
52421A - PAD, FRONT BUMPER
52421-47030

ZVW50

NO.1:REFER ILLUST.

 1
52421-47040

ZVW50

NO.2:REFER ILLUST.

 2
52421A - PAD, FRONT BUMPER
52421-47030

ZVW50

NO.1:REFER ILLUST.

 1
52421-47040

ZVW50

NO.2:REFER ILLUST.

 2
52535C - RETAINER, FRONT BUMPER SIDE
52535-50060

ZVW50

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-47200

ZVW50..GCC

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-47120

ZVW50..GCC

 1
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-47040

ZVW50

 1
52713A - MOULDING, FRONT BUMPER SIDE, LH
52713-47040

ZVW50

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-47310

ZVW50

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-47060

ZVW50

 1
Common parts
90159-60431
90167-50063
90179-06127
90179-08241
90189-06237
90467-07220
91673-A0620
91674-A1028
Linked diagrams
5102
5302
8101
