ZVW50L-AHXEBV (2018)

Toyota Prius

Production Dec 2018 - Jun 2020
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

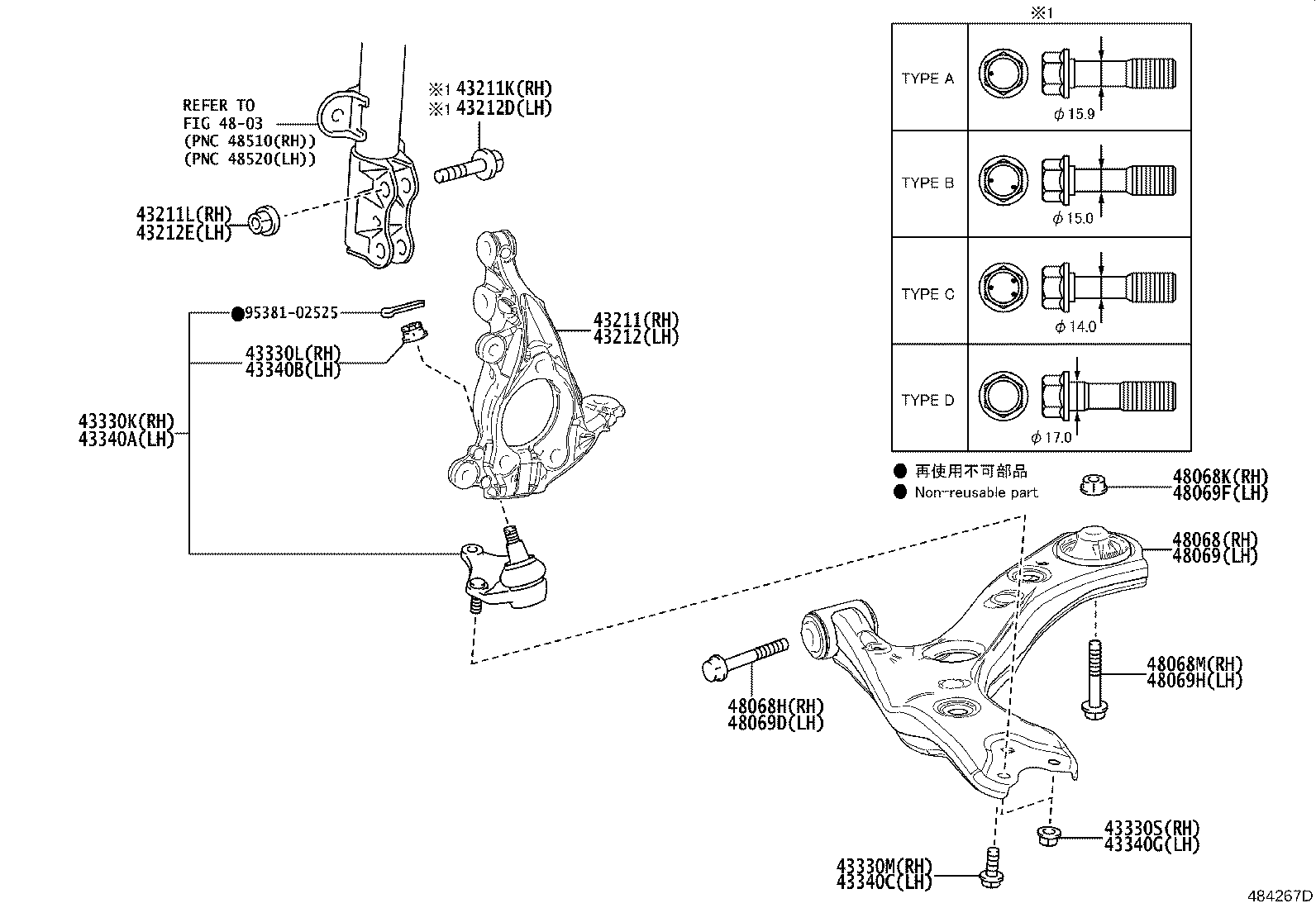

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 4803 48068 48068H 48068K 48068M 48069 48069D 48069F 48069H 9538102525
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-47040

ZVW50

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17009

ZVW50

OD=15.9,TYPE A:REFER ILLUST.

 1
90105-17011

ZVW50

OD=14,TYPE C:REFER ILLUST.

 1
90105-17010

ZVW50

OD=15,TYPE B:REFER ILLUST.

 1
90105-17021

ZVW50

OD=17,TYPE D:REFER ILLUST.

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17002

ZVW50

 2
43212 - KNUCKLE, STEERING, LH
43212-47040

ZVW50

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17009

ZVW50

OD=15.9,TYPE A:REFER ILLUST.

 1
90105-17010

ZVW50

OD=15,TYPE B:REFER ILLUST.

 1
90105-17011

ZVW50

OD=14,TYPE C:REFER ILLUST.

 1
90105-17021

ZVW50

OD=17,TYPE D:REFER ILLUST.

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17002

ZVW50

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-19115

ZVW50

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

ZVW50

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12407

ZVW50..GCC

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-12019

ZVW50..GCC

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-19115

ZVW50

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

ZVW50

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12407

ZVW50..GCC

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-12019

ZVW50..GCC

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-47060

ZVW50..GCC

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-16091

ZVW50..GCC

 1
48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90179-14068

ZVW50..GCC

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-14180

ZVW50..GCC

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-47060

ZVW50..GCC

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-16091

ZVW50..GCC

 1
48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90179-14068

ZVW50..GCC

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-14180

ZVW50..GCC

 1
Common parts
95381-02525
Linked diagrams
4803
