ZVW50L-AHXEBV (2018)
Toyota Prius
Production
Dec 2018
-
Jun 2020
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

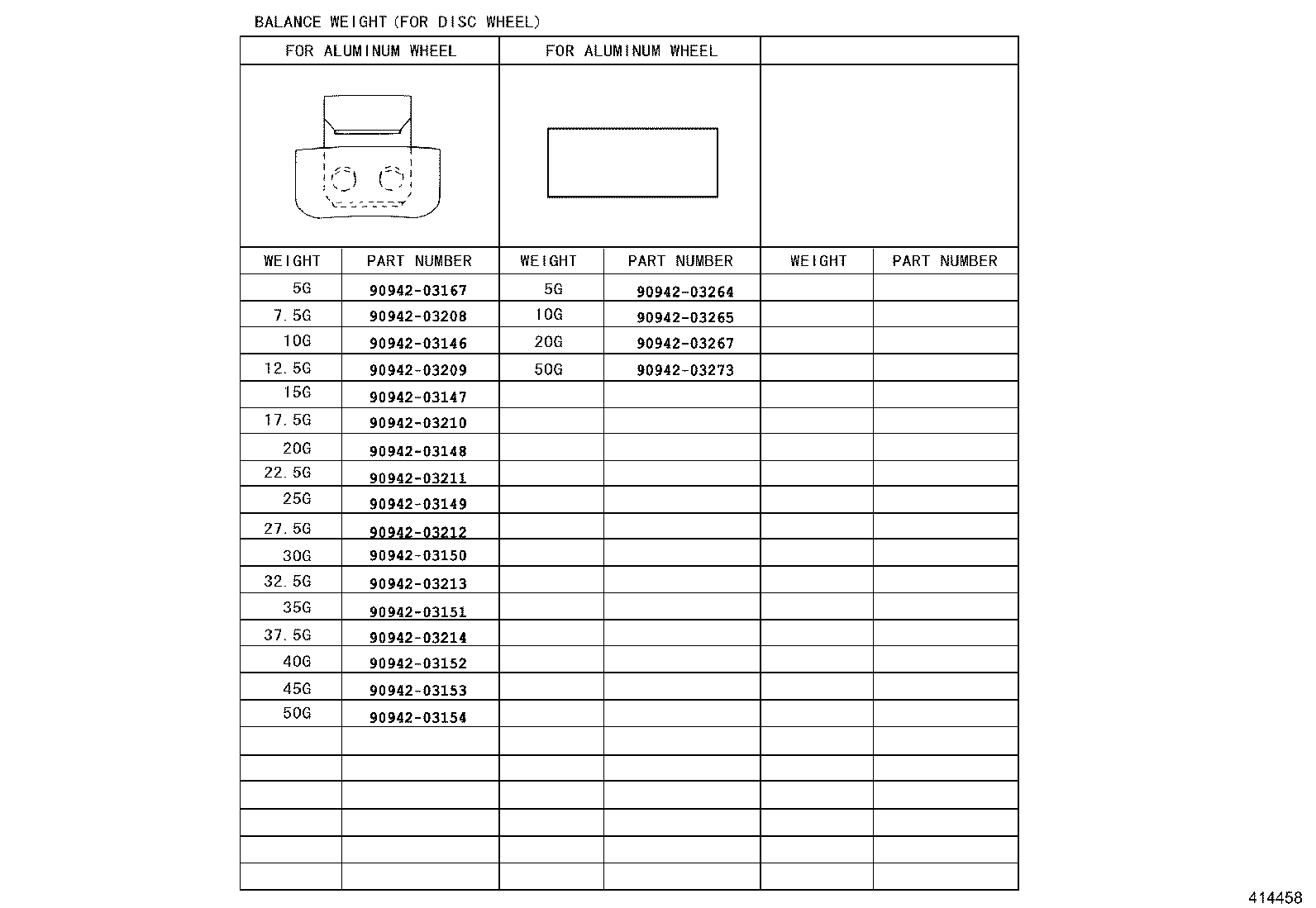

ILLUST NO. 3 OF 3(1511- )
Click highlighted areas on diagram
BALANCE WEIGHT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03167 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
| 90942-03264 | ||||
| 90942-03265 | ||||
| 90942-03267 | ||||
| 90942-03273 | ||||
ILLUST NO. 1 OF 3(1511- )
Click highlighted areas on diagram
DISC WHEEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-33060 |
ZVW50..GCC |
4 | ||
| 04423B - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SP | ||||
| 04423-33060 |
ZVW50..GCC |
1 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-47450 |
ZVW50 15X6.5J, #,TYPE B:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-47450 |
ZVW50..GCC 15X6.5J, #,TYPE B:REFER ILLUST. |
1 | ||
| 42611-47440 |
ZVW50..GCC 15X6.5J, #,TYPE A:REFER ILLUST. |
1 | ||
| 42611-47631 |
ZVW50..GCC 17X4T,FRONT SEAT-DRIVER(8-WAY),TYPE F:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01033 |
ZVW50 |
20 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-60010 |
ZVW50..GCC |
4 | ||
| 42607A - VALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE) | ||||
| 42607-60010 |
ZVW50..GCC |
1 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
ZVW50..GCC FRONT SEAT-DRIVER(8-WAY) |
1 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-05039 |
ZVW50..GCC |
4 | ||
| 42611W - CAP, TIRE VALVE (FOR SPARE) | ||||
| 90942-05039 |
ZVW50..GCC |
1 | ||
ILLUST NO. 2 OF 3(1511- )
Click highlighted areas on diagram
WHEEL HUB ORNAMENT & WHEEL CAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42621 - CAP, WHEEL | ||||
| 42602-47251 |
ZVW50 TYPE B:REFER ILLUST. |
4 | ||
| 42602-47250 |
ZVW50 TYPE B:REFER ILLUST. |
4 | ||
