ZVW50L-AHXEBV (2018)

Toyota Prius

Production Dec 2018 - Jun 2020
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

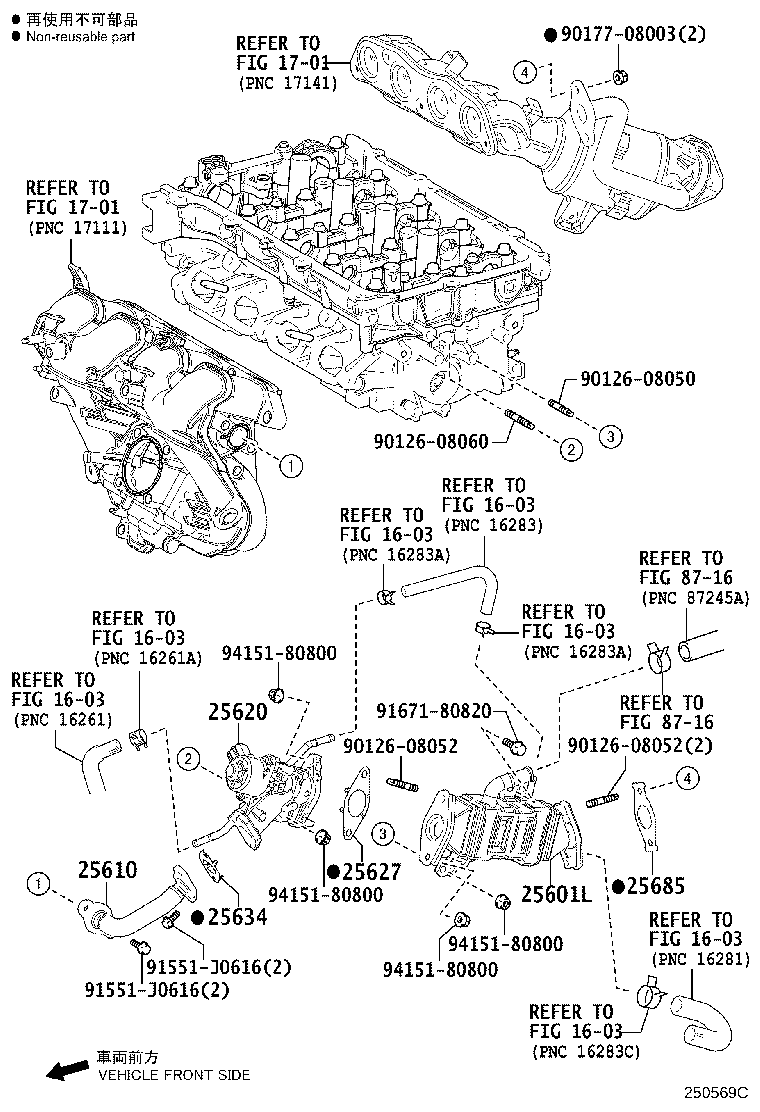

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1701 1701 25601L 25610 25620 25627 25634 25685 8716 8716 9012608050 9012608052 9012608052 9012608060 9017708003 91551J0616 91551J0616 9167180820 9415180800 9415180800 9415180800 9415180800
Part # Description Qty Price
25610 - PIPE ASSY, EGR
25610-37030

2ZRFXE..ZVW50..GCC

 1
25620 - VALVE ASSY, EGR
25620-37150

2ZRFXE..ZVW50..GCC

 1
25627 - GASKET, EGR VALVE
25627-37020

2ZRFXE..ZVW50..GCC

 1
25634 - GASKET, EGR PIPE
25634-37020

2ZRFXE..ZVW50..GCC

 1
25685 - GASKET, EGR COOLER, NO.1
25685-37020

2ZRFXE..ZVW50..GCC

 1
Common parts
90126-08050
90126-08052
90126-08060
90177-08003
91551-J0616
91671-80820
94151-80800
Linked diagrams
1603
1701
8716
