ZVW50L-AHXEBV (2018)

Toyota Prius

Production Dec 2018 - Jun 2020
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

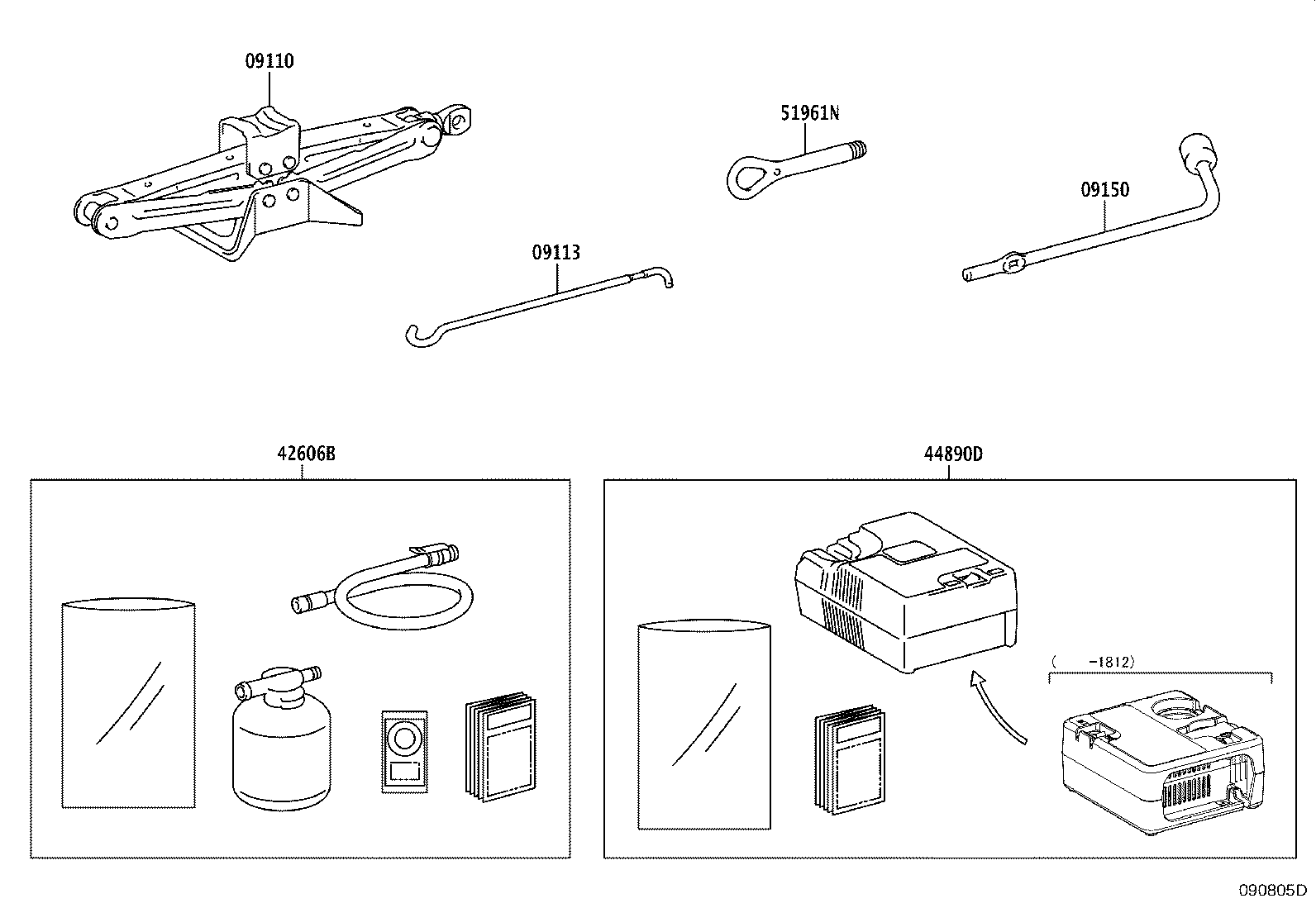

Click highlighted areas on diagram

diagram 09110 09113 09150 42606B 44890D 51961N
Part # Description Qty Price
09110 - JACK ASSY
09111-47050

ZVW50..GCC

 1
09113 - HANDLE, JACK
09113-42030

ZVW50..GCC

 1
09150 - WRENCH, HUB NUT BOX
09150-42010

ZVW50..GCC

 1
51961N - HOOK, TRANSPORT
51960-47030

ZVW50..GCC

 1
51961-47010

ZVW50

 1
