ZVW30R-AHXEBT (2010)

Toyota Prius

Production Dec 2010 - Apr 2012
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904-1112)RHD..ARL,EUR ; (1012-1204)TH

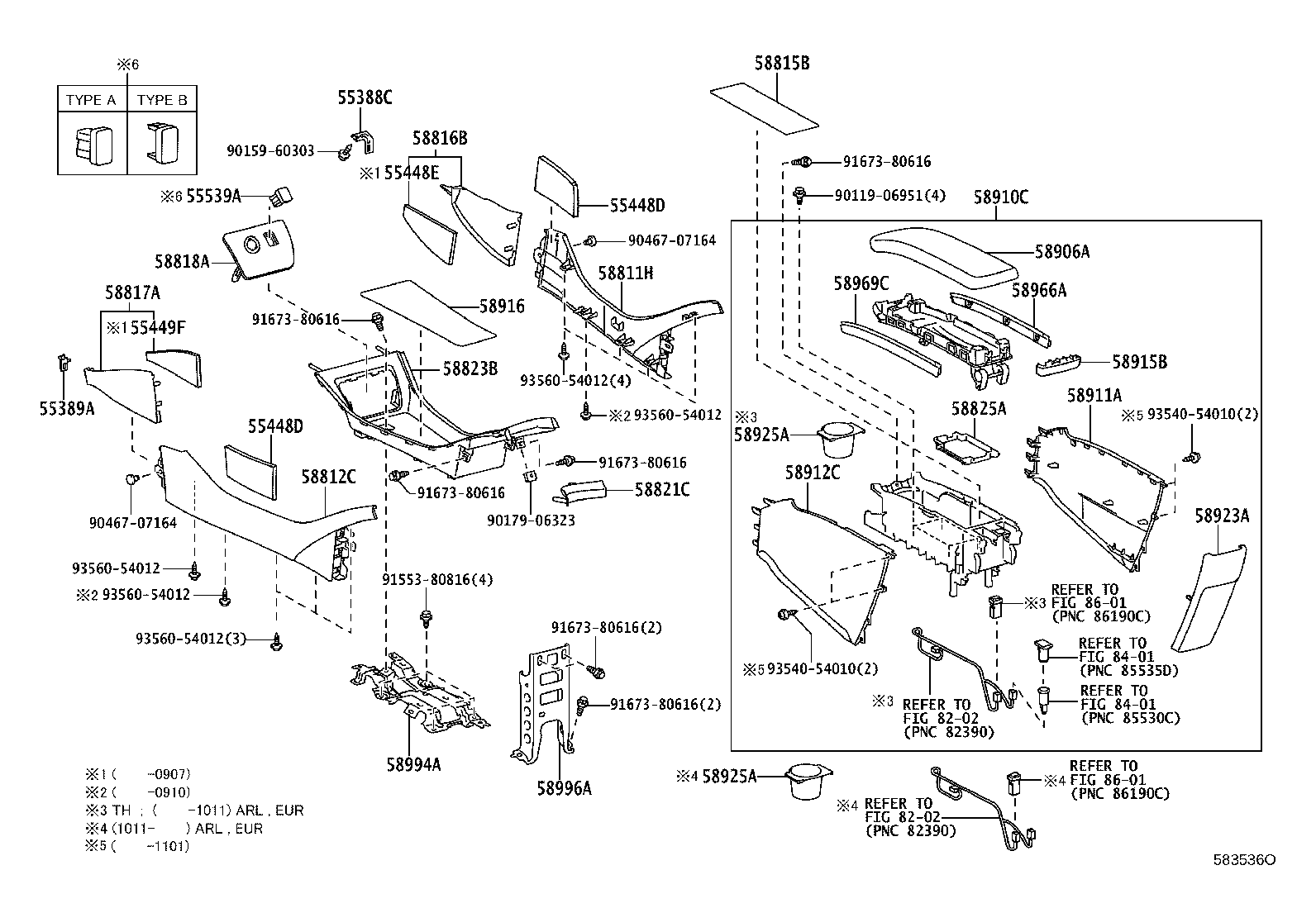

Click highlighted areas on diagram

diagram 55388C 55389A 55448D 55448D 55448E 55449F 55539A 58811H 58812C 58815B 58816B 58817A 58818A 58821C 58823B 58825A 58906A 58910C 58911A 58912C 58915B 58916 58923A 58925A 58925A 58966A 58969C 58994A 58996A 8202 8202 8401 8401 8601 8601 9011906951 9015960303 9017906323 9046707164 9046707164 9155380816 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616 9354054010 9354054010 9356054012 9356054012 9356054012 9356054012 9356054012
Part # Description Qty Price
55388C - BRACKET, CONSOLE MOUNTING, RH
55389-42020

ZVW30..TH

 1
55389A - BRACKET, CONSOLE MOUNTING, LH
55388-42020

ZVW30..TH

 1
55448D - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1
55448-47070

ZVW30..TH

 2
55448D - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1
55448-47070

ZVW30..TH

 2
55448E - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1
55448-47010

ZVW30..RHD

 1
55449F - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2
55449-47020

ZVW30..RHD

 1
55539A - COVER, SPARE SWITCH HOLE
55539-47060

ZVW30..TH

TYPE B:REFER ILLUST.

 1
55539-28160C0

ZVW30..TH

BLACK,TYPE A:REFER ILLUST.

 1
58811H - BOX, CONSOLE, RH
58811-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58812C - BOX, CONSOLE, LH
58812-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58815B - CARPET, CONSOLE BOX
58815-47030

ZVW30..TH

 1
58816B - INSERT, CONSOLE BOX
58816-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58818A - COVER, CONSOLE BOX, FR
58818-47030B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58821C - PANEL, CONSOLE, UPPER
58821-47020

ZVW30..TH

 1
58823B - BOX, CONSOLE COMPARTMENT
58823-47020B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58825A - POCKET, CONSOLE BOX
58825-47020

ZVW30..TH

 1
58906A - PAD SUB-ASSY, CONSOLE COMPARTMENT DOOR
58906-47020B1

ZVW30..TH

SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1#

 1
58906-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58901-47110B2

ZVW30

SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1#

 1
58901-47090B2

ZVW30

MD.GRAY,TRIM1#

 1
58901-47090B3

ZVW30

MIST GRAY,TRIM6#

 1
58901-47110B3

ZVW30

SEAT COVER MATERIAL-NATURAL LEATHER,MIST GRAY,TRIM6#

 1
58901-47090B2

ZVW30..TH

MD.GRAY,TRIM1#

 1
58901-47110B2

ZVW30..TH

SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1#

 1
58911A - PANEL, BOX SIDE, NO.1
58911-47030B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58912C - PANEL, BOX SIDE, NO.2
58912-47040B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58915B - COVER, CONSOLE COMPARTMENT DOOR BOX, REAR
58915-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58916 - MAT, BOX BOTTOM
58916-47010B1

ZVW30..TH

MD.GRAY,TRIM1#

 1
58923A - PANEL, CONSOLE REAR END
58923-47020B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58925A - POCKET, CONSOLE BOX, REAR
58925-47010

ZVW30..TH

 1
58925A - POCKET, CONSOLE BOX, REAR
58925-47010

ZVW30..TH

 1
58966A - INSERT, CONSOLE COMPARTMENT DOOR, NO.1
58966-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58969C - INSERT, CONSOLE COMPARTMENT DOOR, NO.2
58969-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4
58994-47010

ZVW30..TH

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-47020

ZVW30..TH

 1
Common parts
90119-06951
90159-60303
90179-06323
90467-07164
91553-80816
91673-80616
93540-54010
93560-54012
Linked diagrams
8202
8401
8601

(1112- )RHD..ARL,EUR ; (1204- )TH

Click highlighted areas on diagram

diagram 55388C 55389A 55448D 55448D 55539A 55539J 55630A 55633A 58811H 58812C 58815B 58816B 58817A 58818A 58819C 58823B 58825A 58906A 58910C 58911A 58912C 58915B 58916 58923A 58966A 58969C 58994A 58996A 8401 8401 9011906951 9011906951 9015960303 9017906323 9046707164 9046707164 9155380816 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616 9356054012 9356054012
Part # Description Qty Price
55388C - BRACKET, CONSOLE MOUNTING, RH
55389-42020

ZVW30..TH

 1
55389A - BRACKET, CONSOLE MOUNTING, LH
55388-42020

ZVW30..TH

 1
55448D - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1
55448-47070

ZVW30..TH

 2
55448D - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1
55448-47070

ZVW30..TH

 2
55539A - COVER, SPARE SWITCH HOLE
55539-47060

ZVW30..TH

TYPE B:REFER ILLUST.

 1
55539-28160C0

ZVW30..TH

BLACK,TYPE A:REFER ILLUST.

 1
58811H - BOX, CONSOLE, RH
58811-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58812C - BOX, CONSOLE, LH
58812-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58815B - CARPET, CONSOLE BOX
58815-47030

ZVW30..TH

 1
58816B - INSERT, CONSOLE BOX
58816-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58818A - COVER, CONSOLE BOX, FR
58818-47030B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58823B - BOX, CONSOLE COMPARTMENT
58823-47020B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58825A - POCKET, CONSOLE BOX
58825-47020

ZVW30..TH

 1
58906A - PAD SUB-ASSY, CONSOLE COMPARTMENT DOOR
58906-47020B1

ZVW30..TH

SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1#

 1
58906-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58901-47110B2

ZVW30

SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1#

 1
58901-47090B2

ZVW30

MD.GRAY,TRIM1#

 1
58901-47090B3

ZVW30

MIST GRAY,TRIM6#

 1
58901-47110B3

ZVW30

SEAT COVER MATERIAL-NATURAL LEATHER,MIST GRAY,TRIM6#

 1
58901-47090B2

ZVW30..TH

MD.GRAY,TRIM1#

 1
58901-47110B2

ZVW30..TH

SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1#

 1
58911A - PANEL, BOX SIDE, NO.1
58911-47030B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58912C - PANEL, BOX SIDE, NO.2
58912-47040B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58915B - COVER, CONSOLE COMPARTMENT DOOR BOX, REAR
58915-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58916 - MAT, BOX BOTTOM
58916-47010B1

ZVW30..TH

MD.GRAY,TRIM1#

 1
58923A - PANEL, CONSOLE REAR END
58923-47020B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58966A - INSERT, CONSOLE COMPARTMENT DOOR, NO.1
58966-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58969C - INSERT, CONSOLE COMPARTMENT DOOR, NO.2
58969-47010B0

ZVW30..TH

MD.GRAY,TRIM1#

 1
58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4
58994-47010

ZVW30..TH

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-47020

ZVW30..TH

 1
Common parts
90119-06951
90159-60303
90179-06323
90467-07164
91553-80816
91673-80616
93560-54012
Linked diagrams
8401
