ZVW30L-AHXEBW (2009)
Toyota Prius
Production
Apr 2009
-
Dec 2011
Engine
2ZRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0904-1112)ARL,EUR ; (1012-1204)TH

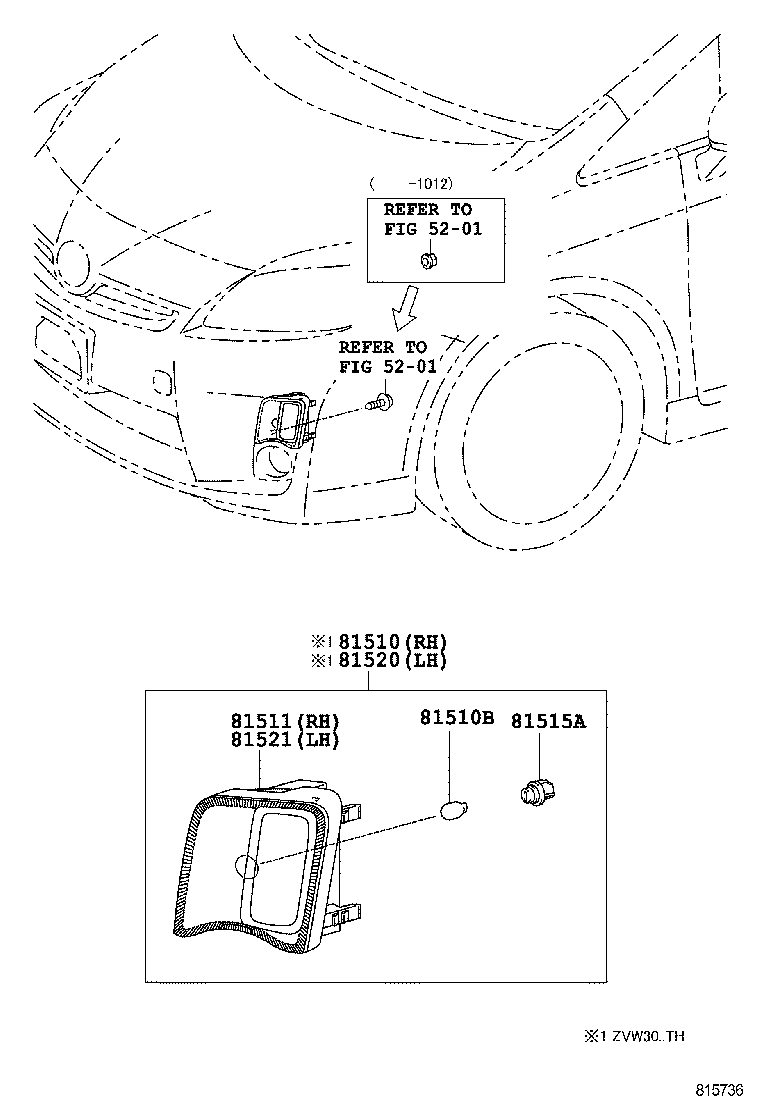

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ZVW30..ARL,EUR 12V 21W,AMBER |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-47010 |
ZVW30 |
1 | ||
| 81511-47012 |
ZVW30..ARL,EUR |
1 | ||
| 81511-47011 |
ZVW30 |
1 | ||
| 81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ZVW30..ARL,EUR |
2 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-47011 |
ZVW30 |
1 | ||
| 81521-47010 |
ZVW30 |
1 | ||
| 81521-47012 |
ZVW30..ARL,EUR |
1 | ||
| Linked diagrams | ||||
| 5201 | ||||
