ZVW30L-AHXEBW (2009)

Toyota Prius

Production Apr 2009 - Dec 2011
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904-1112)ARL,EUR ; (1012-1204)TH

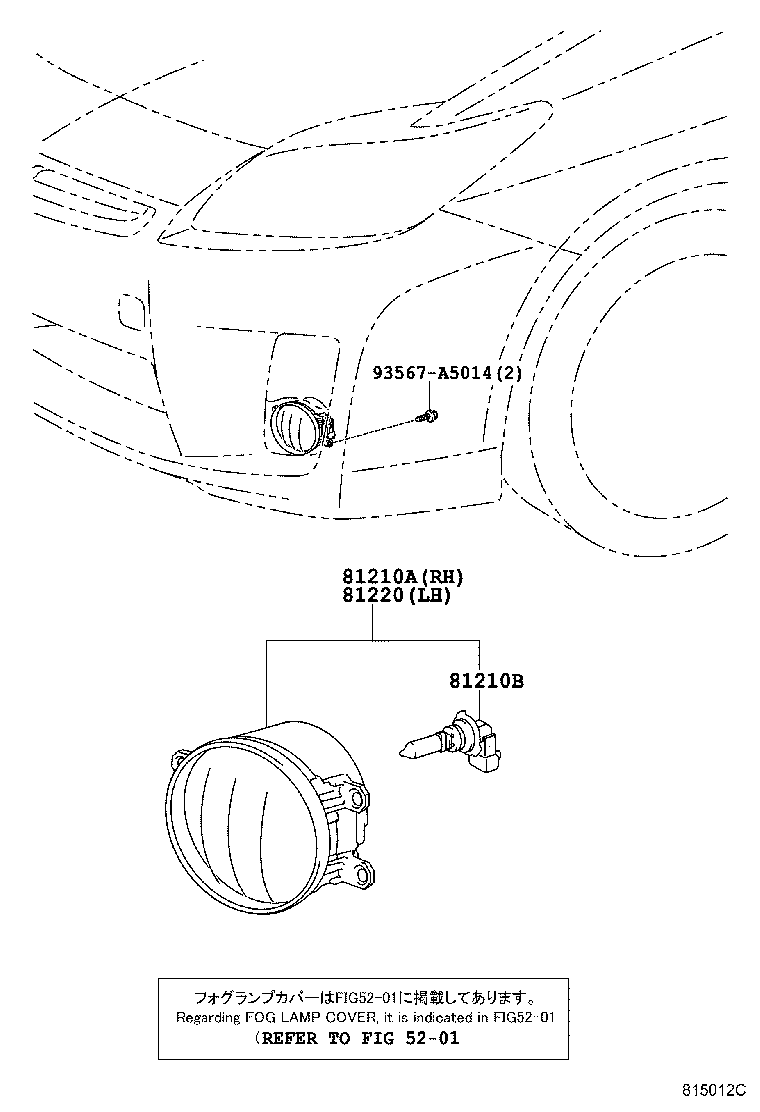

Click highlighted areas on diagram

diagram 5201 81210A 81210B 81220 93567A5014
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81025-0W020

ZVW30..ARL,EUR

 1
81210B - BULB, FOG LAMP
90981-13081

ZVW30..ARL,EUR

12V 55W,HALOGEN,OSRAM

 2
90981-13075

ZVW30..ARL,EUR

12V 55W,HALOGEN,PHILIPS

 2
81220 - LAMP ASSY, FOG, LH
81026-0W020

ZVW30..ARL,EUR

 1
Common parts
93567-A5014
Linked diagrams
5201
