ZVW30L-AHXEBW (2009)

Toyota Prius

Production Apr 2009 - Dec 2011
Engine 2ZRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904-1112)ARL,EUR ; (1012-1204)TH

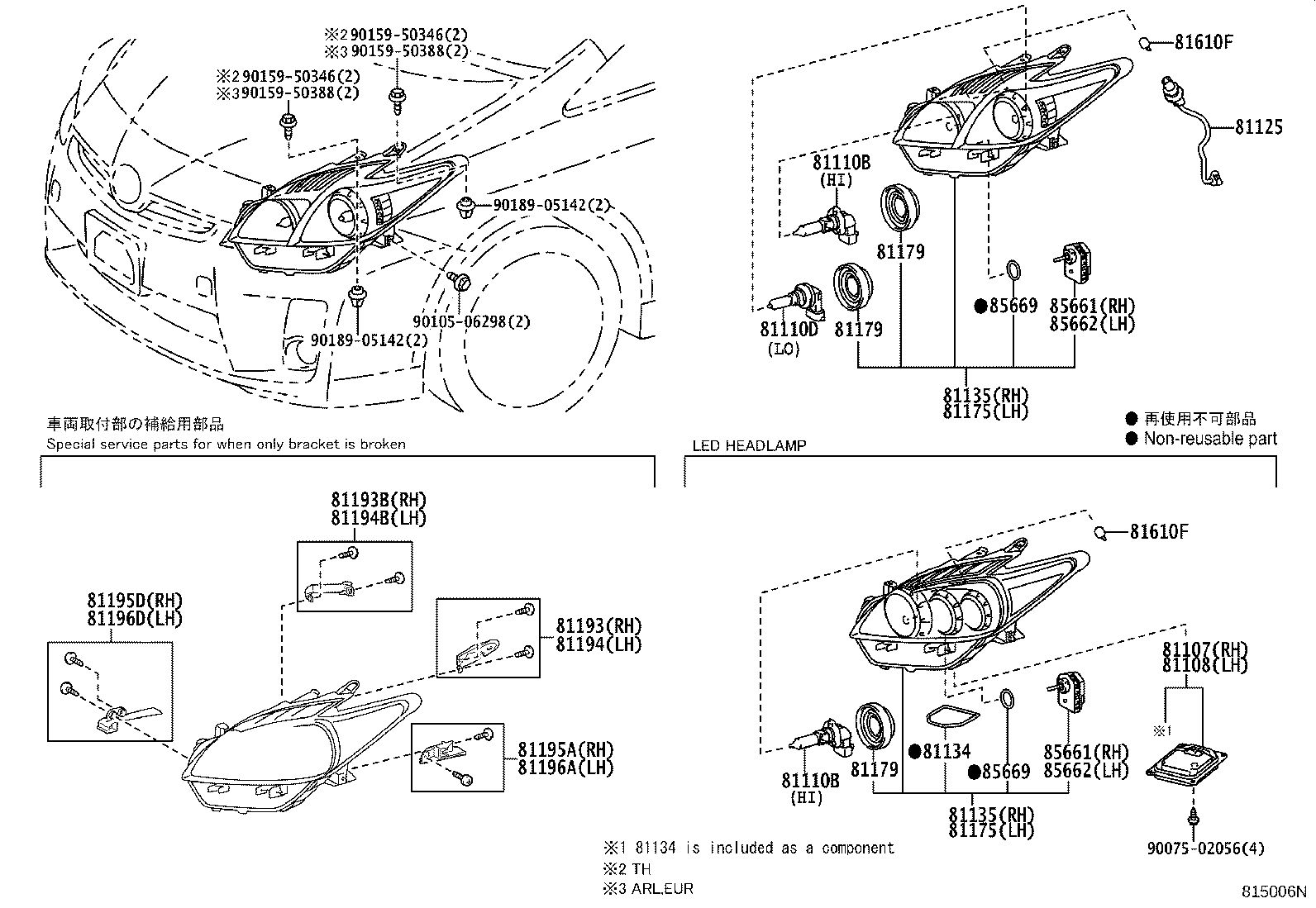

Click highlighted areas on diagram

diagram 81107 81108 81110B 81110B 81110D 81125 81134 81135 81135 81175 81175 81179 81179 81179 81193 81193B 81194 81194B 81195A 81195D 81196A 81196D 81610F 81610F 85661 85661 85662 85662 85669 85669 9007502056 9010506298 9015950346 9015950346 9015950388 9015950388 9018905142 9018905142
Part # Description Qty Price
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-47240

ZVW30..ARL,EUR

HEADLAMP-LED

 1
81107-47290

ZVW30..ARL,EUR

HEADLAMP-LED

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-47290

ZVW30..ARL,EUR

HEADLAMP-LED

 1
81107-47240

ZVW30..ARL,EUR

HEADLAMP-LED

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

ZVW30..ARL,EUR

12V65W(SAE),60W(ECE)

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

ZVW30..ARL,EUR

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075

ZVW30..ARL,EUR

12V 55W,HALOGEN

 2
81125 - CORD, HEADLAMP
81125-47230

ZVW30..ARL,EUR

 2
81134 - GASKET, HEADLAMP
90075-68007

ZVW30..ARL,EUR

HEADLAMP-LED

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-47250

ZVW30..LHD

 1
81145-47350

ZVW30..LHD

HEADLAMP-LED

 1
81130-47251

ZVW30..LHD

 1
81130-47252

ZVW30..LHD

 1
81145-47260

ZVW30..LHD

HEADLAMP-LED

 1
81145-47261

ZVW30..LHD

HEADLAMP-LED

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-47250

ZVW30..LHD

 1
81145-47350

ZVW30..LHD

HEADLAMP-LED

 1
81130-47251

ZVW30..LHD

 1
81130-47252

ZVW30..LHD

 1
81145-47260

ZVW30..LHD

HEADLAMP-LED

 1
81145-47261

ZVW30..LHD

HEADLAMP-LED

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-47250

ZVW30..LHD

 1
81185-47261

ZVW30..LHD

HEADLAMP-LED

 1
81170-47252

ZVW30..LHD

 1
81170-47251

ZVW30..LHD

 1
81185-47260

ZVW30..LHD

HEADLAMP-LED

 1
81185-47350

ZVW30..LHD

HEADLAMP-LED

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-47250

ZVW30..LHD

 1
81185-47261

ZVW30..LHD

HEADLAMP-LED

 1
81170-47252

ZVW30..LHD

 1
81170-47251

ZVW30..LHD

 1
81185-47260

ZVW30..LHD

HEADLAMP-LED

 1
81185-47350

ZVW30..LHD

HEADLAMP-LED

 1
81179 - COVER, HEADLAMP SOCKET
90075-65006

ZVW30..ARL,EUR

 4
90075-65006

ZVW30..ARL,EUR

HEADLAMP-LED

 2
81179 - COVER, HEADLAMP SOCKET
90075-65006

ZVW30..ARL,EUR

 4
90075-65006

ZVW30..ARL,EUR

HEADLAMP-LED

 2
81179 - COVER, HEADLAMP SOCKET
90075-65006

ZVW30..ARL,EUR

 4
90075-65006

ZVW30..ARL,EUR

HEADLAMP-LED

 2
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-47030

ZVW30..ARL,EUR

 1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-47040

ZVW30..ARL,EUR

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-47030

ZVW30..ARL,EUR

 1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-47040

ZVW30..ARL,EUR

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-47030

ZVW30..ARL,EUR

 1
81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
81195-47040

ZVW30..ARL,EUR

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-47030

ZVW30..ARL,EUR

 1
81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
81196-47040

ZVW30..ARL,EUR

 1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ZVW30..ARL,EUR

12V 5W

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ZVW30..ARL,EUR

12V 5W

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-12010

ZVW30..ARL,EUR

 1
85661-12020

ZVW30..ARL,EUR

HEADLAMP-LED

 1
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-12010

ZVW30..ARL,EUR

 1
85661-12020

ZVW30..ARL,EUR

HEADLAMP-LED

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-12010

ZVW30..ARL,EUR

 1
85661-12020

ZVW30..ARL,EUR

HEADLAMP-LED

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-12010

ZVW30..ARL,EUR

 1
85661-12020

ZVW30..ARL,EUR

HEADLAMP-LED

 1
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120

ZVW30..ARL,EUR

 2
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120

ZVW30..ARL,EUR

 2
Common parts
90075-02056
90105-06298
90159-50346
90159-50388
90189-05142
