ZVW30L-AHXEBW (2009)
Toyota Prius

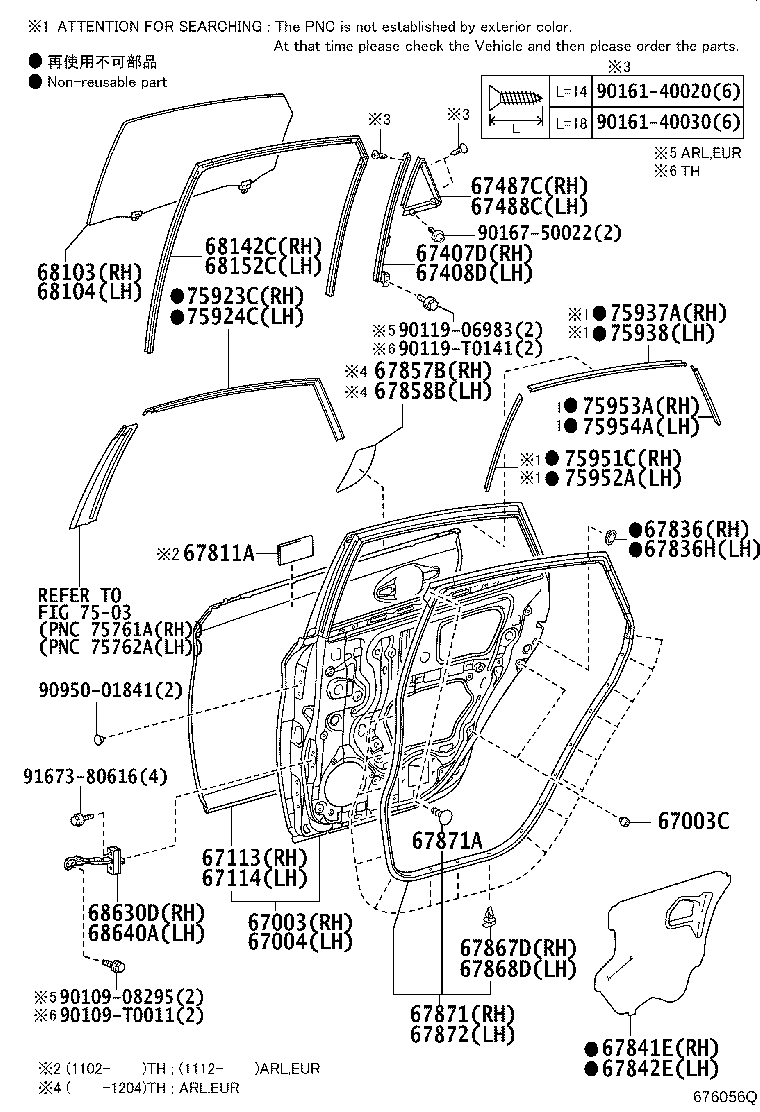

ILLUST NO. 1 OF 2(0904- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-47080 |
ZVW30..ARL,EUR |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09138 |
ZVW30..ARL,EUR |
4 | ||
| 90541-09124 |
ZVW30..ARL,EUR |
4 | ||
| 90541-09117 |
ZVW30 |
4 | ||
| 90541-09124 |
ZVW30 |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-47080 |
ZVW30..ARL,EUR |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-47030 |
ZVW30..ARL,EUR |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-47030 |
ZVW30..ARL,EUR |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-47030 |
ZVW30..ARL,EUR |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-47030 |
ZVW30..ARL,EUR |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-47040 |
ZVW30..ARL,EUR |
1 | ||
| 67487-47041 |
ZVW30..ARL,EUR |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-47040 |
ZVW30..ARL,EUR |
1 | ||
| 67488-47041 |
ZVW30..ARL,EUR |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
ZVW30..ARL,EUR |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
ZVW30..ARL,EUR |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-47050 |
ZVW30..ARL,EUR |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-47040 |
ZVW30..ARL,EUR |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-47020 |
ZVW30..ARL,EUR |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-47010 |
ZVW30..ARL,EUR |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZVW30..ARL,EUR |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZVW30..ARL,EUR |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-47030 |
ZVW30..ARL,EUR |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 90467-05017C0 |
ZVW30..ARL,EUR BLACK |
2 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-47030 |
ZVW30..ARL,EUR |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-47051 |
ZVW30..ARL,EUR *UVCT,T=3.1,GREEN |
1 | ||
| 68103-47050 |
ZVW30 *UVCT,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-47050 |
ZVW30 *UVCT,T=3.1,GREEN |
1 | ||
| 68104-47051 |
ZVW30..ARL,EUR *UVCT,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-47030 |
ZVW30..ARL,EUR |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-47030 |
ZVW30..ARL,EUR |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-47030 |
ZVW30..ARL,EUR |
1 | ||
| 68630-47031 |
ZVW30..ARL,EUR |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-47030 |
ZVW30..ARL,EUR |
1 | ||
| 68630-47031 |
ZVW30..ARL,EUR |
1 | ||
| 75923C - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-47020 |
ZVW30..ARL,EUR |
1 | ||
| 75924C - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-47020 |
ZVW30..ARL,EUR |
1 | ||
| 75937A - TAPE, BLACK OUT, INNER UPPER RH | ||||
| 75987-47020 |
ZVW30..ARL,EUR REFER TO ILLUST. |
1 | ||
| 75938 - TAPE, BLACK OUT, INNER UPPER LH | ||||
| 75988-47020 |
ZVW30..ARL,EUR REFER TO ILLUST. |
1 | ||
| 75951C - TAPE, BLACK OUT, INNER FRONT RH | ||||
| 75977-47020 |
ZVW30..ARL,EUR REFER TO ILLUST. |
1 | ||
| 75952A - TAPE, BLACK OUT, INNER FRONT LH | ||||
| 75978-47020 |
ZVW30..ARL,EUR REFER TO ILLUST. |
1 | ||
| 75953A - TAPE, BLACK OUT, INNER REAR RH | ||||
| 75979-47020 |
ZVW30..ARL,EUR REFER TO ILLUST. |
1 | ||
| 75954A - TAPE, BLACK OUT, INNER REAR LH | ||||
| 75989-47020 |
ZVW30..ARL,EUR REFER TO ILLUST. |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90109-T0011 | ||||
| 90119-06983 | ||||
| 90119-T0141 | ||||
| 90161-40020 | ||||
| 90161-40030 | ||||
| 90167-50022 | ||||
| 90950-01841 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7503 | ||||
ILLUST NO. 2 OF 2(0904- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-47220B0 |
ZVW30..EUR MD.GRAY,TRIM1# |
1 | ||
| 67630-47220G0 |
ZVW30..EUR AQUA,TRIM6# |
1 | ||
| 67630-47240B0 |
ZVW30..LHD AUDIO-AV,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67630-47240B0 |
ZVW30..EUR AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67630-47240B0 |
ZVW30..EUR AUDIO-CD,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67630-47240G0 |
ZVW30..EUR AUDIO-AVN,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67630-47230B0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 67630-47240B0 |
ZVW30..EUR AUDIO-AVN,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67630-47230G0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 67630-47240B0 |
ZVW30..EUR AUDIO-CD-CHANGER,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67630-47240G0 |
ZVW30..EUR AUDIO-CD-CHANGER,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67630-47250B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AV,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67630-47250B0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AVN,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67630-47250B0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67630-47240G0 |
ZVW30..LHD AUDIO-AV,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67630-47250G0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AVN,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67630-47250G0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67630-47250B0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67630-47240G0 |
ZVW30..EUR AUDIO-CD,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67630-47250G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AV,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67630-47250G0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67630-47240G0 |
ZVW30..EUR AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67630-47250B0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67630-47250G0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZVW30..ARL,EUR |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-47220B0 |
ZVW30..EUR MD.GRAY,TRIM1# |
1 | ||
| 67640-47220G0 |
ZVW30..EUR AQUA,TRIM6# |
1 | ||
| 67640-47230G0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 67640-47240B0 |
ZVW30..EUR AUDIO-CD,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67640-47240B0 |
ZVW30..EUR AUDIO-CD-CHANGER,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67640-47240B0 |
ZVW30..EUR AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67640-47240B0 |
ZVW30..LHD AUDIO-AV,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67640-47250B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AV,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67640-47240G0 |
ZVW30..EUR AUDIO-CD,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67640-47240G0 |
ZVW30..EUR AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67640-47240G0 |
ZVW30..LHD AUDIO-AV,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67640-47250B0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67640-47250G0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AVN,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67640-47240B0 |
ZVW30..EUR AUDIO-AVN,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67640-47250G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AV,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67640-47250B0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67640-47250B0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AVN,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67640-47250G0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67640-47240G0 |
ZVW30..EUR AUDIO-CD-CHANGER,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67640-47230B0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 67640-47240G0 |
ZVW30..EUR AUDIO-AVN,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67640-47250B0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67640-47250G0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67640-47250G0 |
ZVW30..EUR SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67627-47010 |
ZVW30..ARL,EUR |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67628-47010 |
ZVW30..ARL,EUR |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-48010 |
ZVW30..ARL,EUR |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-48010 |
ZVW30..ARL,EUR |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-47040 |
ZVW30..ARL,EUR |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-47040 |
ZVW30..ARL,EUR |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-50031 | ||||
| 90189-06018 | ||||
| 90189-T0011 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8602 | ||||
