ZVW30L-AHXEBW (2009)
Toyota Prius
ILLUST NO. 2 OF 2(0904- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-47190B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 67610-47200B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 67610-47200B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AVN,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67610-47200B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AV,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67610-47190G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 67610-47200G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AVN,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67610-47200G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AV,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67610-47200G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67610-47200B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67610-47200G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 67610-47200G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67610-47200B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67610-47200G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67610-47390G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 67610-47200B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67610-47400B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 67610-47400B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AVN,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67610-47400B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67610-47390B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 67610-47400B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AV,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67610-47400G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67610-47400G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AVN,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67610-47400G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67610-47400B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67610-47400G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 67610-47400B0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67610-47400G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67610-47400G0 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AV,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-47010 |
ZVW30..ARL,EUR |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZVW30..ARL,EUR |
16 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZVW30..ARL,EUR |
16 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZVW30..ARL,EUR |
16 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-47190G1 |
ZVW30 AQUA,TRIM6# |
1 | ||
| 67620-47190B1 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 67620-47200G1 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AVN,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67620-47200B1 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,MD.GRAY,TRIM1# |
1 | ||
| 67620-47200B1 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AV,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67620-47200B1 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67620-47200G1 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6# |
1 | ||
| 67620-47200G1 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67620-47200G1 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67620-47200B1 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67620-47190G1 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 67620-47200G1 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67620-47200B1 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67620-47200G1 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AV,BLUETOOTH,8SPEAKER,AQUA,TRIM6# |
1 | ||
| 67620-47190B1 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 67620-47200B1 |
ZVW30..LHD SEAT COVER MATERIAL-NATURAL LEATHER&AUDIO-AVN,BLUETOOTH,8SPEAKER,MD.GRAY,TRIM1# |
1 | ||
| 67625 - BRACKET, FRONT DOOR TRIM, RH | ||||
| 67625-47020 |
ZVW30..ARL,EUR |
1 | ||
| 67626 - BRACKET, FRONT DOOR TRIM, LH | ||||
| 67625-47020 |
ZVW30..ARL,EUR |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-48010 |
ZVW30..ARL,EUR |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-48010 |
ZVW30..ARL,EUR |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-47040 |
ZVW30..ARL,EUR |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-47040 |
ZVW30..ARL,EUR |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-50031 | ||||
| 90189-06018 | ||||
| 90189-T0011 | ||||
| Linked diagrams | ||||
| 7401 | ||||

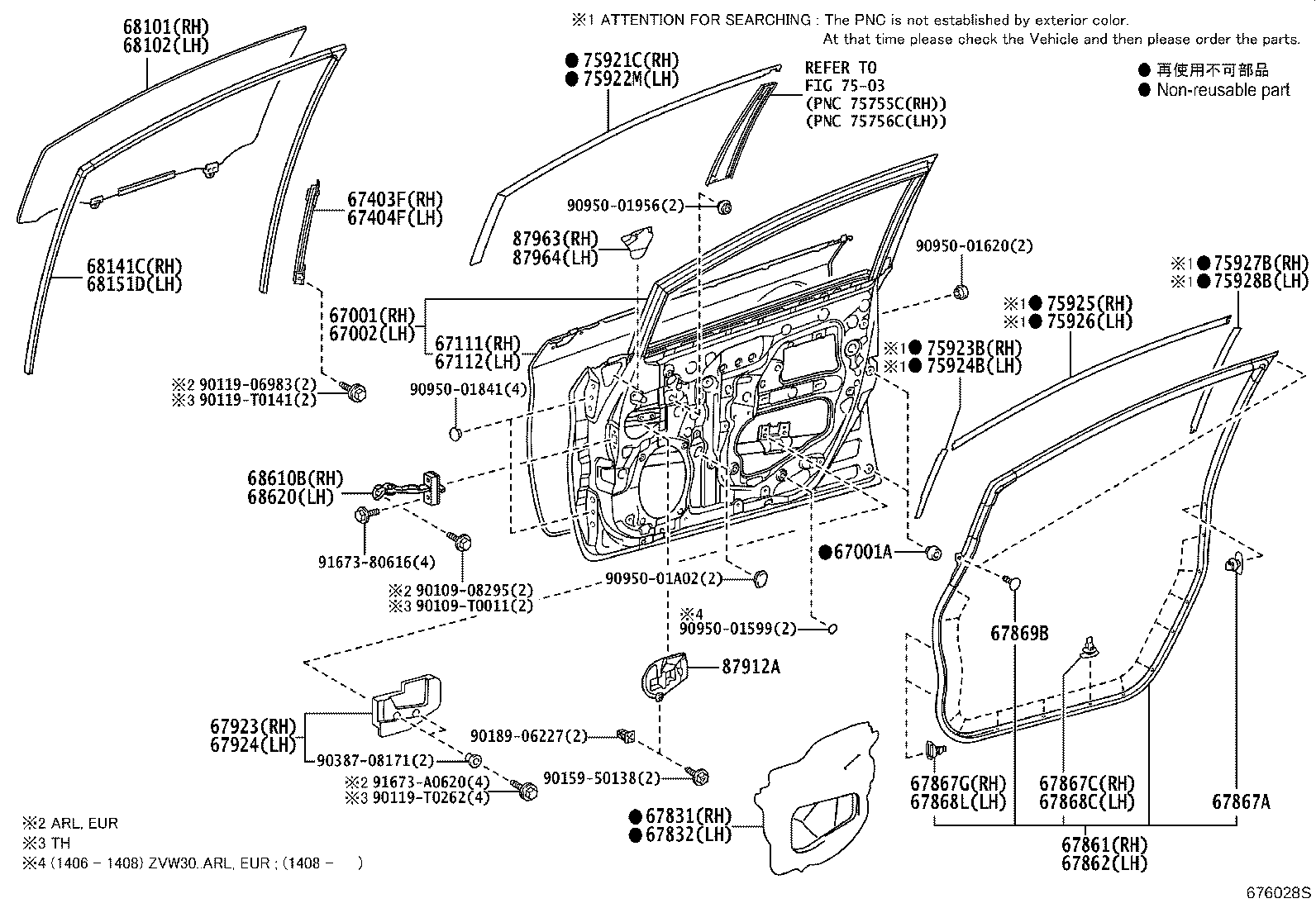

ILLUST NO. 1 OF 2(0904- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-47070 |
ZVW30..ARL,EUR |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
ZVW30 |
4 | ||
| 90541-09117 |
ZVW30 |
4 | ||
| 90541-09138 |
ZVW30..ARL,EUR |
4 | ||
| 90541-09124 |
ZVW30..ARL,EUR |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-47070 |
ZVW30..ARL,EUR |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-47030 |
ZVW30..ARL,EUR |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-47030 |
ZVW30..ARL,EUR |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-47030 |
ZVW30..ARL,EUR |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-47030 |
ZVW30..ARL,EUR |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-47070 |
ZVW30..ARL,EUR |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-47060 |
ZVW30..ARL,EUR |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-47030 |
ZVW30..ARL,EUR |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-47030 |
ZVW30..ARL,EUR |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
ZVW30..ARL,EUR |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZVW30..ARL,EUR |
13 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52030 |
ZVW30..ARL,EUR |
2 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZVW30..ARL,EUR |
13 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
ZVW30..ARL,EUR |
2 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 90467-05017C0 |
ZVW30..ARL,EUR BLACK |
4 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-47040 |
ZVW30..ARL,EUR |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-47030 |
ZVW30..ARL,EUR |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-47070 |
ZVW30 *UVCT,T=3.5,GREEN |
1 | ||
| 68101-47080 |
ZVW30 *UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE |
1 | ||
| 68101-47081 |
ZVW30..EUR *UVCT,T=3.5,GREEN,EUROPE SUPERLATIVE PACKAGE |
1 | ||
| 68101-47080 |
ZVW30..EUR *UVCT,T=3.5,GREEN,EUROPE SUPERLATIVE PACKAGE |
1 | ||
| 68101-47082 |
ZVW30..EUR *UVCT,T=3.5,GREEN,EUROPE SUPERLATIVE PACKAGE |
1 | ||
| 68101-47081 |
ZVW30..ARL,EUR *UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE |
1 | ||
| 68101-47071 |
ZVW30..ARL,EUR *UVCT,T=3.5,GREEN |
1 | ||
| 68101-47072 |
ZVW30..ARL,EUR *UVCT,T=3.5,GREEN |
1 | ||
| 68101-47082 |
ZVW30..ARL,EUR *UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-47081 |
ZVW30..EUR *UVCT,T=3.5,GREEN,EUROPE SUPERLATIVE PACKAGE |
1 | ||
| 68102-47082 |
ZVW30..ARL,EUR *UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE |
1 | ||
| 68102-47080 |
ZVW30 *UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE |
1 | ||
| 68102-47070 |
ZVW30 *UVCT,T=3.5,GREEN |
1 | ||
| 68102-47071 |
ZVW30..ARL,EUR *UVCT,T=3.5,GREEN |
1 | ||
| 68102-47080 |
ZVW30..EUR *UVCT,T=3.5,GREEN,EUROPE SUPERLATIVE PACKAGE |
1 | ||
| 68102-47082 |
ZVW30..EUR *UVCT,T=3.5,GREEN,EUROPE SUPERLATIVE PACKAGE |
1 | ||
| 68102-47072 |
ZVW30..ARL,EUR *UVCT,T=3.5,GREEN |
1 | ||
| 68102-47081 |
ZVW30..ARL,EUR *UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-47030 |
ZVW30..ARL,EUR |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-47030 |
ZVW30..ARL,EUR |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-47020 |
ZVW30..ARL,EUR |
1 | ||
| 68610-47021 |
ZVW30..ARL,EUR |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-47021 |
ZVW30..ARL,EUR |
1 | ||
| 68610-47020 |
ZVW30..ARL,EUR |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-47020 |
ZVW30..ARL,EUR |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-47020 |
ZVW30..ARL,EUR |
1 | ||
| 75923B - TAPE, BLACK OUT, NO.2 RH | ||||
| 75975-47020 |
ZVW30..ARL,EUR REFER TO ILLUST. |
1 | ||
| 75924B - TAPE, BLACK OUT, NO.2 LH | ||||
| 75976-47020 |
ZVW30..ARL,EUR REFER TO ILLUST. |
1 | ||
| 75925 - TAPE, BLACK OUT, NO.3 RH | ||||
| 75985-47020 |
ZVW30..ARL,EUR REFER TO ILLUST. |
1 | ||
| 75926 - TAPE, BLACK OUT, NO.3 LH | ||||
| 75986-47020 |
ZVW30..ARL,EUR REFER TO ILLUST. |
1 | ||
| 75927B - TAPE, BLACK OUT, NO.4 RH | ||||
| 75965-47010 |
ZVW30..ARL,EUR REFER TO ILLUST. |
1 | ||
| 75928B - TAPE, BLACK OUT, NO.4 LH | ||||
| 75966-47010 |
ZVW30..ARL,EUR REFER TO ILLUST. |
1 | ||
| 87912A - PROTECTOR, OUTER MIRROR | ||||
| 87912-47020 |
ZVW30..ARL,EUR LH |
1 | ||
| 87912-47010 |
ZVW30..ARL,EUR RH |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-47010 |
ZVW30..ARL,EUR |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-47010 |
ZVW30..ARL,EUR |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90109-T0011 | ||||
| 90119-06983 | ||||
| 90119-T0141 | ||||
| 90119-T0262 | ||||
| 90159-50138 | ||||
| 90189-06227 | ||||
| 90387-08171 | ||||
| 90950-01599 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 91673-80616 | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 7503 | ||||
