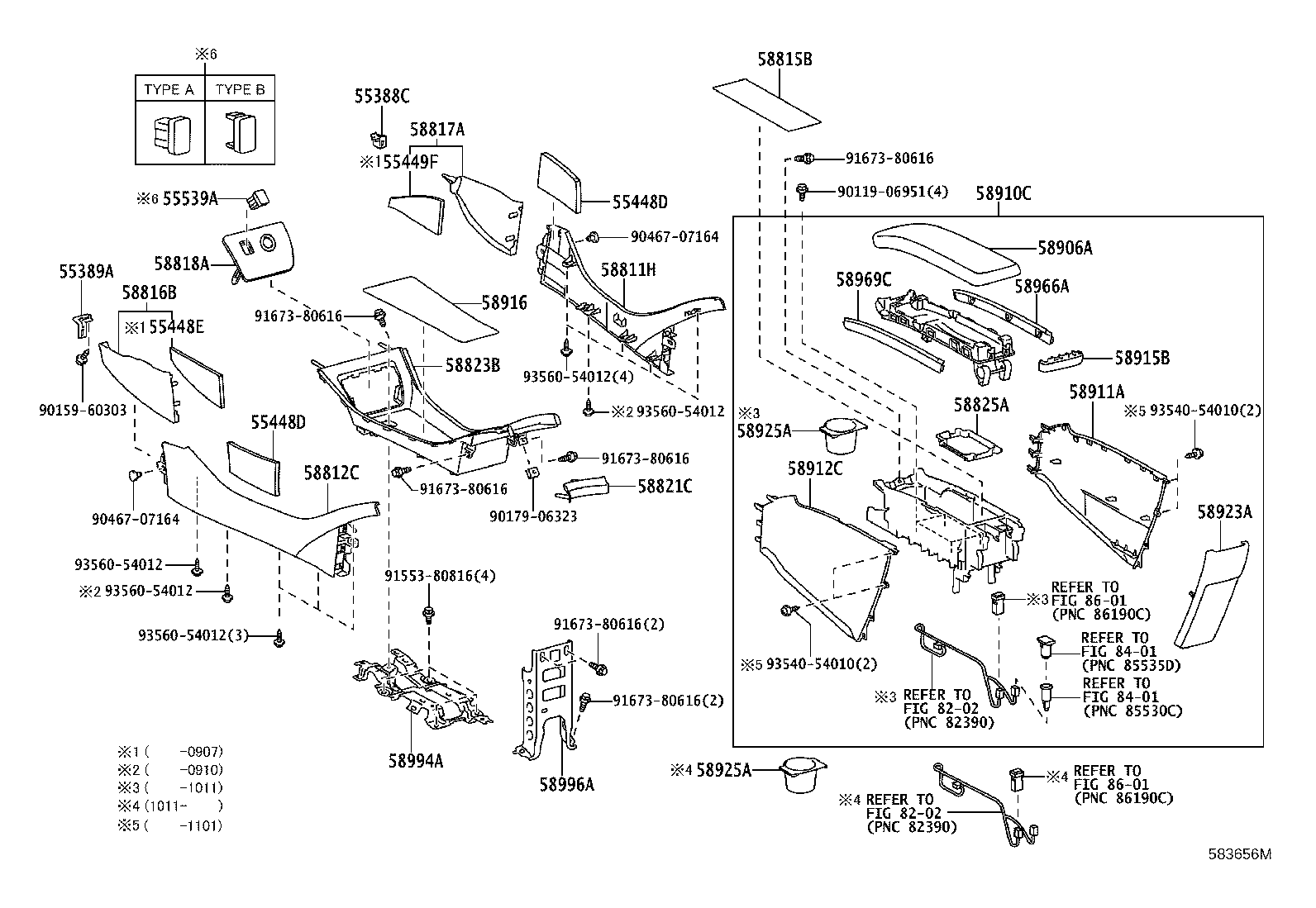

ZVW30L-AHXEBW (2009)
Toyota Prius
(0904-1112)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55388C - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-42010 |
ZVW30..LHD |
1 | ||
| 55389A - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-12040 |
ZVW30..LHD |
1 | ||
| 55448D - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55448-47070 |
ZVW30..ARL,EUR |
2 | ||
| 55448D - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55448-47070 |
ZVW30..ARL,EUR |
2 | ||
| 55448E - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55448-47050 |
ZVW30..LHD |
1 | ||
| 55449F - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55449-47030 |
ZVW30..LHD |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ZVW30..ARL,EUR BLACK,TYPE A:REFER ILLUST. |
1 | ||
| 58811H - BOX, CONSOLE, RH | ||||
| 58811-47010G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 58811-47010B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 58812C - BOX, CONSOLE, LH | ||||
| 58812-47010B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 58812-47010G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 58815B - CARPET, CONSOLE BOX | ||||
| 58815-47030 |
ZVW30..ARL,EUR |
1 | ||
| 58816B - INSERT, CONSOLE BOX | ||||
| 58816-47020B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 58816-47020G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-47020G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 58817-47020B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 58818A - COVER, CONSOLE BOX, FR | ||||
| 58818-47040B0 |
ZVW30..LHD MD.GRAY,TRIM1# |
1 | ||
| 58818-47040G0 |
ZVW30..LHD AQUA,TRIM6# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-47020 |
ZVW30..ARL,EUR |
1 | ||
| 58823B - BOX, CONSOLE COMPARTMENT | ||||
| 58823-47020G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 58823-47020B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-47020 |
ZVW30..ARL,EUR |
1 | ||
| 58906A - PAD SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58906-47020B2 |
ZVW30..ARL,EUR SEAT COVER MATERIAL-NATURAL LEATHER,MIST GRAY,TRIM6# |
1 | ||
| 58906-47010B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 58906-47020B1 |
ZVW30..ARL,EUR SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 58906-47010B1 |
ZVW30..ARL,EUR MIST GRAY,TRIM6# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58901-47110B2 |
ZVW30 SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 58901-47090B2 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 58901-47090B2 |
ZVW30 MD.GRAY,TRIM1# |
1 | ||
| 58901-47110B2 |
ZVW30 SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 58901-47112B3 |
ZVW30..ARL,EUR SEAT COVER MATERIAL-NATURAL LEATHER,MIST GRAY,TRIM6# |
1 | ||
| 58901-47090B3 |
ZVW30 MIST GRAY,TRIM6# |
1 | ||
| 58901-47110B3 |
ZVW30 SEAT COVER MATERIAL-NATURAL LEATHER,MIST GRAY,TRIM6# |
1 | ||
| 58901-47092B3 |
ZVW30..ARL,EUR MIST GRAY,TRIM6# |
1 | ||
| 58901-47090B3 |
ZVW30 MIST GRAY,TRIM6# |
1 | ||
| 58901-47112B2 |
ZVW30..ARL,EUR SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1# |
1 | ||
| 58901-47110B3 |
ZVW30 SEAT COVER MATERIAL-NATURAL LEATHER,MIST GRAY,TRIM6# |
1 | ||
| 58901-47092B2 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 58911A - PANEL, BOX SIDE, NO.1 | ||||
| 58911-47030B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 58911-47030G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-47040G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 58912-47040B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 58915B - COVER, CONSOLE COMPARTMENT DOOR BOX, REAR | ||||
| 58915-47010B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 58915-47010G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-47010B0 |
ZVW30..ARL,EUR GRAY,TRIM6# |
1 | ||
| 58916-47010B1 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-47020B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 58923-47020G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 58925A - POCKET, CONSOLE BOX, REAR | ||||
| 58925-47010 |
ZVW30..ARL,EUR |
1 | ||
| 58925A - POCKET, CONSOLE BOX, REAR | ||||
| 58925-47010 |
ZVW30..ARL,EUR |
1 | ||
| 58966A - INSERT, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58966-47010B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 58966-47010G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 58969C - INSERT, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58969-47010G0 |
ZVW30..ARL,EUR AQUA,TRIM6# |
1 | ||
| 58969-47010B0 |
ZVW30..ARL,EUR MD.GRAY,TRIM1# |
1 | ||
| 58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4 | ||||
| 58994-47010 |
ZVW30..ARL,EUR |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-47020 |
ZVW30..ARL,EUR |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60303 | ||||
| 90179-06323 | ||||
| 90467-07164 | ||||
| 91553-80816 | ||||
| 91673-80616 | ||||
| 93540-54010 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
| 8601 | ||||
