NHW20R-AHEEBW (2003)

Toyota Prius

Production Aug 2003 - Nov 2005
Engine 1NZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

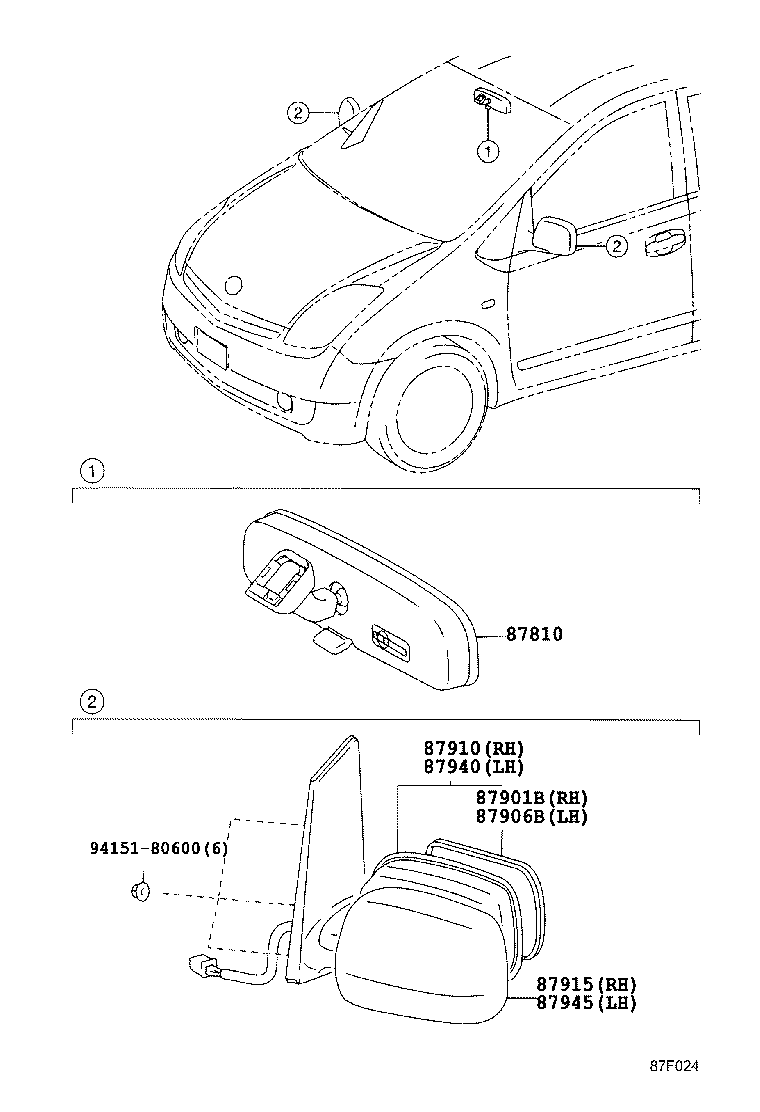

Click highlighted areas on diagram

diagram 87810 87901B 87906B 87910 87915 87940 87945 9415180600
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-52040

NHW20

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-47120

NHW20..RHD..EUR

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-47120

NHW20..RHD

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-47120

NHW20..RHD..EUR

NO PAINT REQ.

 1
87910-47121

NHW20..RHD..EUR

NO PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-68010A1

NHW20

SUPER WHITE 2,040

 1
87915-68010B3

NHW20

SILVER ME.,1C0

 1
87915-68010E0

NHW20

BRONZE M.M.,4S2

 1
87915-68010J3

NHW20

BLUE M.M.,8S2

 1
87915-68010G0

NHW20

JADE GREEN M.M.,6S9

 1
87915-68010C1

NHW20

BLACK,202

 1
87915-68010D2

NHW20

DK. RED M.M.,3Q3

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-47120

NHW20..RHD

NO PAINT REQ.

 1
87940-47121

NHW20..RHD

NO PAINT REQ.

 1
87945 - COVER, OUTER MIRROR, LH
87945-68010B3

NHW20

SILVER ME.,1C0

 1
87945-68010A1

NHW20

SUPER WHITE 2,040

 1
87945-68010C1

NHW20

BLACK,202

 1
87945-68010E0

NHW20

BRONZE M.M.,4S2

 1
87945-68010G0

NHW20

JADE GREEN M.M.,6S9

 1
87945-68010D2

NHW20

DK. RED M.M.,3Q3

 1
87945-68010J3

NHW20

BLUE M.M.,8S2

 1
Common parts
94151-80600
