NHW20R-AHEEBQ (2003)
Toyota Prius
Production
Aug 2003
-
Nov 2005
Engine
1NZFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0308- )RHD

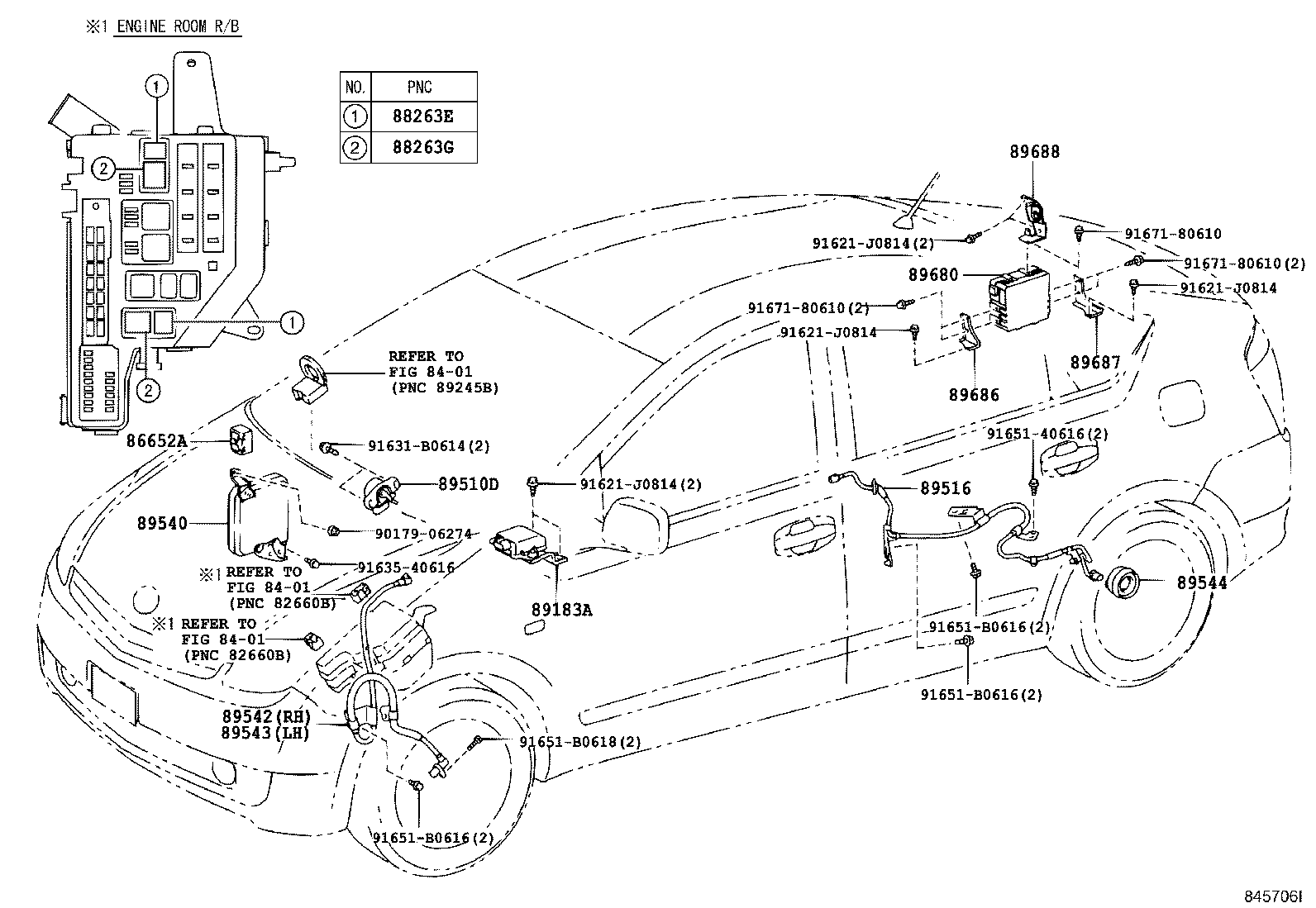

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-20010 |
NHW20 |
1 | ||
| 88263E - RELAY, SKID CONTROL NO.2 | ||||
| 88263-32070 |
NHW20 |
2 | ||
| 88263G - RELAY, SKID CONTROL | ||||
| 88263-21010 |
NHW20 |
2 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89180-47010 |
NHW20..ARL W(VSC) |
1 | ||
| 89510D - SENSOR ASSY, BRAKE PEDAL STROKE | ||||
| 89510-47020 |
NHW20..RHD |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-47050 |
NHW20 RH |
1 | ||
| 89516-47060 |
NHW20 LH |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-47050 |
NHW20..RHD |
1 | ||
| 89540-47090 |
NHW20..RHD |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-47020 |
NHW20 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-47020 |
NHW20 |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-20010 |
NHW20 |
2 | ||
| 89680 - SUPPLY ASSY, BRAKE CONTROL POWER | ||||
| 89680-47020 |
NHW20 |
1 | ||
| 89680-47010 |
NHW20 |
1 | ||
| 89686 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1 | ||||
| 89686-47010 |
NHW20 |
1 | ||
| 89687 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2 | ||||
| 89687-47010 |
NHW20 |
1 | ||
| 89688 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.3 | ||||
| 89688-47010 |
NHW20 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91621-J0814 | ||||
| 91631-B0614 | ||||
| 91635-40616 | ||||
| 91651-40616 | ||||
| 91651-B0616 | ||||
| 91651-B0618 | ||||
| 91671-80610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
